The BM 7608 is a dedicated emergency microphone console designed for use with the DXT 7000 Voice Alarm system. It supports both live announcements and activation of pre-recorded messages. The unit features a high-quality cardioid electret microphone and a numeric keypad for intuitive operation. With full self-diagnostic capability and system status reporting, it ensures compliance with EN 54-16 standards. Up to 8 BM 7608 units can be daisy-chained per paging bus, allowing for a maximum of 32 consoles across the system. The console also supports priority settings, chime tone generation, and configurable buttons for versatile emergency communication.
Features
Live emergency announcements
Pre-recorded messages activation
Complete self-diagnostic system

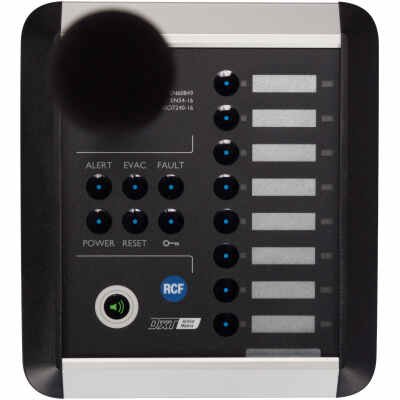

Numeric keyboard for operation
Hi-quality cardioid microphone
Modern and compact design
Supports daisy-chaining up to 8 consoles per bus
Specifications
| Microphone type | Electret |
| Microphone directivity | Cardioid |
| Frequency response (-3 dB) | 50 Hz ÷ 17 kHz |
| Total harmonic distortion @ 1 kHz | 0.10 % |
| Console type | Emergency |
| Compatible system | DXT 7000 |
| General call | Yes |
| Selective call | Yes |
| Preamplified | Yes |
| Configurable buttons | Yes |
| LED indicators | Yes |

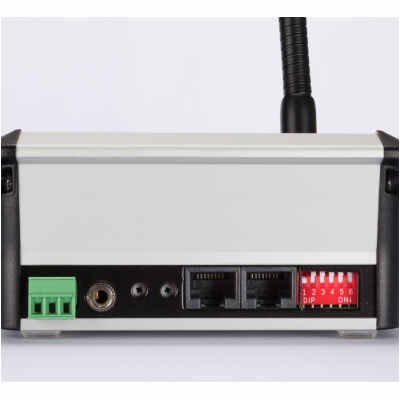

| Connectors | RJ45 |
| Cable type | FTP CAT 5 |
| Daisy-chain support | Yes |
| Max units in daisy-chain | 8 |
| Interlock | Yes |
| Priority | Yes |
| Chime tone generator | Yes |
| Cable included | Yes |
| Cable length | 5 m |
| CE compliant | Yes |
| EN54-16 certified | Yes |
| CPR number | 1438-CPR-1093 |
| Cabinet material | Metal |
| Height | 55 mm / 2.17 inches |
| Width | 126 mm / 4.96 inches |
| Depth | 135 mm / 5.31 inches |
| Weight | 0.5 kg / 1.1 lbs |
| Package weight | 1 kg / 2.2 lbs |
