Description

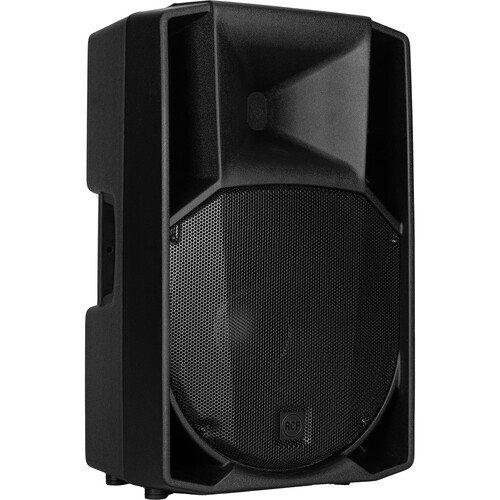

The ART 745-A MK5 is RCF’s flagship model in its category, offering unmatched audio clarity, power, and efficiency. Equipped with a titanium dome 4″ voice coil compression driver and a 15” neodymium woofer, this speaker ensures deep, precise bass and exceptional vocal projection. The Class-D amplifier delivers 1400W peak power with ultra-fast response and high thermal efficiency thanks to its aluminum heat dissipation design. Featuring FiRPHASE filters and XBOOST low-frequency enhancer, it offers phase-coherent sound distribution and enhanced bass output. Built with a rugged polypropylene cabinet, ergonomic handles, and a floor monitor shape, the ART 745-A MK5 is the ideal choice for touring musicians and audio professionals demanding premium performance and reliability.



Features



  • 133 dB Max SPL

  • 1400 WATT 2-way peak power

  • 90° x 60° wide dispersion constant directivity horn

  • Innovative DSP Processing

  • 4″ Compression Neodymium Driver with Titanium diaphragm

  • 15″ Neodymium Woofer

  • FiRPHASE Technology

  • XBOOST Low Frequencies Enhancer

  • Advanced Class-D amplifier with fan-less convection cooling

  • Rugged polypropylene composite cabinet with multiple handles

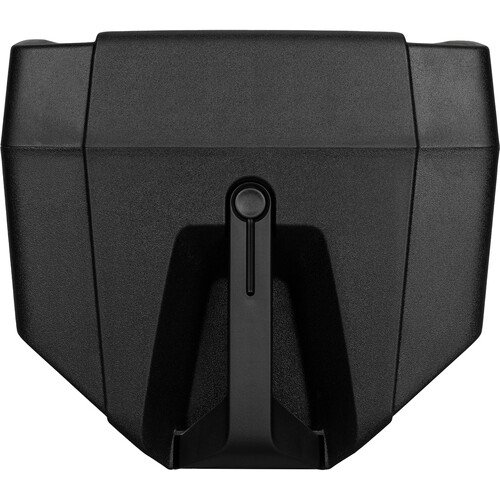

  • Floor monitor-ready design with steel grille



Specifications



Frequency Response 45 Hz ÷ 20000 Hz
Max SPL @ 1m 133 dB
Horizontal Coverage 90°
Vertical Coverage 60°
Compression Driver 1 x 1.4” neo, 4.0” v.c
Woofer 1 x 15” neo, 3.5” v.c
Input Signal balanced/unbalanced
Input Connectors XLR, Jack
Output Connectors XLR
Input Sensitivity -2 dBu/+4 dBu
Mic Input Sensitivity -32 dBu
Crossover Frequencies 650 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Volume, Boost, MIC/Line
Total Power 1400 W Peak
High Frequencies 400 W Peak
Low Frequencies 1000 W Peak
Cooling Convection
Power Connection VDE
Safety Compliance CE compliant
Cabinet Material PP Composite
Hardware 2 x M10
Handles 1 on top, 1 each side
Pole Mount 35 mm insert
Grille Steel
Color Black
Height 708 mm / 27.87 inches
Width 437 mm / 17.2 inches
Depth 389 mm / 15.31 inches
Weight 18.8 kg / 41.45 lbs
Package Height 750 mm / 29.53 inches
Package Width 500 mm / 19.69 inches
Package Depth 440 mm / 17.32 inches
Package Weight 22 kg / 48.5 lbs
