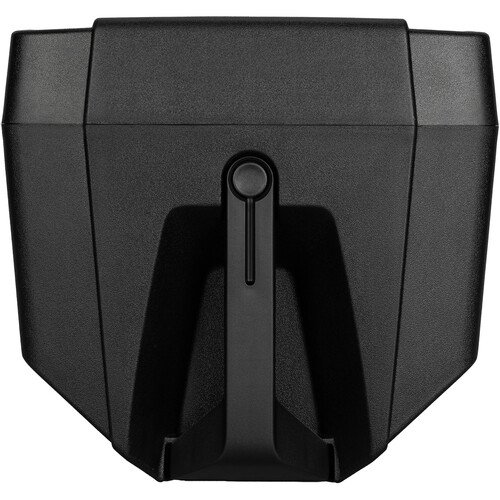

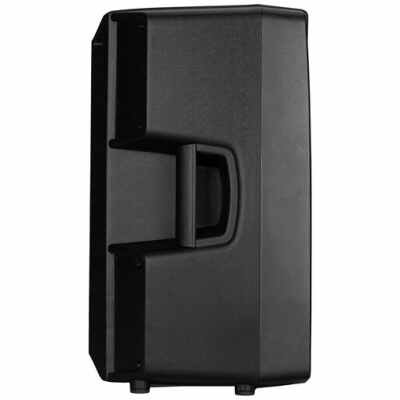

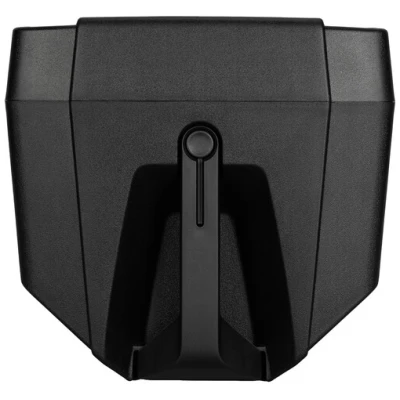

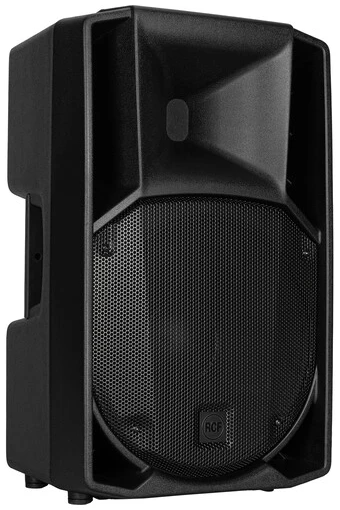

The ART 712-A MK5 sets a new benchmark for high-output portable speakers with its 12” woofer and 1.75” compression driver, delivering crystal-clear highs and deep, tight bass. With a peak power of 1400W, it’s built around a highly efficient Class-D amplifier supported by RCF’s precision-engineered DSP. This processor handles crossover, equalization, phase alignment, and dynamic limiting, ensuring stable performance in any live sound environment. The speaker’s XBOOST feature enhances low frequencies for an immersive sound experience, while FiRPHASE filtering ensures time-aligned output with zero phase distortion. Enclosed in a rugged, vibration-resistant PP composite cabinet, the ART 712-A MK5 is ideal for musicians, DJs, and event professionals who demand reliable, high-fidelity performance on every stage.
Features
129 dB Max SPL
1400 W 2-way peak power
90° x 60° wide dispersion constant directivity horn
1.75″ compression driver for vocal clarity
12″ high-output woofer with deep low-frequency control
FiRPHASE technology for linear sound and minimum latency
XBOOST for enhanced low-frequency response
Advanced DSP processing: crossover, EQ, soft limiting, protections
Rugged PP composite enclosure with multiple handle positions
Ideal for portable use or fixed installations
Specifications
| Frequency Response | 50 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 129 dB |
| Horizontal Coverage | 90° |
| Vertical Coverage | 60° |
| Compression Driver | 1 x 1.0”, 1.75” v.c |
| Woofer | 1 x 12”, 2.5” v.c |
| Input Signal | Balanced / Unbalanced |
| Input Connectors | XLR, Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Mic Input Sensitivity | -32 dBu |
| Crossover Frequency | 1600 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Boost, MIC/Line |
| Total Power | 1400 W Peak |
| High Frequencies Power | 400 W Peak |
| Low Frequencies Power | 1000 W Peak |
| Cooling | Convection |
| Power Connections | VDE |
| Cabinet Material | PP Composite |
| Hardware | 2 x M10 |

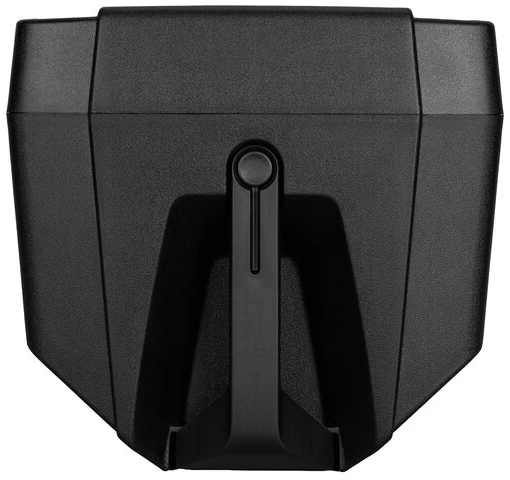

| Handles | 1 on top, 1 on each side |
| Pole Mount | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Height | 637 mm / 25.08 inches |
| Width | 387 mm / 15.24 inches |
| Depth | 363 mm / 14.29 inches |
| Weight | 17.8 kg / 39.24 lbs |
| Package Height | 680 mm / 26.77 inches |
| Package Width | 440 mm / 17.32 inches |
| Package Depth | 420 mm / 16.54 inches |
| Package Weight | 20.6 kg / 45.42 lbs |
| Safety Compliance | CE compliant |
