Description

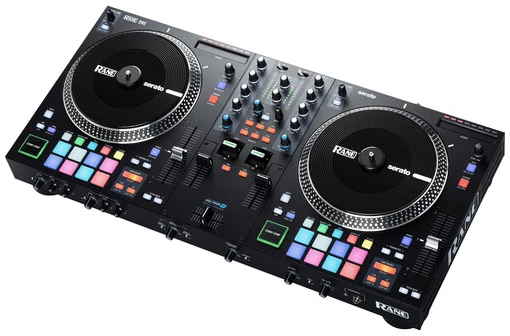

DJs and performing artists yearning for a professional motorized DJ controller will be thrilled by the RANE ONE, a complete DJ solution based around RANE’s intuitive performance layout with full integration with the included Serato DJ Pro. The RANE ONE embodies all the trusted hallmarks of RANE’s build quality and intricate DNA to bring the art of DJing in a digital world to a wider audience of DJs.

The ONE incorporates two 7.2″ motorized turntable platters for a traditional vinyl feeling, complete with customizable (low/high) torque settings. The unit provides an authentic, tactile control over your music and performance with the foundation art of DJing at its very core, including a traditional turntable plunger style start/stop button.

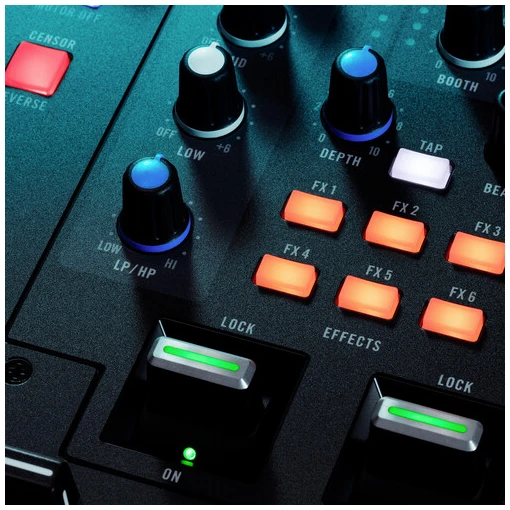

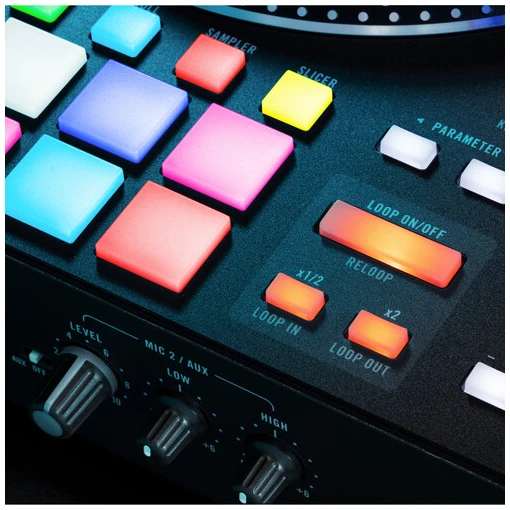

Other notable features include 8 multicolor velocity-sensitive performance pads per deck, each assignable to Hot Cues, Saved Loops, Roll, Sampler, Slicer, and Serato’s Scratch Bank feature. There are six radio-style FX buttons, which can be activated in any combination. Each channel offers a 3-band dynamic EQ and high/low pass filters, as well as dedicated loop controls.



FEATURES

  • 7.2″ Motorized Platters
  • Quick Release Acrylic Disks
  • Instant Access FX with 2 FX Paddles

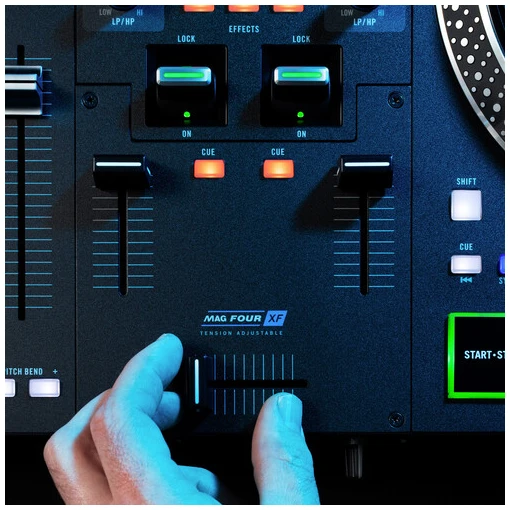

  • MAG FOUR Crossfader
  • Dual USB for Seamless Back-to-Back Perf
  • Dedicated Loop Controls + 3-Band EQ
  • Two Stereo RCA CD/Phono Inputs + Aux
  • Two Combo XLR-1/4″ Mic Inputs
  • 16 Performance Pads
  • Includes Serato DJ Pro



SPECIFICATIONS

Key Specs
Configuration
Dual-Deck
Number of Channels
2x Stereo
Performance Controls
Beat Sync, Brake, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Master Tempo, Pitch Bend, Pitch Control, Reverse, Sampler, Scratch, Search, Transport Controls, Vinyl Mode

Built-In Effects
No
Sample Rates
48 kHz (AD/DA Conversion)
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
No
Audio Inputs
2x Combo XLR-1/4″ 3-Pin Balanced Mic Input
2x Stereo 2RCA Coaxial Unbalanced Line/Phono Input
1x Stereo 2RCA Coaxial Unbalanced Aux Input
Audio Outputs
4x XLR 3-Pin Balanced Booth/Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output
1x 1/4″ TRS Headphone Output
1x 1/8″ / 3.5 mm TRS Headphone Output

USB
2x USB-B 2.0 (Host Connection)



Number of Channels
2x Stereo
Platter/Jog Wheel
2x 7.2″ / 18.3 cm Touch-Sensitive
Motorized Platters
Yes
Faders
2x Channel Level
2x Tempo/Pitch
1x Crossfader
Display
No
Sample Pads
8x Assignable per Deck (Velocity-Sensitive)
EQ
2x Channel EQ:
Hi
Mid
Low
Performance Controls
Beat Sync, Brake, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Master Tempo, Pitch Bend, Pitch Control, Reverse, Sampler, Scratch, Search, Transport Controls, Vinyl Mode
Built-In Effects
No
Sample Rates
48 kHz (AD/DA Conversion)
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
No



Connectivity
Audio Inputs
2x Combo XLR-1/4″ 3-Pin Balanced Mic Input
2x Stereo 2RCA Coaxial Unbalanced Line/Phono Input
1x Stereo 2RCA Coaxial Unbalanced Aux Input
Audio Outputs
4x XLR 3-Pin Balanced Booth/Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output
1x 1/4″ TRS Headphone Output
1x 1/8″ / 3.5 mm TRS Headphone Output
USB
2x USB-B 2.0 (Host Connection)
Wireless
No
Media Card Slots
No
Internal Drive Bays
No



Performance
Input Level
XLR Mic:
110 mV
Stereo RCA Aux/CD:
4 Vrms
Stereo RCA Phono:
106 mV (RIAA)
Output Level
XLR Booth/Master:
8 Vrms
Stereo RCA Master:
4 Vrms
Headphone:
108 dB
Headphone Output Power
1/4″:
50 mW per Channel into 50 Ohms
1/8″ / 3.5 mm:
50 mW per Channel into 50 Ohms
Dynamic Range
AD/DA Conversion:
113 dB
Stereo RCA Line:
110 dB
System:
113 dB
THD+N
Stereo RCA Aux/CD/Line/Master:
0.004%



Compatibility
Included Software
Serato DJ Pro Hardware Unlock
Compatible Software (Not Included)
Serato DJ DVS
Algoriddim djay Pro
OS Compatibility
Computer: Windows / macOS
Mobile: Android/iOS via Optional Adapter
OS Compatibility
Windows
macOS
Mobile App Compatible
Yes, Adapter Required (Not Included): Android & iOS
App Name: algoriddim djay Pro
Functionality: Access Stored Files
Mobile Device Compatibility
iPhone
iPad
Required Hardware
USB 2.0 Port
Internet Connection
Required for Registration, Software/Driver Download



Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power I/O
IEC Input
Power Consumption
50 W



Physical
Dimensions (W x D x H)
26.5 x 13.6 x 4.9″ / 673.1 x 345.4 x 124.5 mm
Weight
23.55 lb / 10.68 kg



Packaging Info
Package Weight
34.51 lb
Box Dimensions (LxWxH)
32.38 x 18.75 x 11″
