Delivering unmatched power, flexibility, and efficiency, the Parasound ZM12 is a 12-channel, 6-zone amplifier designed for large-scale audio installations. Built to handle complex, multi-room systems, the ZM12 packs robust power into a compact 2RU chassis, making it perfect for custom installations, commercial audio, or multi-zone residential systems.
Combining a Class AB input stage with premium Class D output modules, the ZM12 is stable down to 2 Ω and engineered for both performance and reliability. It offers independent level control for each channel, A/B speaker outputs (up to 24), and multiple trigger and input options to integrate seamlessly into any automation or distribution system. Each zone supports its own auto-on trigger and can switch between stereo or summed mono, giving installers flexible control over how the system is configured.
Whether you’re powering a home theater, restaurant, retail space, or whole-home audio system, the Parasound ZM12 delivers consistent, high-performance sound with minimal heat, low power consumption, and exceptional build quality.
Features of Parasound ZM12
- 12 independent channels across 6 zones — supports multi-room installations
- High-power Zone 1 (channels 1 & 2) — 120 W into 8 Ω, 150 W into 4 Ω or 2 Ω
- Lower-powered zones (2–6) — 60 W into 8 Ω, 100 W into 4 Ω or 2 Ω

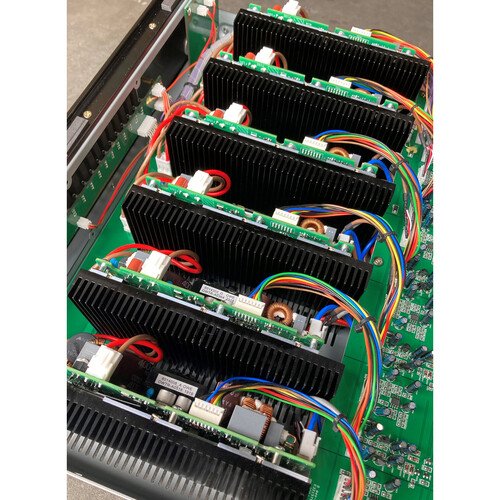

- Class AB input + Class D output — efficiency + clean sound

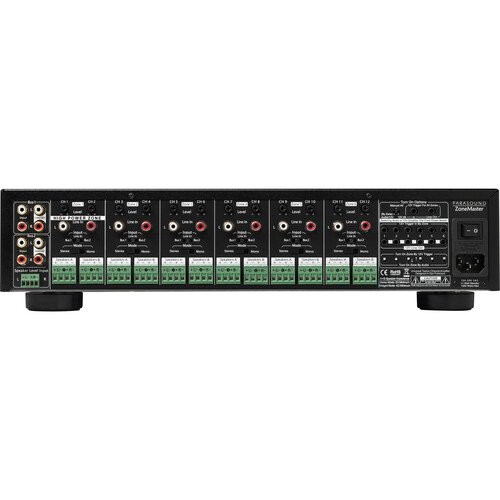

- 2 way speaker outputs (A/B) — up to 24 speaker terminals for flexible wiring
- Per-zone 12 V triggers + audio-sensing — automation-friendly
- Speaker-level input — integrates with systems without preamp outputs
- Summed Mono mode — ideal for single-speaker zones
- Short-circuit & overheat protection — with front-panel indicators
- Low standby power — only 0.5 W, energy efficient
- Compact 2RU chassis — saves rack space while offering 12 channels
Specifications of Parasound ZM12
| Specification | Details |
|---|---|
| Model | Parasound ZM12 |
| Channels / Zones | 12 channels / 6 zones |
| Power Output (Zone 1 – Ch. 1 & 2) | 120 W ×2 @ 8 Ω; 150 W × 2 @ 4 Ω or 2 Ω |
| Power Output (Zones 2–6 – Ch. 3–12) | 60 W ×10 @ 8 Ω; 100 W ×10 @ 4 Ω or 2 Ω |
| Minimum Speaker Impedance | 2 Ω (A + B outputs) |
| Amplifier Architecture | Class AB input + Class D output |
| Frequency Response | 20 Hz – 20 kHz, +0 / –0.25 dB; 5 Hz – 50 kHz, +0 / –3 dB |
| Total Harmonic Distortion (THD) | < 0.05% at typical listening; < 1.0% at full power |
| Interchannel Crosstalk | ~70 dB @ 20 kHz |
| Total Gain | 29 dB (level controls at max) |
| Signal-to-Noise Ratio (SNR) | > 112 dB (IHF A-weighted, input shorted) |
| Trigger Options | 6 × 12 V DC inputs, 6 × looping 12 V outputs, master 12 V trigger, audio-sense per zone |
| Input Options | RCA line-level bus 1 & 2, speaker-level input |
| Output Mode | Stereo / Mono per zone (summed mono) |
| Protection | Overheat & short-circuit, front-panel indicators |
| Power Consumption | Max: ~1,550 W; Typical (all zones active): ~150 W; Idle (all zones): ~55 W; One zone: ~15 W; Standby: ~0.5 W |
| AC Voltage | 100 – 250 VAC, 50/60 Hz (auto-switching) |
| Dimensions (W × H × D) | 437 mm × 89 mm × 369 mm (2RU) |
| Depth with Cables | 406 mm approx. |
| Weight | 9.5 kg / 21 lbs net |
