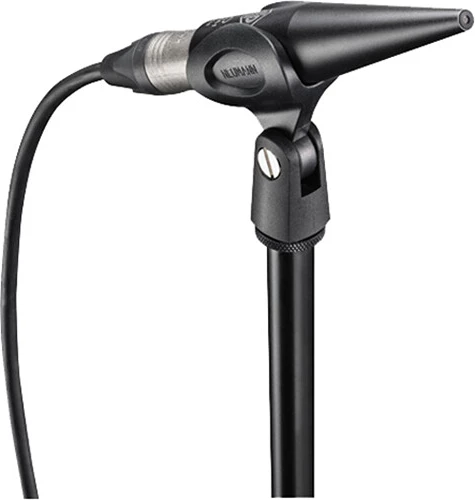

Neumann MA 1 Monitor Alignment Microphone & Calibration System for Studio Monitors
Neumann MA 1 Monitor Alignment Microphone & Calibration System for Studio Monitors
Share
Compare Wishlist

Neumann MA 1 Monitor Alignment Microphone & Calibration System for Studio Monitors

Brand : Neumann
Sku: MA 1

AED 985.95 inc VAT

Available in stock

The Neumann MA 1 Monitor Alignment Microphone and Calibration System is designed to help engineers, musicians, and producers get more accurate and sonically consistent mixes from their Neumann KH 80 DSP monitors or non-DSP KH-Series monitors when used with the KH 750 DSP subwoofer. The system uses an omnidirectional measurement mic and a downloadable software for Mac and Windows with Fraunhofer IIS algorithms to calibrate and adjust the phase and amplitude of the speakers to compensate for room imperfections.The system is easy to use; simply connect the balanced outputs of your audio interface or monitor controller to your KH monitors. Connect the ethernet ports of your DSP-based monitors into a network switcher (available separately) and then route the switcher output into your computer. Plug the calibration mic into a mic input on your interface (48V phantom power is required) and follow the calibration process in your software. An SG105 mic clip is included to mount the microphone to a stand.
EAN: 615104354548
Compare Wishlist
Category: Brand:
Description

The Neumann MA 1 is a precision monitor alignment microphone and calibration system designed to optimize the performance of Neumann studio monitors. Using advanced measurement technology and intuitive software, it analyzes room acoustics and automatically adjusts monitor settings for accurate frequency response and stereo imaging. Ideal for professional studios, home recording setups, and post-production environments, the MA 1 ensures consistent and reliable monitoring conditions. The included measurement microphone captures detailed acoustic data, allowing the system to correct room-related issues effectively. With seamless integration into Neumann monitoring systems, the MA 1 delivers improved clarity, balance, and translation in any listening environment.

Features

  • Precision measurement microphone with calibration system
  • Automatic room alignment and acoustic correction
  • Optimizes frequency response and stereo imaging
  • Designed for Neumann studio monitor systems
  • Easy-to-use software-guided calibration process
  • Improves mix accuracy and monitoring consistency
  • Ideal for studio, broadcast, and post-production environments
  • Compact and portable design

Specifications

Microphone
Form FactorStand/Boom Mount
Sound FieldMono
Operating PrinciplePressure Operated
Capsule1 x Electret Condenser
Polar PatternOmnidirectional
High-Pass FilterNone
Gain AdjustmentYes
WindscreenFoam (Available Separately)
Performance
Frequency Range20 Hz to 20 kHz
Maximum SPL132 dB SPL
Impedance50 Ohms
Load Impedance1000 Ohms
Sensitivity30 mV/Pa
Signal-to-Noise Ratio67 dB A-Weighted
Equivalent Noise Level27 dB A-Weighted
THD0.5%
Connectivity
Headphone ConnectorNone
Power
Operating Voltage48 V ± 4 V
Operating Current Consumption3 mA
Physical
ColorBlack
MountingMic Clip/Stand Adapter (Included)
Operating Temperature32 to 158°F / 0 to 70°C
Operating Humidity90%
Storage Temperature-4 to 158°F / -20 to 70°C
Dimensionsø: 0.9 x L: 4.6″ / ø: 23 x L: 117 mm
Weight1.3 oz / 37 g
Packaging Info
Package Weight0.42 lb
Box Dimensions (LxWxH)7 x 3.75 x 3.75″
