Lyngdorf BW-2 High-Performance Active Subwoofer with Wide Bandwidth

The active BW-2 is designed as a high bandwidth subwoofer with the objective of reproducing music and soundtracks with full dynamics and precision. The minimalistic – ‘form follows function’ design ensures that all resources are focused on the best possible sound reproduction.

The frequency range of the BW-2 goes up to 800 Hz in “bypass” mode, in contrast to traditional subwoofers, which are typically limited to 120 Hz. In other words, this is a driver that follows the signal with extreme precision. It therefore can actually play music and not just the low-end rumble and explosions of an action movie.

Easy to integrate

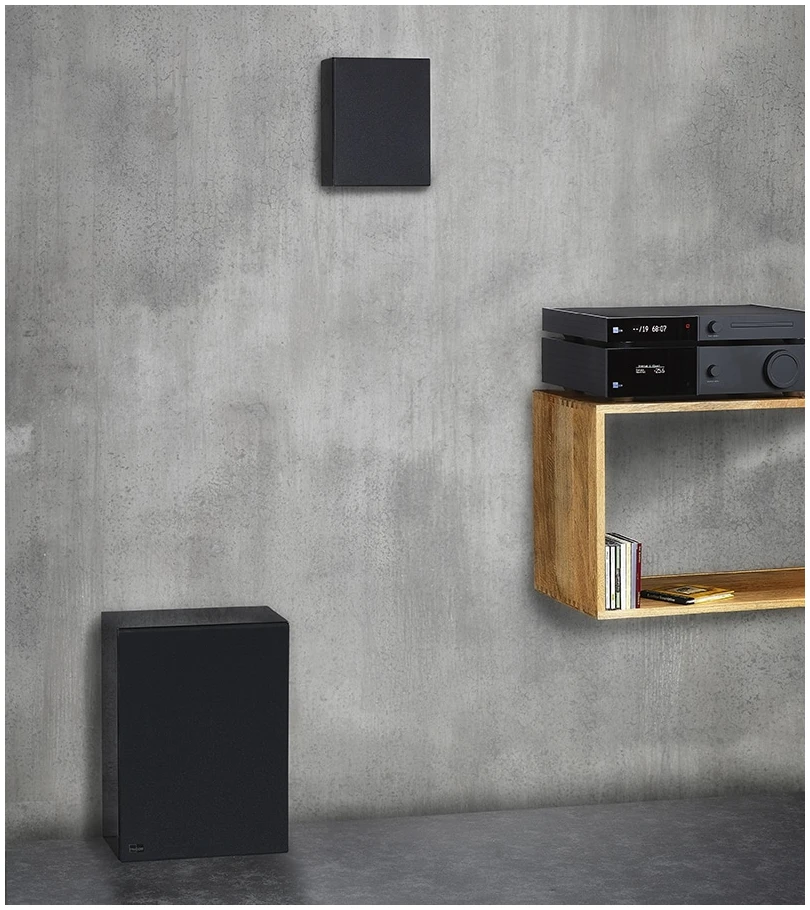

The BW-2 is designed with a focus on discretion. Available in high-gloss black or matte white – allowing for seamless integration in any contemporary interior. It can be positioned standing upright or on the side in order to fit into the available space. This also makes it the perfect match for any stereo or home cinema system.

Refined Class D power

The internal amplifier is our own Class-D design based on our more than 15 years of experience in designing audiophile Class-D amplifiers. With an output of 400 watts it can deliver ample power to control the driver even at extreme levels.

More than a subwoofer

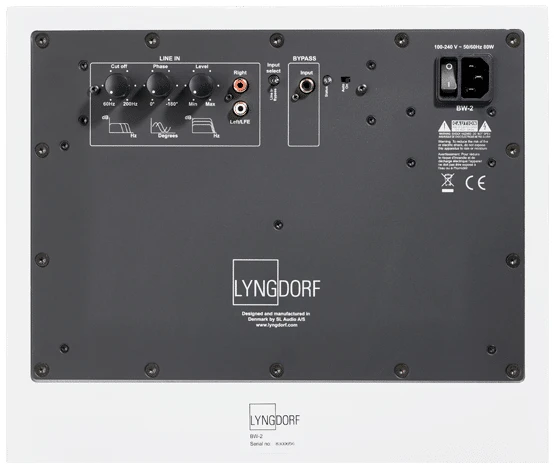

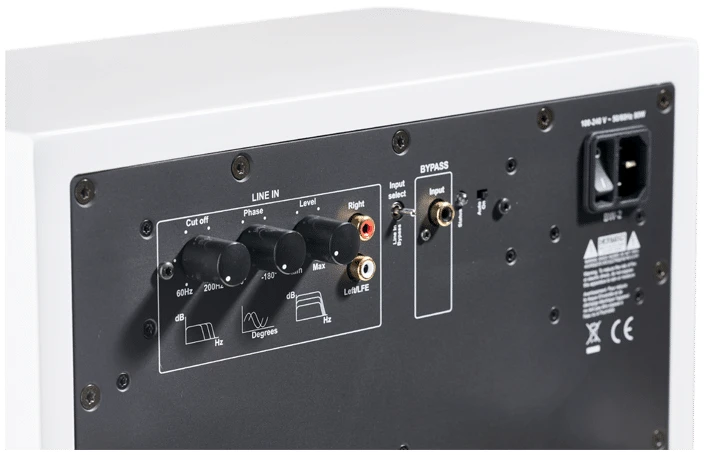

The BW-2 has two input modes. If you set it to “Line in,” it can be used with conventional amplifiers and processors and has a frequency range from 25 to 200 Hz. As with regular subwoofers, you have control over level, frequency range, and phase adjustment.vIf you have a Lyngdorf Audio amplifier, you can bypass the internal filters. Now the frequency range goes up to 800 Hz, and you can use the BW-2 as a boundary woofer to lift the performance of your system to a new level.

FEATURES

High-Fidelity Audio Performance

• Wide Frequency Response: Delivers a frequency range from 25 Hz to 200 Hz when using the line-in input, and extends up to 800 Hz in bypass mode, allowing for precise midrange reproduction.

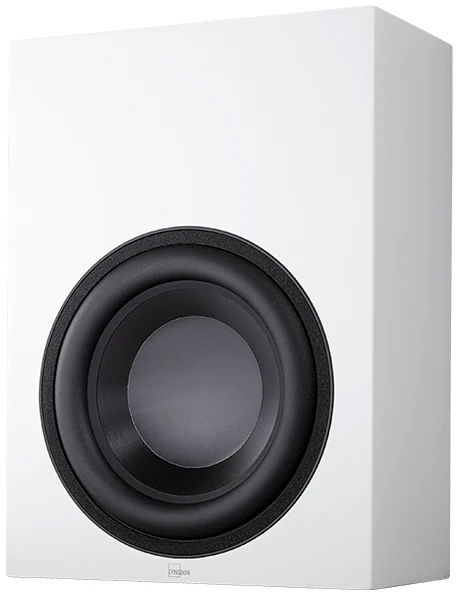

• Long-Throw 10″ Driver: Equipped with a 10-inch deep anodized aluminum cone and a 50mm voice coil, the BW-2 ensures accurate and dynamic bass reproduction.
• High SPL Capability: Achieves a maximum SPL of 106 dB RMS (measured using the THX method between 40-80 Hz), providing powerful bass output suitable for various listening environments.

Advanced Amplification & Connectivity

• 400W Class-D Amplifier: Features a 400-watt RMS Class-D amplifier, designed by Lyngdorf Audio, delivering efficient power and minimal distortion for clean bass performance.
• Flexible Input Options: Includes an RCA analog mono input with an input sensitivity of 2V, allowing for easy integration with various audio systems.

Design & Integration

• Compact Enclosure: The BW-2 features a closed MDF cabinet with a volume of 14 liters, measuring 44 x 32.5 x 17.2 cm, making it suitable for discreet placement in home audio setups.

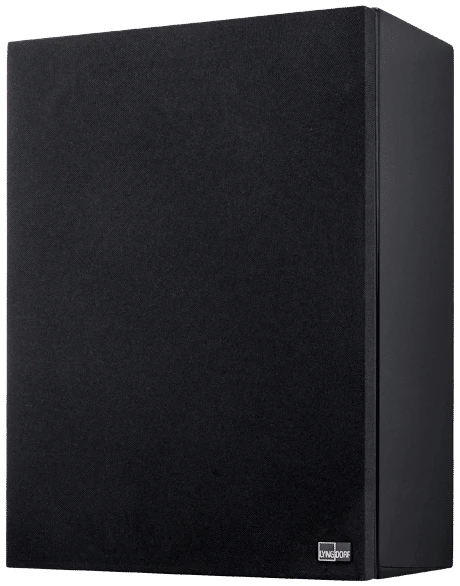

• Stylish Finishes: Available in high-gloss black or matte white, the subwoofer can seamlessly blend into modern interiors. Optional Gabriel fabric covers in colors like black, grey, petrol blue, dusty green, and red are also available.

Enhanced Functionality

• Bypass Mode for Lyngdorf Amplifiers: When paired with a Lyngdorf Audio amplifier, the BW-2 can bypass internal filters, extending its frequency response up to 800 Hz and functioning as a boundary woofer for enhanced system performance.
• Low Standby Power Consumption: Operates with a standby power consumption of less than 0.5W, ensuring energy efficiency when not in active use.

SPECIFICATIONS
