Lab Gruppen PLM 5K44 5000W Amplifier with 4 Flexible Output-Channels, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications

Building on the best-selling PLM+ Series, the PLM 5K44 offers up to 4 x 1,250 Watts output power, a multitude of processing power, and a host of additional features designed to provide real world benefits – all at a price point that makes owning them more affordable than ever. Features such as: LAKE Digital Signal Processing; Dante Digital Audio Networking; plus a touring technology first – Rational Power Management (RPM), a proprietary innovation that rationalises power allocation between channels for optimised performance. As with previous generations, the PLM 5K44 provides redundant audio inputs and load monitoring, plus the multi-channel performance that adds flexibility across the user’s entire loudspeaker inventory. The PLM 5K44 makes any production lifecycle easier to specify, smoother to run, and more efficient to control and monitor at the system design stage, during the show – and right through to final load out.

Features

• 5,000 Watt amplifier with 4 flexible output channels and up to 2,000 Watts channel output for touring applications
• Lake digital signal processing for unparalleled loudspeaker management and system control
• Integrated 8×8 channels of dual redundant Dante* digital audio networking with AES67 support
• 4 x 900 Watts into 2 Ohms, 4 x 1,250 Watts into 2.67 Ohms, 4 x 1,250 Watts into 4 Ohms, 4 x 1,250 Watts into 8 Ohms, 4 x 700 Watts into 16 Ohms
• Proven and reliable IDEEA output stage with high-efficiency cooling system
• Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
• Best-in-class Power Factor Correction (PFC) with Current Draw Modeling reduces running costs and minimizes environmental impact
• Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
• Dedicated on-board surveillance and load monitoring for complete peace of mind
• Redundant audio inputs and on-board system surveillance for full system security

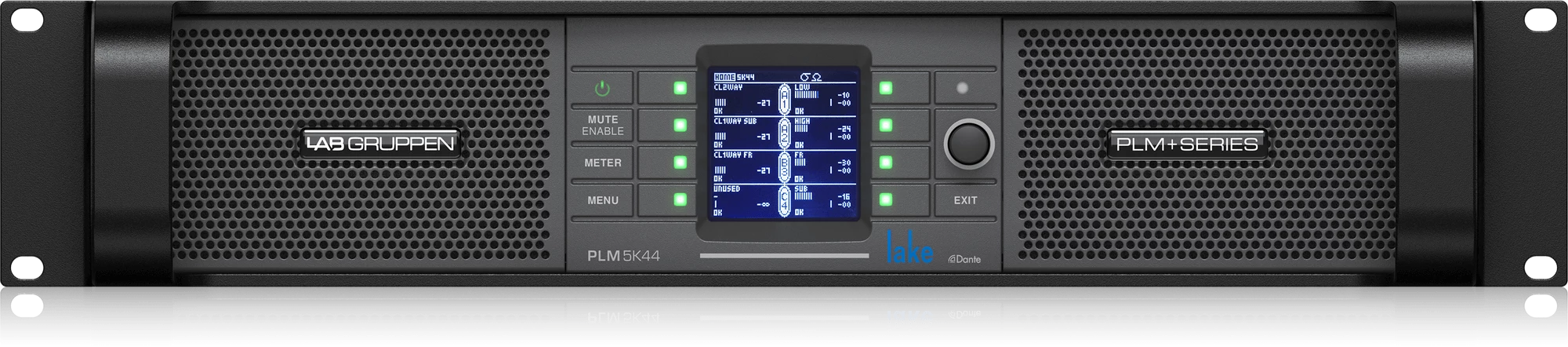

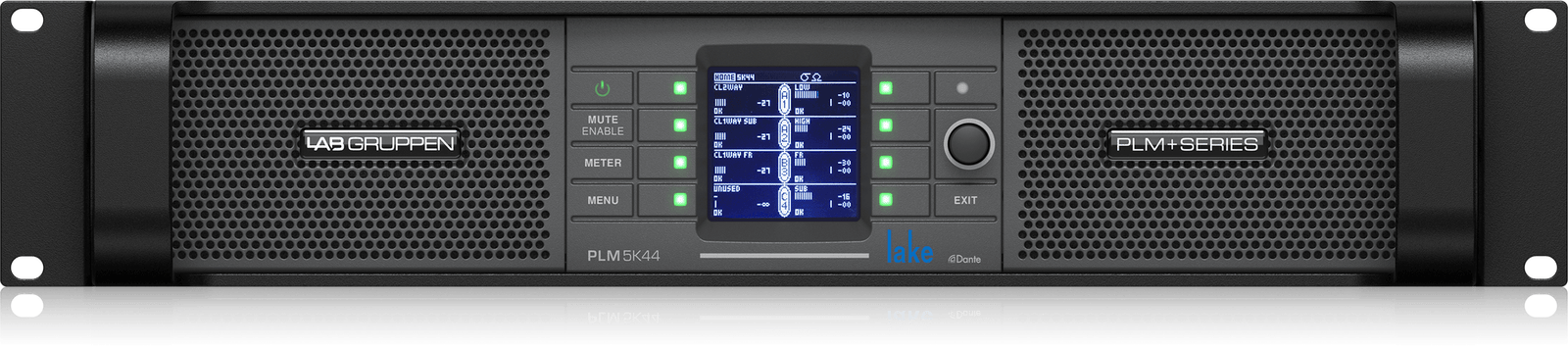

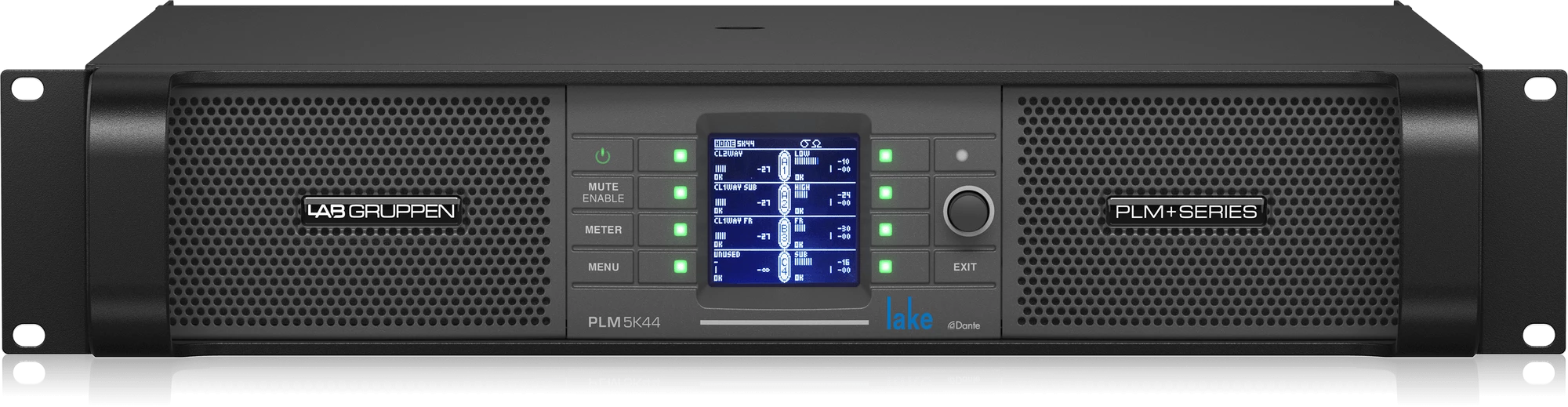

• Backlit, white-on-black front panel display and menu navigation buttons
• 100 user presets for simple and efficient system configuration and set-up
• Front-to-rear airflow fans with temperature control for optimal speed and reduced noise
• 4 “Lake Class” analog input channels with Iso-Float ground isolation
• 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution
• 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
• Balanced analog and AES/EBU audio inputs on Neutrik* XLR connectors
• 4 NL4 Neutrik speakON* and 4 binding post output connectors
• Detachable locking IEC cable rated at 250 V / 15 Amp
• Removable dust filter grilles for increased air circulation

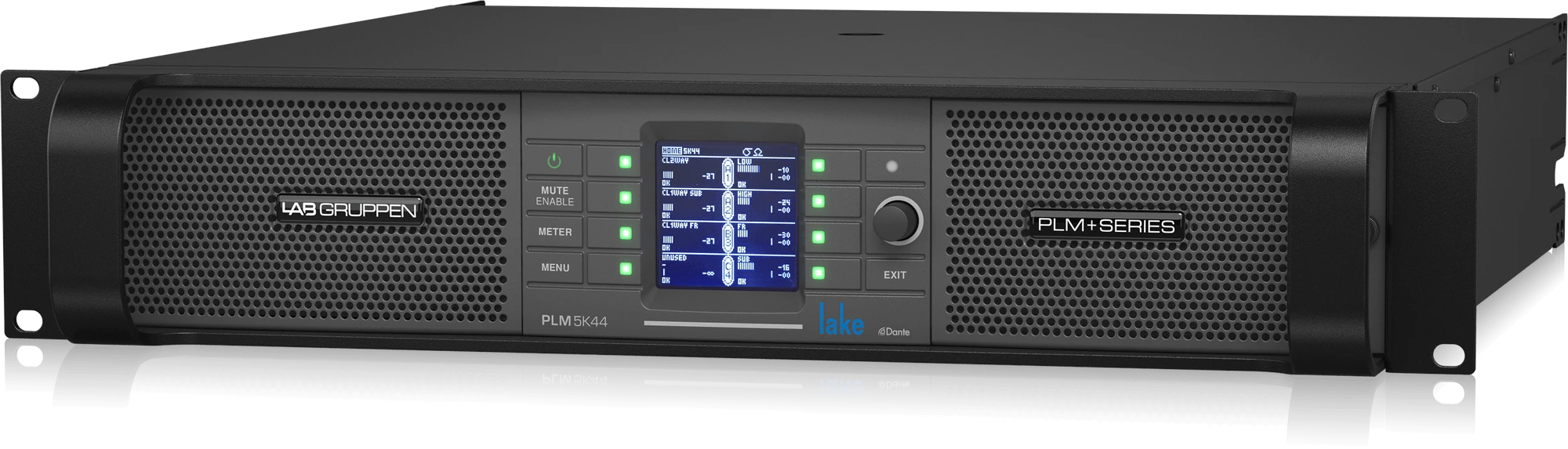

• Rugged 2U rackmount chassis for durability in touring applications

Specifications

General

Finish

Black painted steel chassis with black painted steel / aluminium front

Processing / Network

Lake / Dante

Numbers of amplifier channels

4

Total burst power all channels

5000 W (share among channels with RPM)

Max Output Power

All Channels Driven

2 ohms: 900 W
2.67 ohms: 1250 W
4 ohms: 1250 W
8 ohms: 1250 W
16 ohms: 700 W
Hi-Z 70 V: 1300 W
Hi-Z 100 V: 1250 W

Single Channel

2 ohms: 900 W
2.67 ohms: 1250 W
4 ohms: 1750 W
8 ohms: 1350 W
16 ohms: 700 W
Hi-Z 70 V: 1450 W
Hi-Z 100 V: 2000 W

Output Modules (All Models/Channels)

Peak output voltage

150 V

Max output current

30 A

Rotational Power Management (RPM)

Any channel has potential to deliver the max single channel output power

Default voltage limitation

145 V (can be lifted with RPM configuration)

Protection Features

Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC)
Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature Protection

Audio Performance (Amplifier Platform)

THD

THD + N 20 Hz – 20 kHz for 1 W: < 0.05 %THD + N at 1 kHz and 1 dB below clipping: 0.04 %

Dynamic range

> 112 dB

Channel separation (Crosstalk)

> 70 dB (at 1 kHz)

Frequency response

+ /- 0.05 dB (1 W into 8 ohm, 20 Hz – 20 kHz)

Internal sample rate / Data path

96 KHz / 32 bit floating point

Propagation delay AES

1.61 / 1.68 ms (96 kHz / analog input)

Lake Processing

Loudspeaker processing

Up to 4 modules of Classic/linear-phase/FIR cross-over, EQ, delay, LimiterMax – peak and RMS limiters

System turning

Group control with Raised Cosine MESA EG asymmetric filters

Input redundancy / Matrix

Automatic 4 level input redundancy / 4 input mixers

System integration

Comprehensive 3rd party protocol over UDP Ethernet

Measurement & Analysis

Pilot tone generation and analysis

Yes

Load impedance analysis

Yes

Real Time Analyzer (RTA)

Yes (3rd party integration)

Dante Audio Network

Dante I/O

8x 8 (shared with AES67)

Network topology / redundancy

Flexible topology / Supports daisy-chained and Dual redundant networks

Sample rates / transport

48, 96 kHz / Uni + Multicast

Network latency

0.25, 0.5, 1.0, 2.0, 5.0 ms

AES67 Audio Network

I/O

8x 8 (shared with Dante)

Network topology / redundancy

Flexible topology / Supports daisy-chained networks

Sample rates / transport

48 kHz / Multicast

Network latency

2 ms

Device Presets

Local memory locations

100 (for the setting of the product)

AES Inputs

Inputs

4 AES inputs

Supported sample rates/ resolution

44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits

Sample rate conversion

0.00003 % (THD + N 20 Hz – 20 kHz unweighted)

Analog Inputs

Inputs

4 high quality inputs with Iso-Float ground isolation

Maximum input / digital reference

+ 26 dBu / +21 dBu

Sampling rate / resolution

96 kHz / 24 bit

Input impedance balanced / unbalanced

20 k / 10 k ohm

THD

THD + N (typical at 1 kHz unweighted): 0.00022 %
THD + N (typical at 20 Hz and 20 kHz unweighted): 0.00033 %

Limiters

Adjustable ISVPL

17.8 – 150 V, step size 0.1 V

Current Peak Limiter < 300 ms

30 A peak

Current Average Limiter (CAL) > 300 ms

15 Arms

LimiterMax (rms and peak limiters)

MaxRMS (rms voltage limiter): Yes
MaxPeak (peak voltage limiter): Yes

Amplifier gain

22 – 44 dB, step size 0.1 dB

Digital attenuator

– inf 0 dB, step size 0.25 dB

Rear-Panel Interface

Analog inputs

4x 3 pin XLR, electronically balanced

AES inputs

2x 3 pin XLR

Output connectors

Neutrik speakON (4 x NLT4) and 4 building posts (pairs)

Auto 100/1000, Auto Uplink

2x RJ45 etherCON

Control and monitoring interface

Via Ethernet for Lake Controller software, or DLM (the 3rd party protocol)

Detachable mains cord

Detachable locking 3-pin
IEC rated at 250 V / 16A

Cooling

Four fans front-to-rear airflow temperature controlled speed

Front-Panel Interface

Display

2.5 inch, Black / white, daylight readable LCD

Fault/Warning/Limit/Clip indicators

RGB LEDs and detailed fault description on display

Mute and soft function buttons

8 provided

Standby Power button

On / Standby

Mute Enable button

Enables muting of outputs and inputs via soft-button keypad

Meter button

Toggles through meter views

Menu button

Provides a menu driven interface for full function front panel control

Rotary Encoder

Yes

Exit button

Provides a “back” function

Mains Power

Nominal voltage

100 – 240 V AC 50-60 Hz

Operating voltage

70 – 265 V AC

Mains wall plug

Selectable order CEE 7/7
“Schuko” 230 V / 16 A
NEMA 5-15 125 V /15 A
BS1363-A 250 V / 13 A
IA16A3 250 V / 16 A
AU/NZ 250 V / 10 A
JP 125 V / 15 A
CPCS-CCC 250 V / 10 A

Power Supply Feature

Soft start / inrush power

Yes

Power Factor Correction (PFC)

>0.98 for mains power > 300 W

Regulated switch mode power supply

Yes

Breaker Emulation Limiter (BEL)

Configurable current threshold and breaker profile

BEL max current threshold

15 A

Power Average Limiter (PAL)

Yes

Under Voltage Limiter (UVL)

Yes

Mains Under/Over voltage protection

Yes

Mains glitch tolerance

Yes

Approvals

Approvals

CE, ANSI / UL 60065 (ETL), CSA C22 NO. 60065, PSE, RCM, FCC and CCC

Physical

Dimensions

Rack rail to rear panel (W x H x D): 19 x 3.46 x 16.7″ (483 x 88 x 424mm)
Height: 2U
Overall depth including handles and rear support: 19.6″ (498mm)

Weight

25.1 lbs (11.4kg)
