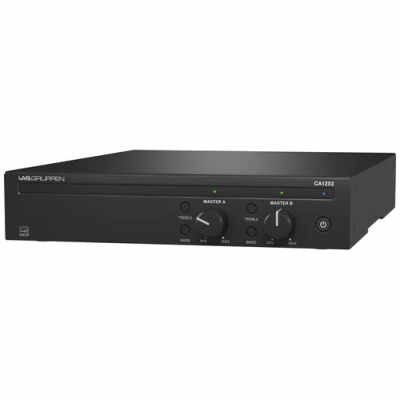

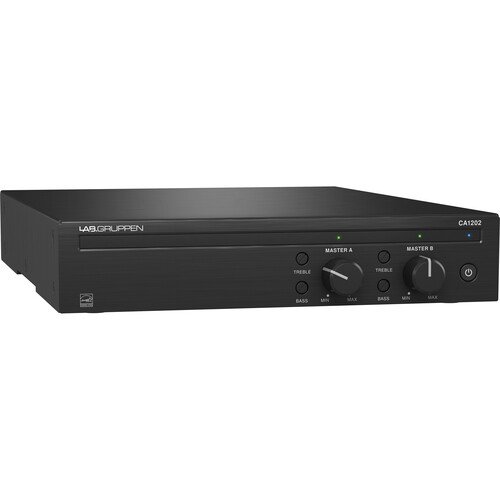

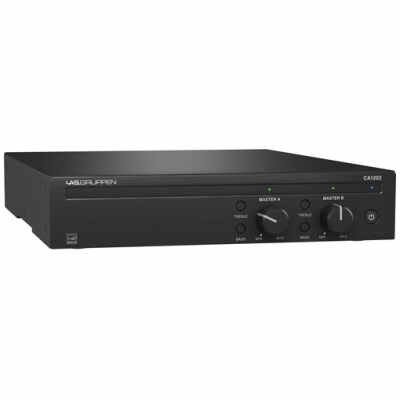

The Lab.Gruppen CA1202 is a compact, 2-channel 2 x 120W amplifier for commercial and industrial applications requiring distributed audio coupled with power conservation and reduced operating expenses well suited for bars, restaurants, retail, hotels, corporate, education, or other venues needing background music and/or a public-address system.
FEATURES
- 4/8 Ohms + 70/100V Operation
- Switchable High-Pass Filter
- Energy Star Certified
- Direct Drive, Constant Power Technology
- GPI Remote Volume via RJ-45 Connector

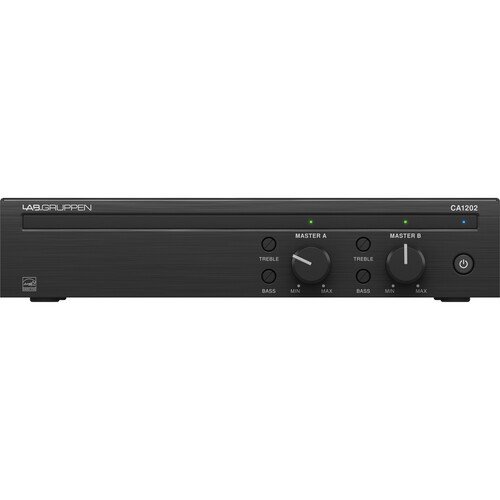

- Front-Panel Master Volume +Treble/Bass

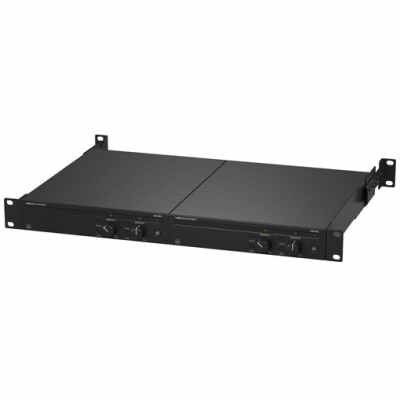

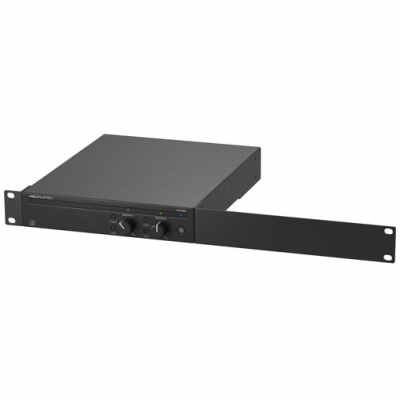

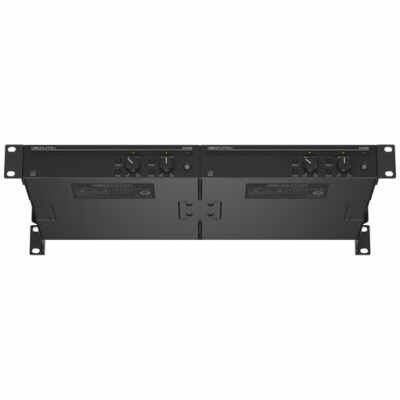

- Rack-Mountable 1 RU 1/2-Rack
- Euroblock Input and Output Connectors
- Convection-Cooled for Fanless Operation

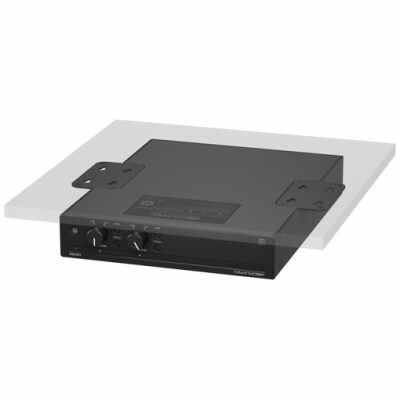

- Includes Mounting Hardware and Brackets
SPECIFICATIONS
Key Specs
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 120 W Peak
|
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms per Channel (Minimum)
Mono/Stereo:
70 / 100 V per Channel (Minimum)
|
| Analog Audio I/O |
2x Block 3-Pin Female Balanced Line Input
2x 2RCA TS Female Unbalanced Line Input
|
| Digital I/O |
No
|
| Rackmount Size |
1 U (with Included Hardware)
|
Amplifier
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 120 W Peak
|
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms per Channel (Minimum)
Mono/Stereo:
70 / 100 V per Channel (Minimum)
|
Performance
| Protections |
DC Fault, Overcurrent, Thermal, Ultrasonic
|
| Frequency Response |
20 Hz to 20 kHz +0.5/-1 dB
|
| Input Sensitivity |
Block Line:
1.23 V
RCA Line:
0.62 V
|
| Input Impedance |
Block Line:
20 Kilohms (Balanced)
Block, RCA Line:
10 Kilohms (Unbalanced)
|
| Max Input Level |
+22 dBu / 9.75 V
|
| SNR |
> 97 dBA
|
| Distortion |
< 0.05%
|
| Crosstalk |
> 85 dB
|
Signal Processing
| Crossover |
Yes
|
| EQ |
2-Band Shelving EQ per Channel
|
| Filters |
1x High-Pass:
80 Hz
|
| Ducking/Muting |
No
|
| Limiting |
Output
|
Connectivity
| Analog Audio I/O |
2x Block 3-Pin Female Balanced Line Input
2x 2RCA TS Female Unbalanced Line Input
|
| Digital I/O |
No
|
| USB I/O |
No
|
Power
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
|
| AC Power Connector |
1x IEC 15 A / NEMA 5-15
|
| Power Consumption |
4 Ohms:
70 W (1/8 Power)
|
Physical
| Rackmount Size |
1 U (with Included Hardware)
|
| Cooling |
Convection
|
| Certifications |
CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus
|
| Dimensions |
8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7Â mm
|
| Weight |
5.8Â lb / 2.6Â kg
|
Packaging Info
| Package Weight |
7.065 lb
|
| Box Dimensions (LxWxH) |
15.5 x 11.5 x 4.6″
|
