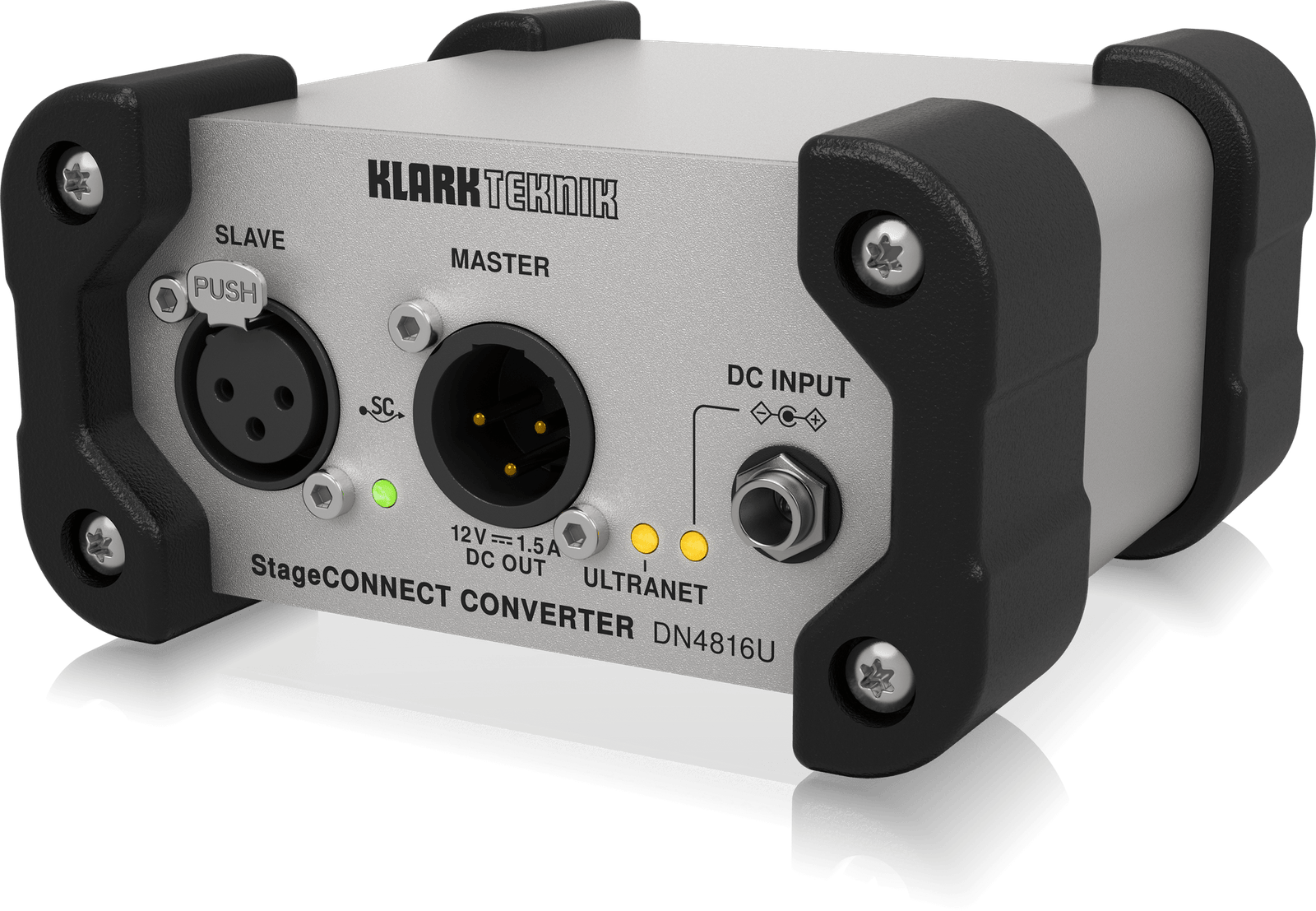

Klark Teknik DN4816U Bus-Powered StageConnect Interface Bridge with Multi-Channel USB I/O and Behringer Ultranet I/O

The Klark Teknik DN4816U is a universal and compact interface box for sharing 32 channels of audio between StageConnect devices, Behringer Ultranet and USB audio on your PC. There are countless applications: Send USB audio to Behringer P16 personal monitor mixers, use a Midas MR18 as 16 CH input box for Behringer WING or record 32 channels from WING directly in your DAW.
SC-Devices interconnect with a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will allocate the channels for their respective connectivity automatically.

Features

• DI Box sized interface for connecting StageConnect devices to Behringer Ultranet systems and USB multi-channel audio
• StageConnect 32-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using standard XLR microphone or DMX cable
• Asynchronous 32-channel sample rate conversion allows connecting different clock domains and sample rates with 0.4 ms latency and 140 dB dynamic range
• Supports bi-directional audio configurations, with control data and 12 VDC/18 W remote power
• Master and Slave ports allow exchanging multi-channel audio with a chain of other StageConnect devices
• Can be used for sending StageConnect or USB signals to P16 personal monitoring mixers or Turbosound iQ speakers
• Behringer Ultranet signals can be converted to StageConnect or USB streams
• Slave mode for use with StageConnect enabled mixing consoles, stageboxes and hubs
• External power supply for stand-alone use and offering remote power on the StageConnect Master output

Specifications

Processing

Connectors

Power

Physical
