The DN200 has become an established favorite amongst both engineers and musicians alike. With its high headroom, dynamic response and sonic clarity, DN200 faithfully reproduces the character of electric and acoustic instruments and allows far more of the detail of musical performances to be captured. DN200 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 KΩ load. This increased headroom means that much higher-level input signals can be accommodated without the need for an attenuating pad. Combined with a very low noise input circuit topology, DN200 offers a very wide dynamic range, and only requires the -20 dB pad when connecting directly to instrument amplifier outputs or other very high-level signal sources.
Features
- 2-Channel Active DI box with high-headroom design and +48 V phantom power for extended dynamic range

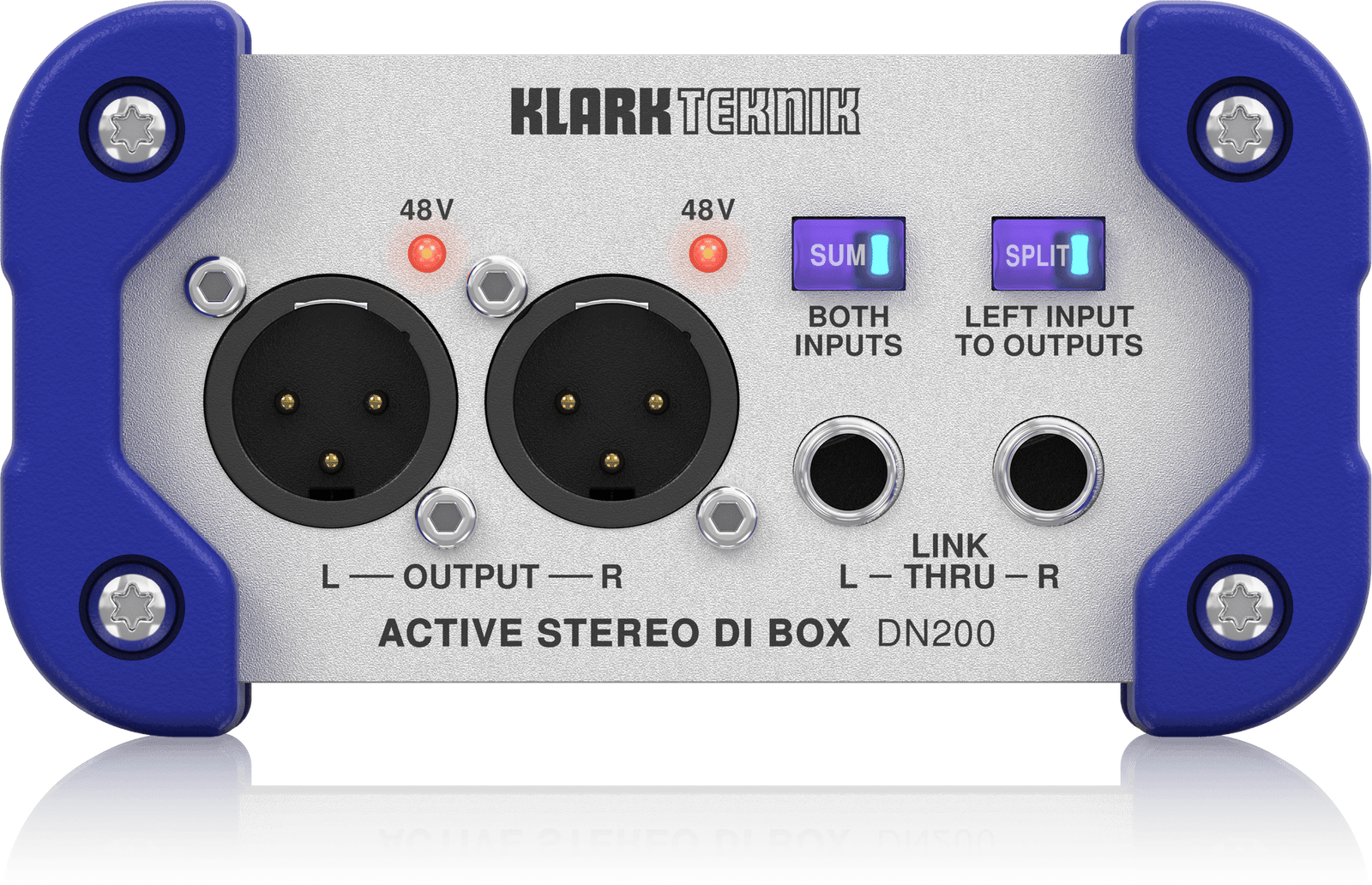

- Sum and split options for flexible signal routing
- Fully transformer-isolated design ensures electrical separation between PA and stage equipment

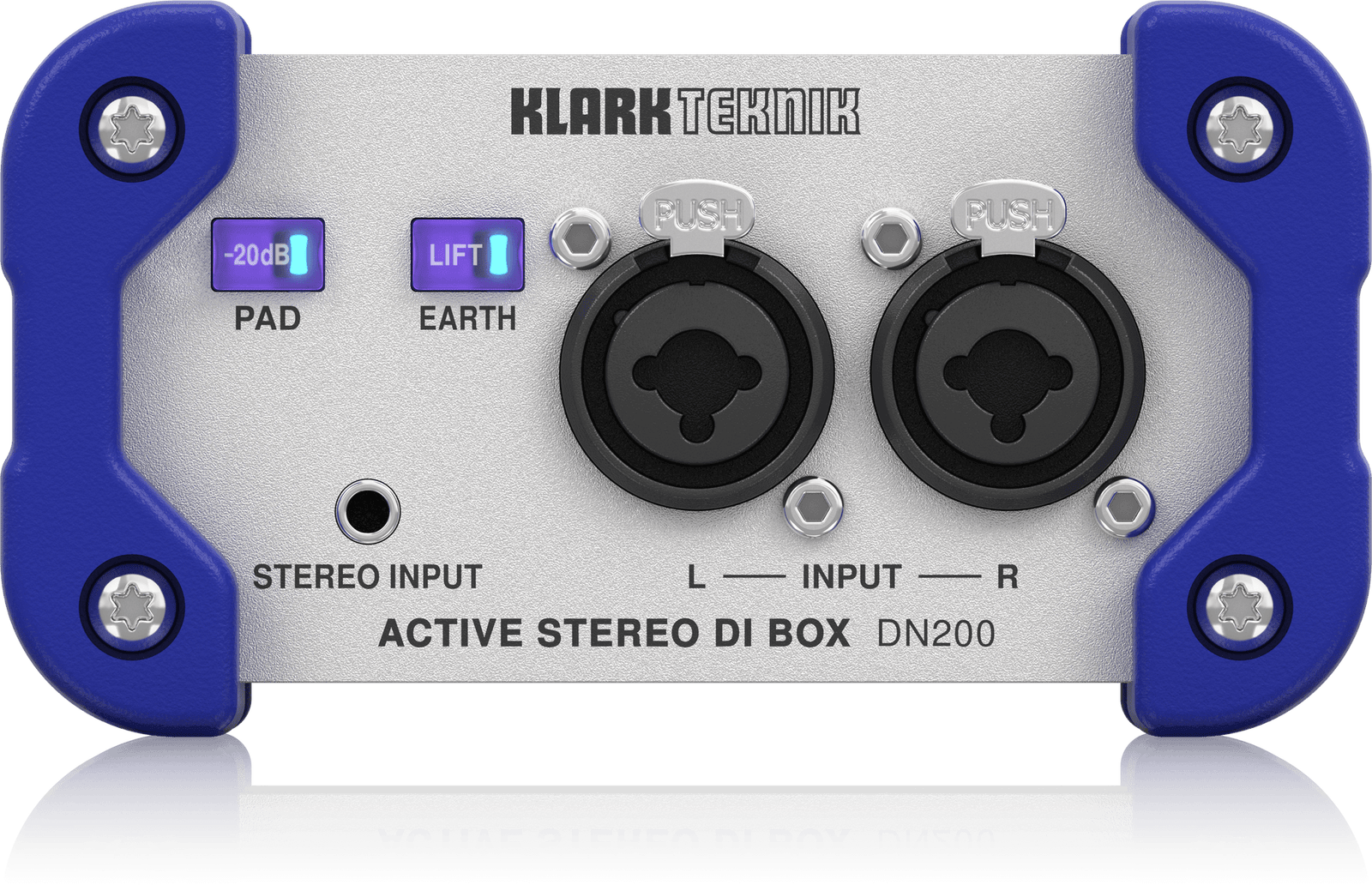

- Balanced line inputs on Neutrik Combo* XLR and high impedance 1/4″ TRS connectors
- Stereo input on 1/8″ TRS for connection of consumer audio equipment
- Independent phantom powering for each channel for maximum reliability
- Global 20 dB input pad and earth lift switches

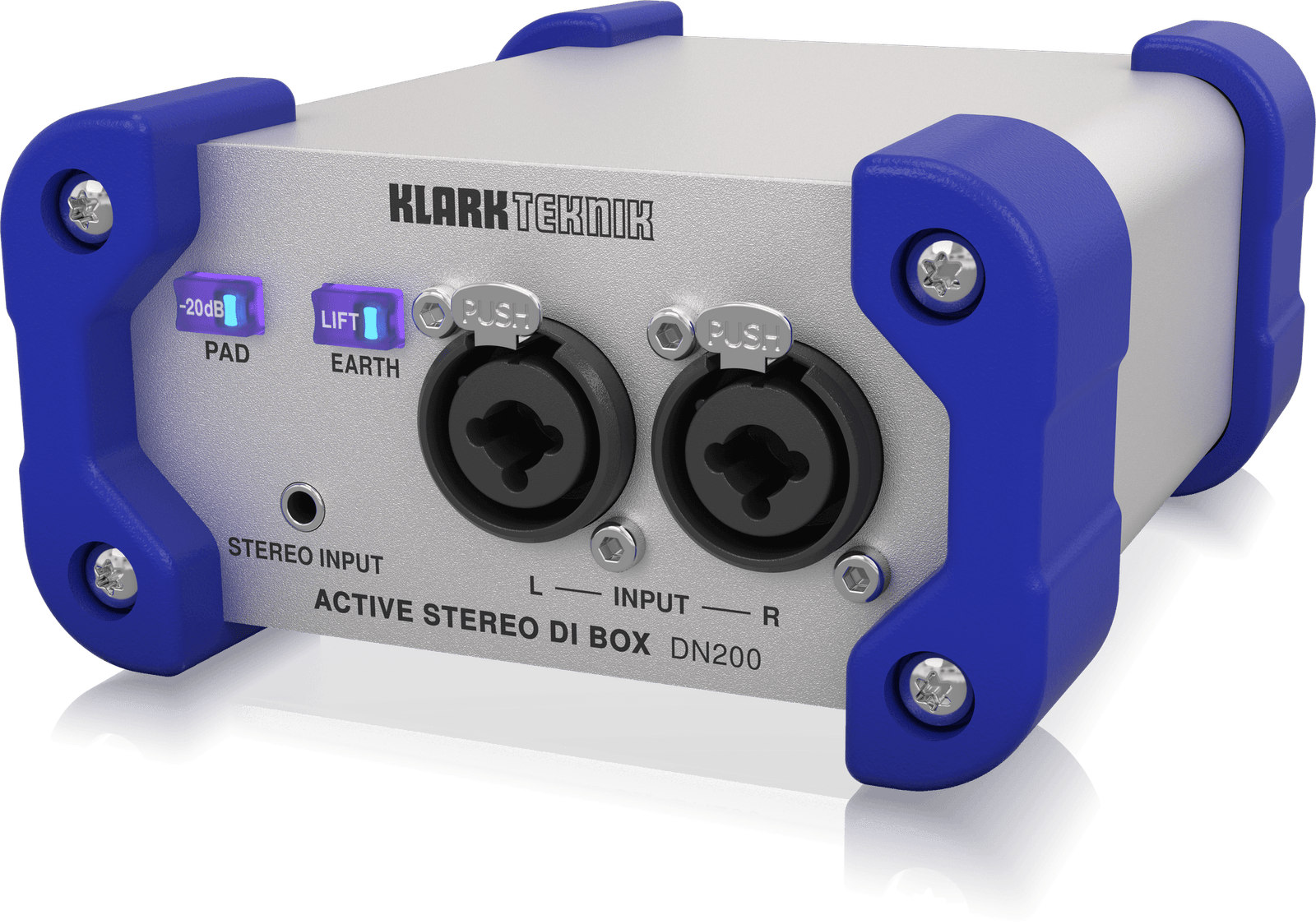

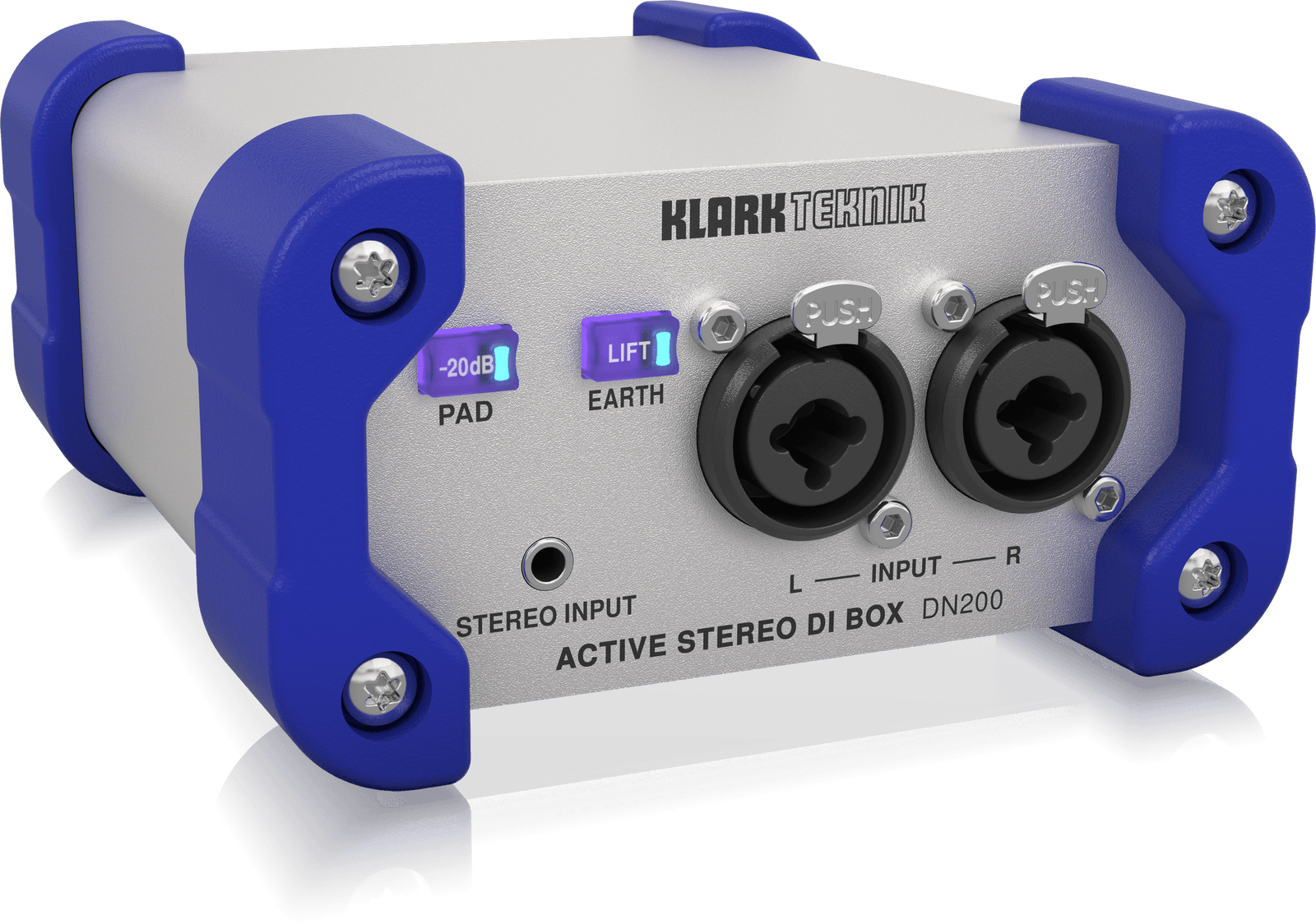

- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
Specifications
Inputs
| Connectors | 2 x combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack |
| Impedance | 1 MΩ (combo & link jacks balanced), 20 kΩ (combo XLR only), 500 kΩ (1/8″ stereo TRS jack unbalanced) |
| Max input level | 28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8″ TRS jack (pad enabled) |
| Attenuator | 20 dB pad |
Outputs
| Connectors | 2 x 3-pin XLR |
| Impedance | 50 Ω |
| Max output level | 13 dBu with 10 kΩ load, 10 dBu with 600 Ω load |
| Min load | 600 Ω |
System
| Noise | 103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor |
| Frequency response | 20 Hz to 20 kHz, ±1 dB, 10 kΩ load |
| Distortion (THD + N) | Typically <0.005% @ 1 kHz, +10 dBu |
| Crosstalk | <100 dB @ 1 kHz, inputs terminated |
Power Requirement
| Voltage | +48 V phantom |
| Current consumption | <10 mA per channel |
Physical
| Dimensions | 118 x 63 x 142 mm (4.7 x 2.5 x 5.6″) |
| Weight | 0.65 kg (1.43 lbs) |
