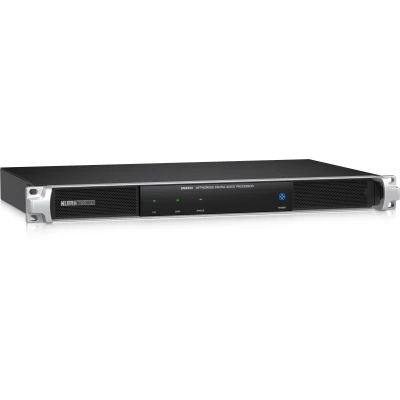

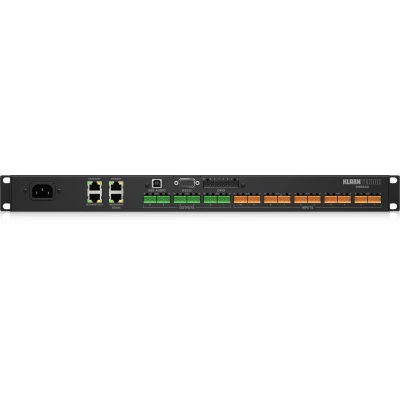

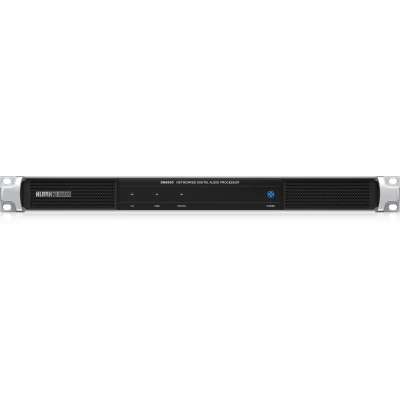

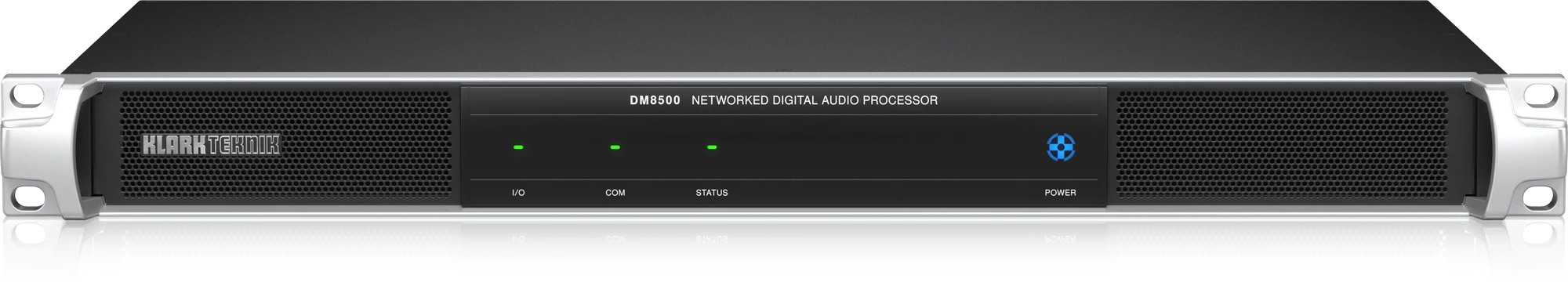

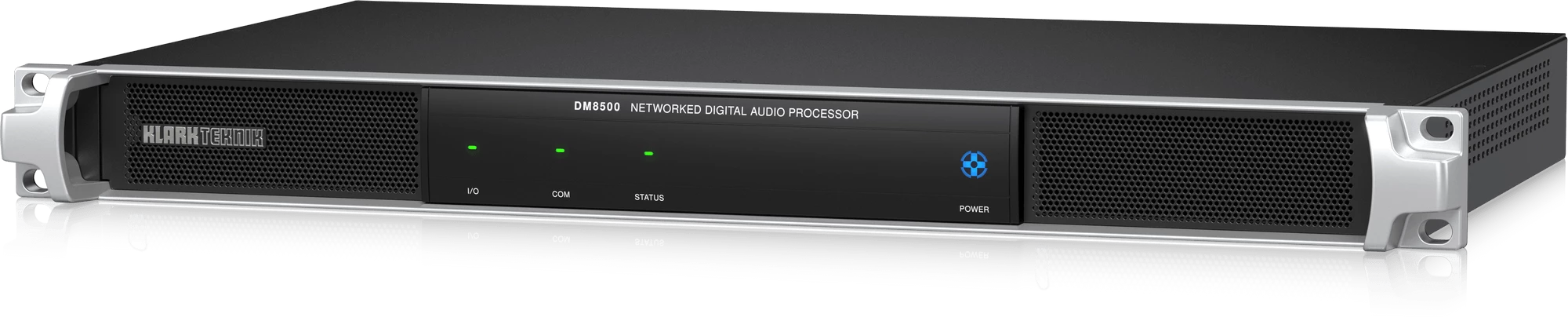

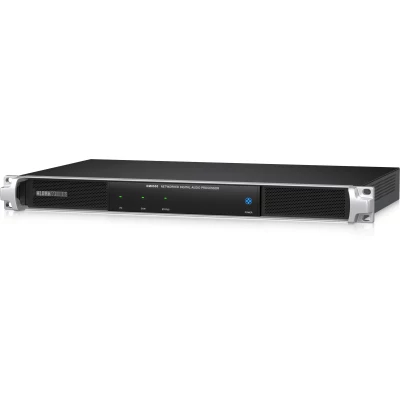

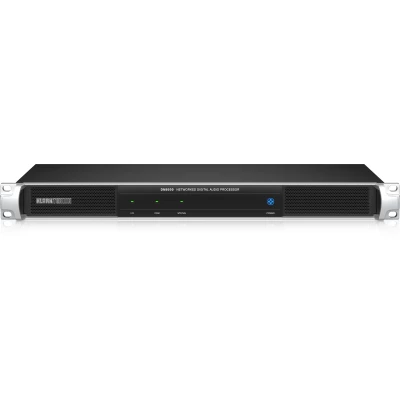

Modern installed audio applications require a flexible digital audio processor with user-friendly features, such as user-configurable DSP and routing options, multiple inputs and outputs – and built in audio networking. Designed for installed use in corporate environments, hospitality venues and more, the DM8500 provides 128 channels of Dante digital audio networking for easy integration with other equipment. The highly versatile DM8500 seamlessly integrates with computer based conferencing systems using embedded USB, and can control and monitor external devices using built-in Ethernet and RS232 ports.
At the heart of the DM8500 is an advanced digital audio processor, with the power and versatility to handle even the most challenging application. Designed around an open architecture format, system integrators can easily configure the DM8500 to meet the requirements of any customer – and create systems that are eminently expandable, and virtually future-proof.
Features
- Networked open architecture digital audio processor
- 64 x 64 channel, dual-redundant Dante*/AES67 audio transport
- 10 high-headroom analogue mic/line inputs
- 6 electronically balanced, low impedance line level outputs
- 24 channels of freely assignable Acoustic Echo Cancellation
- 16 channel ULTRANET audio output bus
- Class-compliant USB connection for integration with soft codec conferencing applications
- System configuration and control via ethernet
- Embedded HTML engine to serve custom control pages
- Integrated control modules for Lab Gruppen D series and Lucia amplifiers
- Embedded media engine for audio playback and recording
- RS232 connector for interfacing with 3rd party control systems
- 6 user-configurable general purpose input output connections (GPIO)
- Auto-ranging universal power supply
Specifications
Analogue Inputs
| Number of channels | 10 |
| Type | Analogue, electronically balanced Euroblock connectors |
| Impedance | 10 kΩ |
| Maximum input level | +24 dBu |
| Gain range | 0 to +66 dB with step 6 dB |
| Common mode rejection | Typically, 60 dB at 1 kHz |
| Crosstalk (inter-channel @ 1 kHZ) | < -75 dB |
| Phantom power | +48 VDC, 7mA per channel |
Analogue Outputs
| Number of channels | 6 |
| Type | Analogue, electronically balanced Euroblock connectors |
| Output impedance | 200 Ω, balanced |
| Maximum output level | -31 dBu to +24 dBu |
Dante Input / Output Characteristics
| Number of channels | 64 input / 64 output |
| Connector | 2 x RJ45 |
| Sample rate | 48 kHz |
| Resolution | 24-bit |
| DM8500 internal latency | < 1.8 ms |
| DM8500 Dante latency | 0.25 ms, 0.5 ms, 1.0 ms, or 5.0 ms (set by Dante controller) |
| Clock synchronization | Incoming Dante clock or DM8500 internal clock |
ULTRANET Digital Network
| Number of channels | 16 out |
| Connector | RJ45 |
| Sampling rate | 48 kHz |
| Latency | < 1.8 ms |
| Cable | Shielded CAT-5 |
| Cable length | Up to 75 m / 250 ft |
