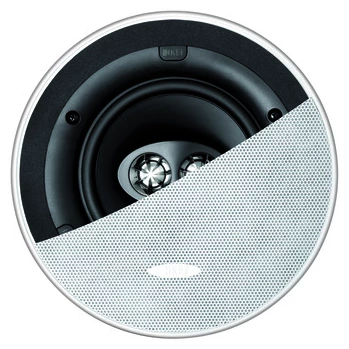

The KEF Ci160CRds Dual Stereo In-Ceiling Speaker is a high-performance dual stereo in-ceiling speaker designed for premium audio in custom installations. Featuring KEF’s acclaimed Uni-Q® driver array with dual 160 mm low-frequency drivers and two 19 mm high-frequency drivers, the Ci160CRds delivers immersive stereo sound from a single flush-mounted unit. Its thin-bezel design ensures a sleek, modern look that integrates seamlessly into ceilings without distracting from your décor, making it ideal for home theaters, multi-room audio systems, and high-end architectural installations.
With a frequency response of 50 Hz–20 kHz (±6 dB) and a sensitivity of 91 dB, this speaker reproduces rich bass, detailed midrange, and clear, precise highs, creating a full-range listening experience that fills the room. The 8 Ω nominal impedance and recommended amplifier power of 10–80 W make it easy to drive with most AV receivers and amplifiers, ensuring compatibility with a variety of setups. Its open-backed design provides natural sound dispersion, while the secure mounting system allows for straightforward installation in ceilings up to 36 mm thick.
Optional accessories such as the RIF160R rough-in frame simplify pre-construction planning and ensure precise placement, while the paintable white grille allows the speaker to blend seamlessly with any ceiling finish. Whether used individually or as part of a larger distributed audio system, the KEF Ci160CRds Dual Stereo In-Ceiling Speaker combines high-fidelity sound, elegant design, and reliable construction, delivering an audiophile-grade listening experience without compromising aesthetics.
Features
- UTB™ Ultra Thin Bezel
- Asymmetrical tweeter island for wide off-axis response
- Dual 19mm (0.75in.) Aluminium dome tweeters and ‘tangerine’ waveguides
- Dual voice coil 160mm (6.5in.) extended response bass driver
Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity | 91dB (2.83V / 1m) |
| Crossover Frequencies | 3.2kHz |
| Frequency Response | 50Hz – 20kHz (±6dB), open backed |
| Drive Units | LF: Dual voice coil 160mmHF: 2 × 19mm (0.75in.) |
| Recommended Amplifier Power | 10 – 80W |
| Product External Dimensions (H × W × D) | Diameter: 234.6mm (9.24in.)Depth: 93mm (3.66in.) |
| Cut-Out Dimensions (H × W) | Diameter: 196mm (7.71in.), without back can |
| Mounting Thickness | Ceiling Thickness (Max): 36mm (1.42 in)Ceiling Thickness (Min): 6mm (0.24 in) |
| Mounting Depth From Surface | Product only: 86mm (3.36in.) |
| Optional Rough-In Frame | RIF160R |
| Net Weight | 1.80kg (4.0 lbs) |
| Unit Measurement | Piece |
T8S1M0E/00-BKM
