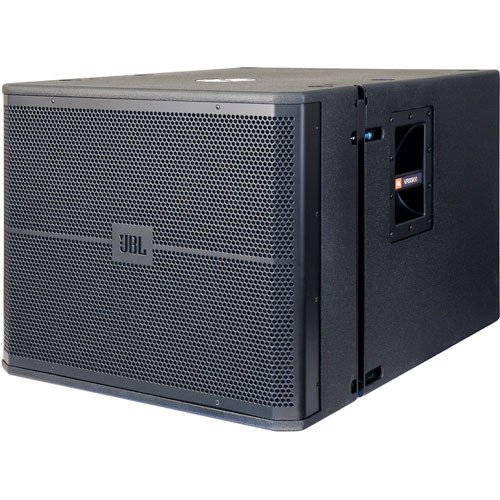

The JBL VRX918S 18″ High-Powered Flying Subwoofer can be placed on the ground or used in a suspended orientation. It features a 2268H neodymium magnet and a patented Differential Drive 18″ woofer.
The entire unit is housed in a sturdy wood enclosure covered by a rugged DuraFlex finish. A large port area is designed to give you reduced distortion and optimal sound. It also features a 20 mm threaded pole socket for solid, secure satellite speaker mounting.
The VRX918S was designed specifically for use in arrays with the VRX932LA Line Array Speaker..
FEATURES
- 18″ Differential Drive – JBL has included an 18″ 2268H Differential Drive woofer so you get the extended low-frequency output your busy professional life requires.
- Integral Rigging Hardware – This subwoofer is designed for flying orientation and to be used with the VRX932LA line arrays and optional array frame.
- Reduced Distortion – The VRX918S features a large port area so you get a reduced distortion output.
- Satellite Speaker Mounting – The VRX918S comes with a 20 mm threaded pole socket to ensure a solid, secure satellite speaker mounting.
- Rugged Housing – The VRX918S is covered by a heavy-duty 16-gauge protective screen-backed steel grill and a DuraFlex enclosure for optimal protection.
SPECIFICATIONS
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 31 Hz – 220 Hz |
| Dimensions (H x W x D) | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
| Frequency Range (-10dB) | 31 Hz – 220 Hz |
| Recommended Crossover Frequencies | 80 Hz, 24 dB / octave HPF80 Hz, 24 dB / octave LPF |
| System Maximum SPL | 130 dB SPL peak |
| System Sensitivity (1w @ 1m) | 95 dB SPL |
| LF Driver | 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer |
| Nominal Impedance | 8 ohms |
| Active Tunings | Tunings available at www.jblpro.com |
| Enclosure | Rectangular, 18 mm, 13-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit or 10mm eyebolt |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing. |
| Inputs | Neutrik® Speakon® NL-4 (x2) |
| Net Weight (each) | 37 kg (81 lb) |
| Optional Accessories | SRX718S-CVR: Pull-over padded coverSS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mmWK-4: Caster kitVRX-AF: Array Frame KitM-10 eyebolt kit |
| Outputs | 1 x XLR |
