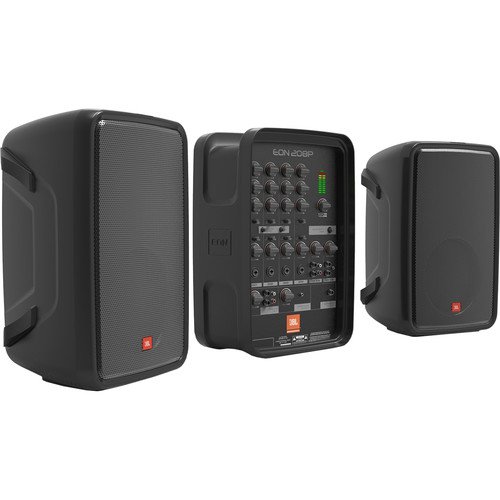

Musicians and audio professionals looking for a professional all-in-one portable stereo PA system will be thrilled with the JBL EON208P Personal PA System, which includes an eight-channel mixer, an AKG microphone, and a pair of two-way loudspeakers, making it well suited for performances, meetings, and events. The system clips together to form one portable unit, making it easy to transport, setup, and breakdown.

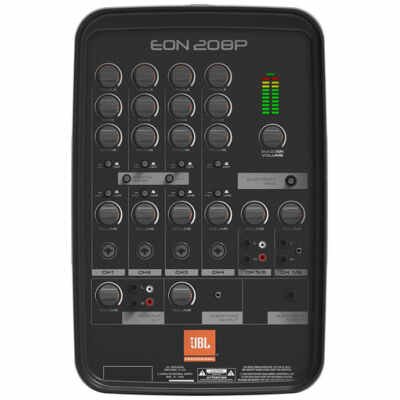

On the mixer itself, channels one through four feature bass, treble, reverb, and volume controls as well as combo XLR-1/4″ jacks. The first two channels provide phantom power—useful for condenser microphones—while channel three sports a Hi-Z input for guitars.
Channels five through eight are grouped in stereo pairs, with the first two giving you RCA options, the second two giving you a 3.5mm stereo input for MP3 players and phones, and both sets offering dual 1/4″ jacks as well. Additionally, this mixer can pair with Bluetooth devices for wireless streaming with tablets, smartphones, and other devices.
Both 8″ two-way loudspeakers deliver a wide degree of coverage as well as 300W of power and a maximum sound pressure level of 121 dB.
FEATURES
- Built-In Handle
- Clip-On Design
- Built-In Bluetooth Receiver
- Stream from Smartphones, Tablets, PCs
- 300W of Class-D Amplification
- 8″ Woofer & 1″ Neodymium Tweeter
- Aux Inputs for Line Sources
- Built-In EQ & DSP Limiting
- 4 x Combo XLR-1/4″ Inputs
- Includes AKG Mic
SPECIFICATIONS
Key Specs
| Speaker Configuration | 2x 2-Way Loudspeaker |
| Number of Input Channels | 8 (4 x Mono, 2 x Stereo) |
| Amplifier Power Rating | 300 W |
| HF Driver | 1x 1″ / 25.4 mm Aluminum Dome Tweeter |
| LF Driver | 1x 8″ / 203 mm Woofer |
| Microphone Type | 1x Handheld |
| Audio I/O | 4x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
4x 1/4″ TRS Balanced Line Input
1x Stereo RCA TS Line Input
1x 1/8″ / 3.5 mm TRS Line Input
2x 1/4″ TS Unbalanced Line/Monitor Output
2x RCA TS Line/Monitor Output
1x 1/8″ / 3.5 mm TRS Headphone Output
1x 1/4″ TRS Balanced Subwoofer Output |
Portable PA System
| Speaker Configuration | 2x 2-Way Loudspeaker |
| Number of Input Channels | 8 (4 x Mono, 2 x Stereo) |
| Amplifier Power Rating | 300 W |
| Amplifier Class | Class-D |
Speakers
| HF Driver | 1x 1″ / 25.4 mm Aluminum Dome Tweeter |
| LF Driver | 1x 8″ / 203 mm Woofer |
| Magnet | HF Driver:
Neodymium |
Signal Processing
| Crossover | 2 kHz, 12 dB/Octave (Passive) |
| EQ | 4x HF Shelf:
±12 dB
4x LF Shelf:
±12 dB |
| Effects | Reverb |
| Dynamic Processing | Limiter |
Microphone
| Microphone Type | 1x Handheld |
| Capsule | Dynamic |
Performance
| Frequency Range | 60 Hz to 20 kHz -10 dB
70 Hz to 18 kHz ±3 dB |
| Maximum SPL | 121 dB (Peak) |
| Coverage Angle | 100° H x 60° V |
Connectivity
| Audio I/O | 4x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
4x 1/4″ TRS Balanced Line Input
1x Stereo RCA TS Line Input
1x 1/8″ / 3.5 mm TRS Line Input
2x 1/4″ TS Unbalanced Line/Monitor Output
2x RCA TS Line/Monitor Output
1x 1/8″ / 3.5 mm TRS Headphone Output
1x 1/4″ TRS Balanced Subwoofer Output |
| Phantom Power | Yes |
| Wireless Connectivity | Bluetooth |
Power
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
Physical
| Transport Options | 1x Handle (Top) |
| Mounting | 1.4″ / 35.56 mm Pole Socket |
| Construction Material | Perforated Metal Grille, Polypropylene |
| Dimensions | 22.6 x 30.5 x 15.7″ / 575 x 775 x 400 mm |
| Weight | 38.8 lb / 17.6 kg |
Packaging Info
| Package Weight | 50 lb |
| Box Dimensions (LxWxH) | 30.5 x 22.55 x 15.75″ |
