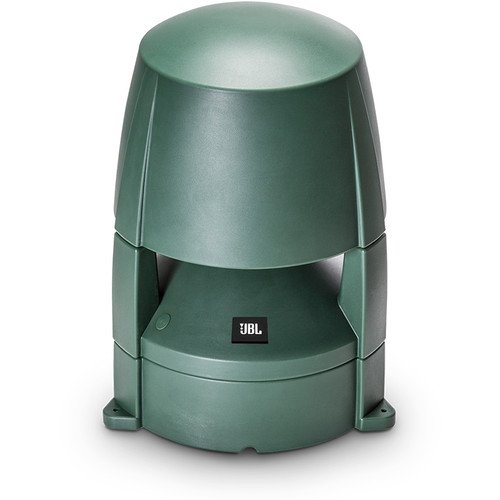

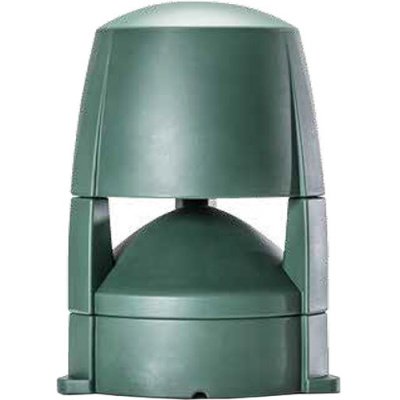

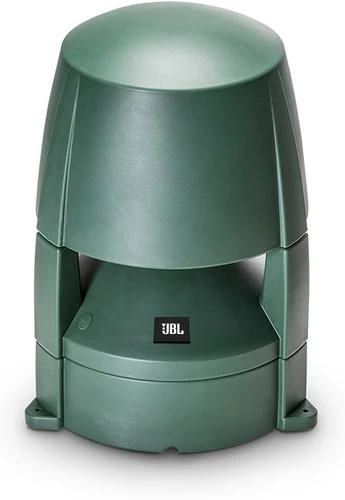

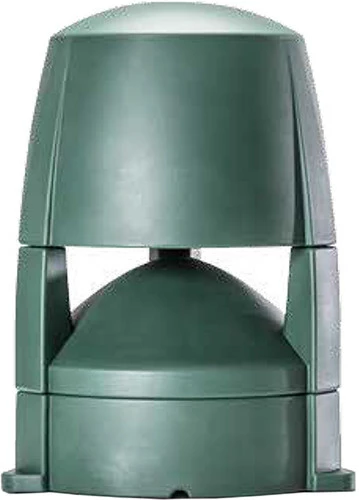

Designed for outdoor applications, the Control 88M from JBL is a weather-resistant mushroom-shaped coaxial speaker offering 360° coverage and a broad frequency range of 47 Hz to 16 kHz. Mounted on or in the ground it provides quality music and paging in a variety of locations including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality facilities, and entrance ways. The speaker’s compact enclosure is unobtrusive and blends in with its surroundings. It resists abuse from lawn care equipment and the elements and maintains its hunter green color even when scraped or scratched.
Features
8″ weather-resistant driver
1″ soft-dome weather-resistant tweeter
120W pink noise power handling (240W program) in direct 8-Ohm setting, plus built-in 60W 70/100V multi-tap transformer
Tough polyethylene weather-resistant enclosure
Fully isolated center chamber for wiring protection
High-fidelity sound character with broad frequency range of 47 Hz to 16 kHz
Specifications
| Frequency Response (-10 dB) | 47 Hz – 16 kHz |
| Power Rating | 240 W continuous program (2 h) 120 W (480 W peak), continuous pink noise (2 h) 100 W (400 W peak), continuous pink noise (100 h) |
| Transformer Taps | 70 V: 60, 30, 15, and 7.5 W 100 V: 60, 30, and 15 W |
| Frequency Response ± 3dB | 60 Hz – 15 kHz |
| Maximum Input Voltage | 28 V |
| Sensitivity | 87 dB, 1 W at 3.28′ / 1 m (average 80 Hz – 16 kHz) |
| Nominal Coverage Angle | 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground) |
| Directivity | Q Factor: 2.1 |
| Directivity Index | 3.2 dB |
| Maximum SPL | 108 dB at 3.28′ / 1 m |
| Nominal Impedance | 8 Ohms (at 8-Ohm setting) |
| Minimum Impedance | 6.6 Ohms at 9.5 kHz |
| Insertion Loss | Up to 0.5 dB at any tap setting |
| Thru | 8 Ohms nominal |
| Crossover Type | 2nd order LPF on LF and 2nd order HPF on HF |
| Recommended Protective High-Pass | 45 Hz for 8-Ohm operation, 24 dB/octave 80 Hz for 60 W tap, 24 dB/octave 50 Hz for 30, and 7.5 W taps, 24 dB/octave |
| Low-Frequency Driver | 8″ / 20 cm diameter LF driver, Kapton former, 1.5″ / 3.8 cm voice coil, polypropylene cone and polyurethane surround |
| High-Frequency Driver | 1″ / 2.5 cm diameter HF driver polyetherimide (PEI) dome |
| Enclosure Material | LDPE polyethylene plastic, 0.23″ / 6 mm wall thickness, UL94V-0 rated |
| Grille | Powder-coated stainless steel |
| Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water) Exceeds MIL-SPEC 810 for humidity, salt spray, temperature & UV Passes MIL-SPEC 202F for salt spray Enclosure UL94V0 rated |
| Agency Rating | UL1480, transformer UL recognized per UL1876, ROHS compliant |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section) |
| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 0.87″ / 22 mm hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 0.16″ / 4.0 mm and 0.35″ / 9.0 mm. |
| Dimensions | 20.7 x 14.0 x 14.0″ / 52.4 x 35.5 x 35.5 cm |
| Weight | 17 lb / 7.8 kg |
Packaging Info
| Package Weight | 24.4 lb |
| Box Dimensions (LxWxH) | 23 x 19 x 19″ |
