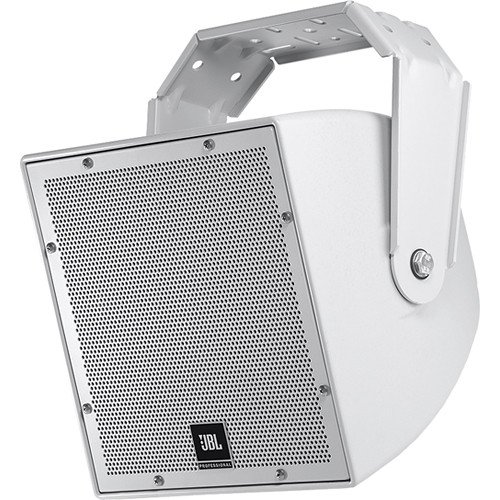

The gray JBL AWC82 is a single all-weather passive coaxial loudspeaker designed for high-output, full-range sound reinforcement in various indoor and outdoor applications such as sports facilities, stadiums, fairgrounds, cruise ships, and background music/paging systems.
Capable of up to 250W long-term power handling, it incorporates an 8″ Kevlar-reinforced woofer and a 1″ fluid-cooled high-frequency driver to produce a high maximum peak SPL of 124 dB and a wide frequency response of 80 Hz to 20 kHz (-10 dB). The coaxial speaker configuration yields a 120 by 120° dispersion pattern for consistent coverage.
The paintable ABS enclosure boasts an IP56 rating for effective weather resistance and a sturdy steel grille backed with open-cell foam for additional protection. An integrated multi-tap transformer—configurable via a rear-panel tap selector—allows operation in 70/100V systems or 8-ohm low-impedance setups. A color-matched U-bracket is included for ease of installation.
Features
- Coaxial 8″ Woofer and 1″ HF Driver
- 250W Power Handling
- 120 x 120° Pattern Control
- Highly Weather-Resistant IP56 Rating
- Integrated Multi-Tap Transformer
- Supports 70V, 100V, or 8-Ohm Operation
- Passive High-Slope Crossover Network
- SonicGuard HF Overload Protection
- Includes U-Bracket for Easy Installation
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 250 W For 100 Hours: 200 W |
| Constant Voltage / Transformer Taps | 70 V 200 / 100 / 50 / 25 W or 8 Ohms Bypass 100 V 200 / 100 / 50 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Nominal) |
| HF Driver | 1x 1″ / 2.54 cm Polymer Compression Driver |
| LF Driver | 1x 8″ / 20.32 cm Kevlar Woofer |
| Frequency Range | 80 Hz to 20 kHz -10 dB |
| Color | Gray |
Speaker
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 250 W For 100 Hours: 200 W |
| Constant Voltage / Transformer Taps | 70 V 200 / 100 / 50 / 25 W or 8 Ohms Bypass 100 V 200 / 100 / 50 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Nominal) |
| Transformer Wattage | 200 W |
| Enclosure Type | Sealed |
Drivers
| HF Driver | 1x 1″ / 2.54 cm Polymer Compression Driver |
| HF Voice Coil | 1″ / 2.54 cm |
| LF Driver | 1x 8″ / 20.32 cm Kevlar Woofer |
| LF Voice Coil | 2″ / 5.08 cm |
Performance
| Frequency Range | 80 Hz to 20 kHz -10 dB |
| Frequency Response | 100 Hz to 20 kHz ±3 dB |
| Maximum SPL | 118 dB (Continuous) 124 dB (Peak) |
| Sensitivity | 94 dB (Average) |
| Coverage Angle | 120° H x 120° V |
| Directivity | 8.4 dB (Directivity Index) 8.1 dB (Directivity/Q Factor) |
| Crossover | High-Pass: 1.8 kHz, 18 dB/Octave (Passive) Low-Pass: 1.8 kHz, 12 dB/Octave (Passive) |
| Protections | Transducer Overdrive |
Connectivity
| Inputs/Outputs | 1x Barrier Strip 2-Pole Speaker Input 1x Barrier Strip 2-Pole Speaker Thru |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
Physical
| Environmental Resistance | Dust/Water-Resistant (IP56) |
| Color | Gray |
| Mounting | 1x M10 Bracket Point (Each Side) 1x M6 Suspension (Rear) |
| Construction Material | ABS, Glass, Metal Grille |
| Dimensions | 12 x 11.8 x 11.8″ / 30.48 x 29.97 x 29.97 cm |
| Weight | 21.5 lb / 9.8 kg (without Bracket) 25.5 lb / 11.6 kg (with Bracket) |
Packaging Info
| Package Weight | 29.5 lb |
| Box Dimensions (LxWxH) | 16.7 x 16 x 15.8″ |
