Description

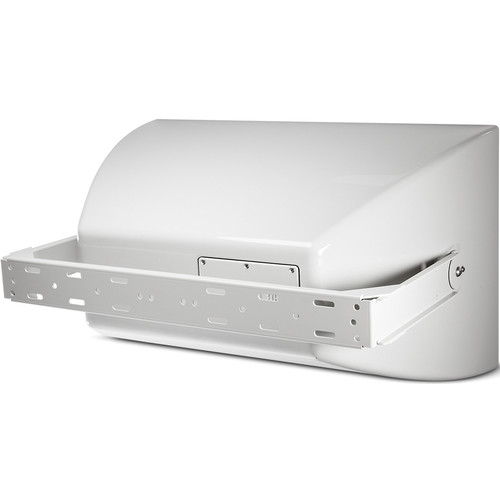

The gray AW595 High Power 2-Way All-Weather Loudspeaker with 15″ LF and Rotatable Horn from JBL is designed to serve as a high power, lightweight, 2-way, full-range loudspeaker system. The system is comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H low-frequency driver and a 2432H high frequency 1.5″ exit voice-coil compression driver. The large format progressive transition waveguide provides 90° x 50° coverage and the speaker is equipped with a 400W transformer for 70/100V applications. The enclosure is constructed of a multi-layer glass composite and is braced to maximize low-frequency performance. The 16-gauge stainless steel grille is backed with open cell foam and stainless steel mesh for protection against the environment.

FEATURES

  • Weather-Resistant Enclosure: Built for permanent outdoor and semi-outdoor installations with durable, all-weather materials.
  • High-Power Output: Delivers strong, full-range audio suitable for commercial and public address applications.
  • Wide Frequency Response: Accurate reproduction of both speech and music with excellent clarity and depth.
  • Corrosion-Resistant Hardware: Ensures long-lasting performance in harsh environmental conditions.
  • Flexible Mounting Options: Supports various orientations for installation on walls, ceilings, or poles.
  • Consistent Dispersion: Engineered for even sound coverage across large areas with minimal distortion.
  • Rugged Build Quality: Designed to withstand UV, moisture, and temperature extremes without degrading performance.
  • Professional Audio Integration: Ideal for stadiums, malls, transport hubs, and theme parks.



SPECIFICATIONS

Driver
Low Frequency Driver: JBL 2265H 15″ / 380 mm Differential Drive driver with 3″ / 75 mm dual voice coil
High Frequency Driver: JBL 2432H 1.5″ / 38 mm exit compression driver with 3″ / 75 mm voice coil
Crossover Frequency
1.2 kHz
Frequency Range
35 Hz – 20 kHz
Frequency Response ± 3dB
55 Hz – 19 kHz
Coverage Pattern
90° x 50°
Directivity Factor
12.6
Directivity Index
11 dB
Impedance
8 ohms
Long-Term System Power Rating
600 W (2400 W peak), 100 hours
Sensitivity
100 dB SPL
Maximum Sound Pressure Level (SPL)
128 dB continuous average (134 dB peak)
Transformer Taps
70 V: 400W, 200 W, 100 W
100 V: 400W, 200W

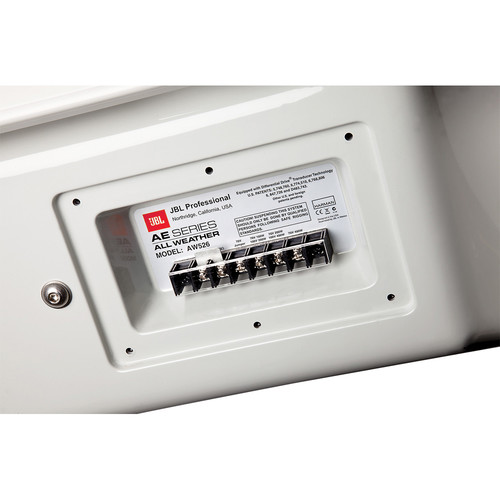

Connectors
Barrier strip terminals
Enclosure Material
Fiberglass
Dimensions
19.1 x 31.9 x 18.8″ / 485.0 x 810.0 x 478.0 mm (measured when in horizontal orientation)
Weight
62.5 lb / 28.3 kg

Packaging Info

Package Weight
76.2 lb
Box Dimensions (LxWxH)
35 x 23 x 20.5″
