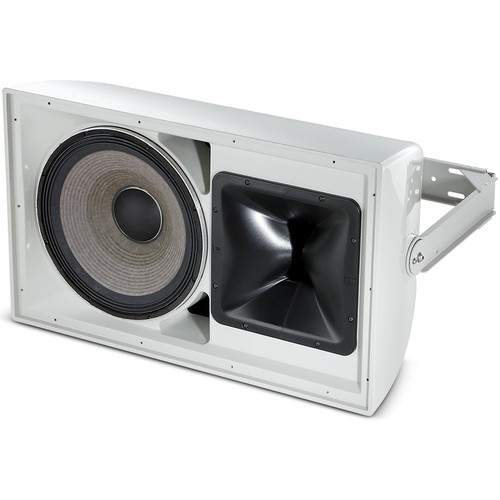

The JBL AW566-LS is a professional-grade outdoor speaker engineered for high-power performance in all-weather environments. Designed for long-throw applications, it ensures exceptional sound coverage in large open spaces such as stadiums and arenas. Built with weather-treated enclosures and corrosion-resistant hardware, the AW566-LS withstands extreme conditions including UV, moisture, and temperature changes. The speaker’s high-output transducers deliver accurate and powerful audio with minimal distortion. It supports both vertical and horizontal mounting for flexible installations. Ideal for music and voice reinforcement, this model maintains clarity at high volumes. Whether used in sports venues or outdoor entertainment spaces, it provides reliable, premium sound performance. JBL’s renowned engineering ensures consistent, long-lasting results. The AW566-LS is a trusted solution for demanding permanent installations
FEATURES
- Weather-Resistant, All Fiberglass
- EN54-24 Compliant
- 60 x 60° Coverage
- Differential Drive Low-Frequency Driver
- High-Frequency Compression Driver
- Large Progressive Transition Waveguide
- 400W, 70/100V Transformer

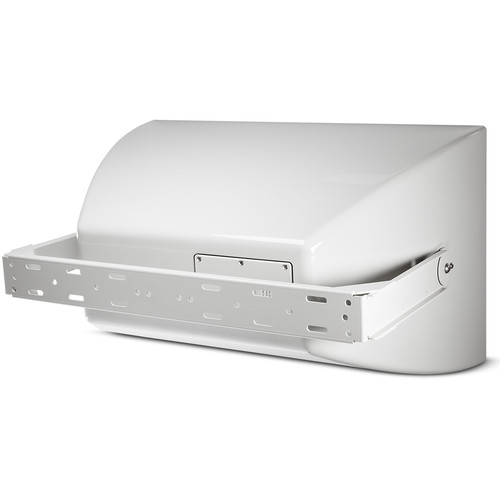

- U-Type Mounting Bracket
- Life-Safety Applications
- Vertical/Horizontal Orientation
SPECIFICATIONS
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
For 100 Hours:
400 W
1600 W Peak
|
| Constant Voltage / Transformer Taps |
70 V
400 / 200 / 100 W
100 V
400 / 200 W
|
| Impedance |
8 Ohms (Nominal)
|
| HF Driver |
1x 1.5″ / 38 mm Waveguide-Coupled Compression Driver
|
| LF Driver |
1x 15″ / 381 mm Woofer
|
| Frequency Range |
42 Hz to 20 kHz -10 dB
|
| Color |
Gray
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
For 100 Hours:
400 W
1600 W Peak
|
| Constant Voltage / Transformer Taps |
70 V
400 / 200 / 100 W
100 V
400 / 200 W
|
| Impedance |
8 Ohms (Nominal)
|
| Enclosure Type |
Bass-Reflex
|
Drivers
| HF Driver |
1x 1.5″ / 38 mm Waveguide-Coupled Compression Driver
|
| HF Voice Coil |
2.95″ / 75 mm
|
| LF Driver |
1x 15″ / 381 mm Woofer
|
| LF Voice Coil |
Dual 2.95″ / 75 mm
|
Performance
| Frequency Range |
42 Hz to 20 kHz -10 dB
|
| Frequency Response |
89 Hz to 18 kHz ±3 dB
|
| Maximum SPL |
133 dB (Peak)
127 dB (Continuous)
|
| Sensitivity |
100 dB
89.6 dB SPL
|
| Coverage Angle |
60° H x 60° V (Horn)
|
| Directivity |
15.8 dB (Directivity/Q Factor)
12 dB (Directivity Index)
|
| Crossover |
1.1 kHz
|
Connectivity
| Inputs/Outputs |

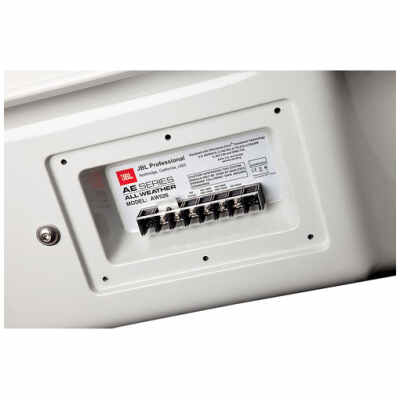

1x Barrier Strip Input
|
| Maximum Wire Gauge |
10 AWG / 2.59 mm
|
Physical
| Certifications |
CE
|
| Environmental Resistance |
Dust/Water-Resistant (IP55)
|
| Color |
Gray
|
| Mounting |
2x M10 Bracket Point (Each Side)
2x M6 Fly Point
1x M10 Fly Point (Rear)
|
| Construction Material |
Fiberglass, Stainless Steel Grille
|
| Dimensions |
31.9 x 19.1 x 18.8″ / 810 x 485 x 478 mm
|
| Weight |
62.4 lb / 28.3 kg
|
