Description

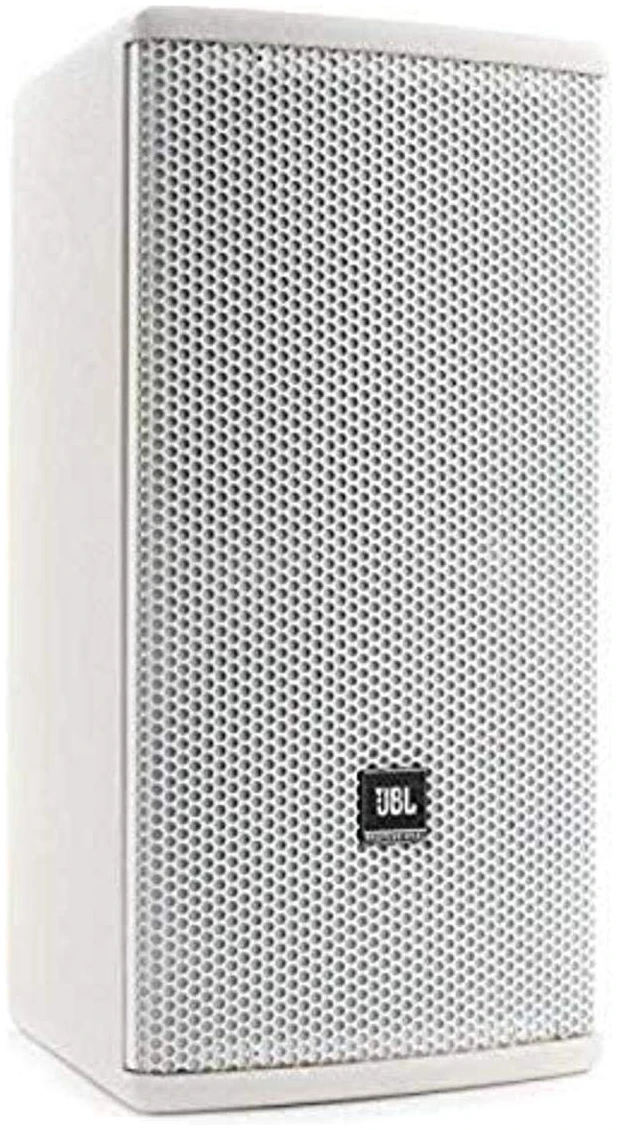

The AM7315/95-WH delivers professional-grade sound with a wide 90° x 50° dispersion and a clean white finish for discrete installations. It’s designed for use in modern indoor spaces such as theaters, houses of worship, and public halls where both performance and aesthetics matter. With a 15-inch woofer and precision high-frequency driver, it provides full-bodied sound and excellent coverage. The white exterior complements contemporary interiors while maintaining JBL’s rugged build quality. This speaker supports flexible mounting and integrates easily into larger sound systems. Offering consistent output and extended frequency response, the AM7315/95-WH is a top-tier choice for premium installations.

FEATURES



  • Wide Coverage Pattern: 90° x 50° dispersion ensures consistent sound distribution in large venues.
  • High-Output Performance: Engineered for professional applications requiring powerful audio clarity.
  • Stylish White Finish: Aesthetic appeal for visually sensitive installations like modern halls and worship spaces.
  • Premium Components: Includes a 15″ woofer and 3″ HF compression driver for full-range, accurate sound.
  • Durable Construction: Birch plywood enclosure with weather-resistant DuraFlex™ coating.
  • Flexible Mounting: Integrated 20 x M10 rigging points allow easy installation in various orientations.
  • Low Distortion Design: Maintains sonic integrity even at high SPL levels.
  • Perfect for Permanent Installs: Designed for theaters, churches, performance halls, and auditoriums.





SPECIFICATIONS

SpecificationDetails
ModelJBL AE Series AM7315/95-WH
Speaker Type2-Way Full-Range Loudspeaker
Coverage Pattern90° Horizontal x 50° Vertical
Frequency Response45 Hz – 18 kHz (-10 dB)
Power Handling800W Continuous (3200W Peak)
Sensitivity (1W @ 1m)99 dB SPL
Maximum SPL128 dB Continuous / 134 dB Peak
Nominal Impedance8 Ohms
LF Driver15” Low-Frequency Woofer
HF Driver3” Compression Driver
Crossover Frequency1.2 kHz
Input ConnectorsNeutrik Speakon NL4 and Terminal Strip
Enclosure Material18 mm Birch Plywood with White DuraFlex™ Finish
Mounting Provisions20 x M10 Suspension Points
ApplicationsHouses of worship, performance halls, theaters
Dimensions (H x W x D)Approx. 762 x 457 x 508 mm
WeightApprox. 38.5 kg (85 lbs)
