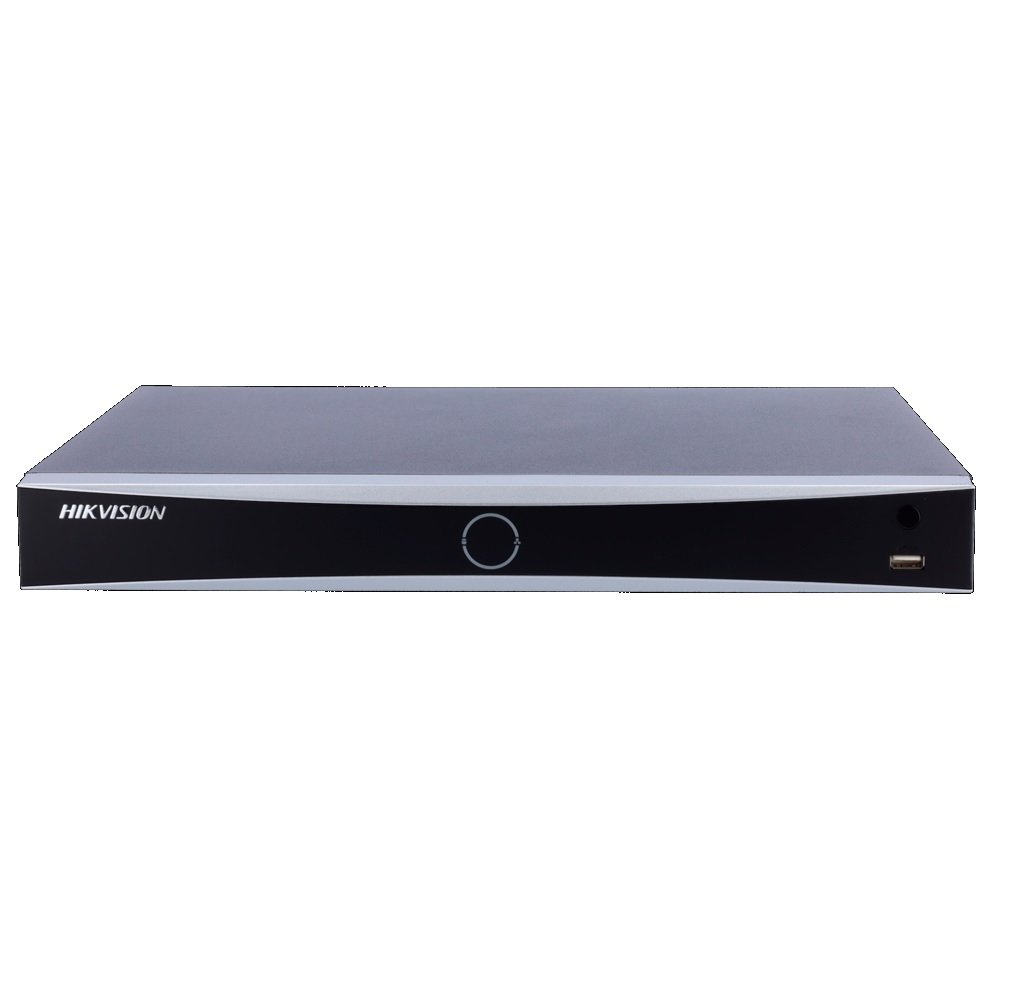

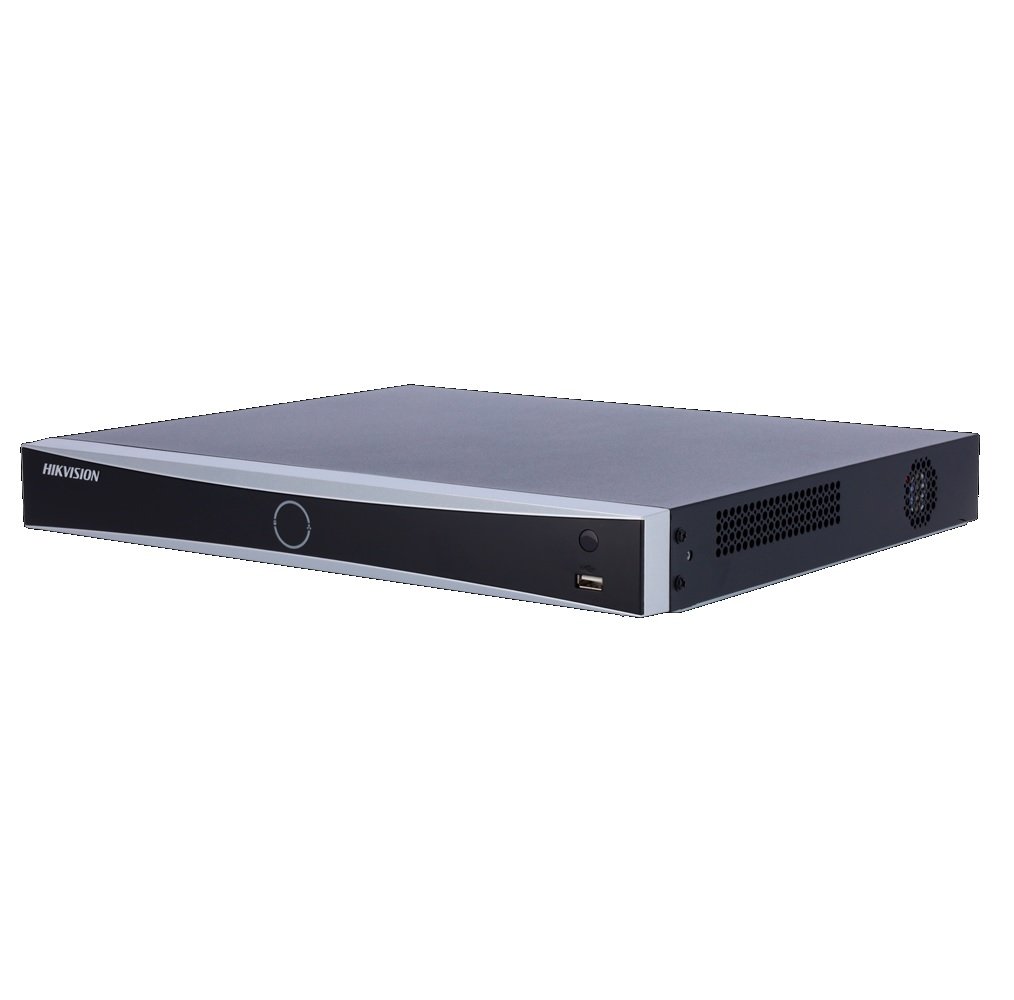

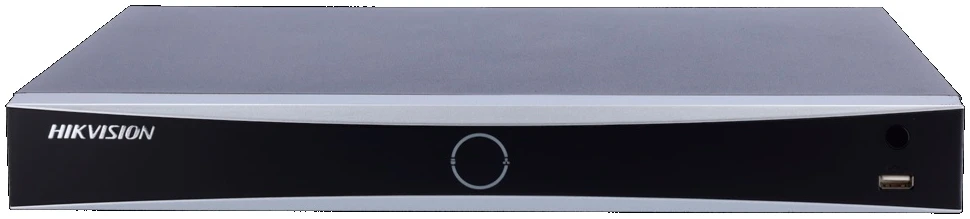

The Hikvision DS-7608NXI-K2/8P is a professional-grade 8-channel PoE 1U K Series AcuSense 4K NVR, engineered for high-performance video surveillance and intelligent security management. This NVR supports up to 8 PoE IP cameras, providing seamless power and data transmission over a single Ethernet cable, simplifying installation and reducing clutter. With support for 4K Ultra HD resolution, it delivers ultra-clear images, making it easier to monitor, detect, and analyze activities in real-time across commercial, industrial, and enterprise environments.
Equipped with AcuSense AI analytics, the NVR enables accurate human and vehicle detection, minimizing false alarms and enhancing the efficiency of security monitoring. It also offers advanced recording, playback, and multi-stream decoding capabilities, allowing simultaneous live viewing, recording, and remote access via Hik-Connect, iVMS-4200, or Hik-Central platforms. The unit includes flexible storage options with multiple SATA interfaces supporting up to 10 TB per HDD, ensuring long-term recording capacity for extensive surveillance operations.

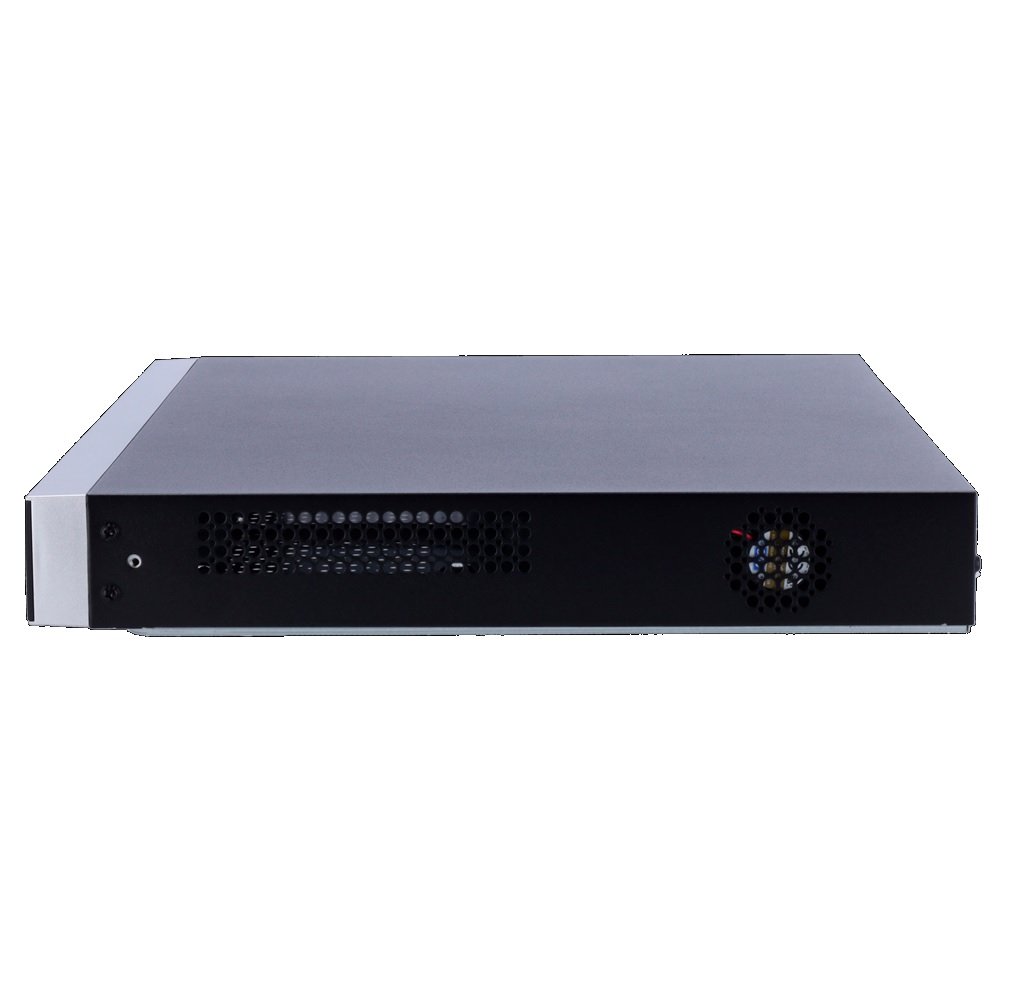

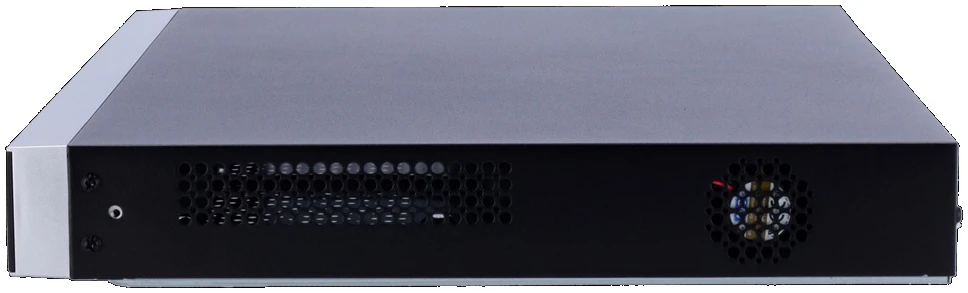

Designed for professional installations, this 1U rack-mountable NVR features a compact, robust chassis, low power consumption, and efficient cooling for 24/7 operation. It supports HDMI and VGA outputs, smart search, multi-channel playback, and comprehensive network protocols to integrate seamlessly into large-scale security or AV deployments. With a combination of high-resolution video, AI-driven analytics, and reliable PoE support, the DS-7608NXI-K2/8P is an ideal solution for modern, professional video surveillance systems.
Features
Key Feature
- Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12 ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Smart Function
- All channels support Motion Detection 2.0
- 2-ch video analysis for human and vehicle recognition to reduce false alarm
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
Adopt stream over TLS encryption technology which provides more secure stream transmission service
HD Video Output

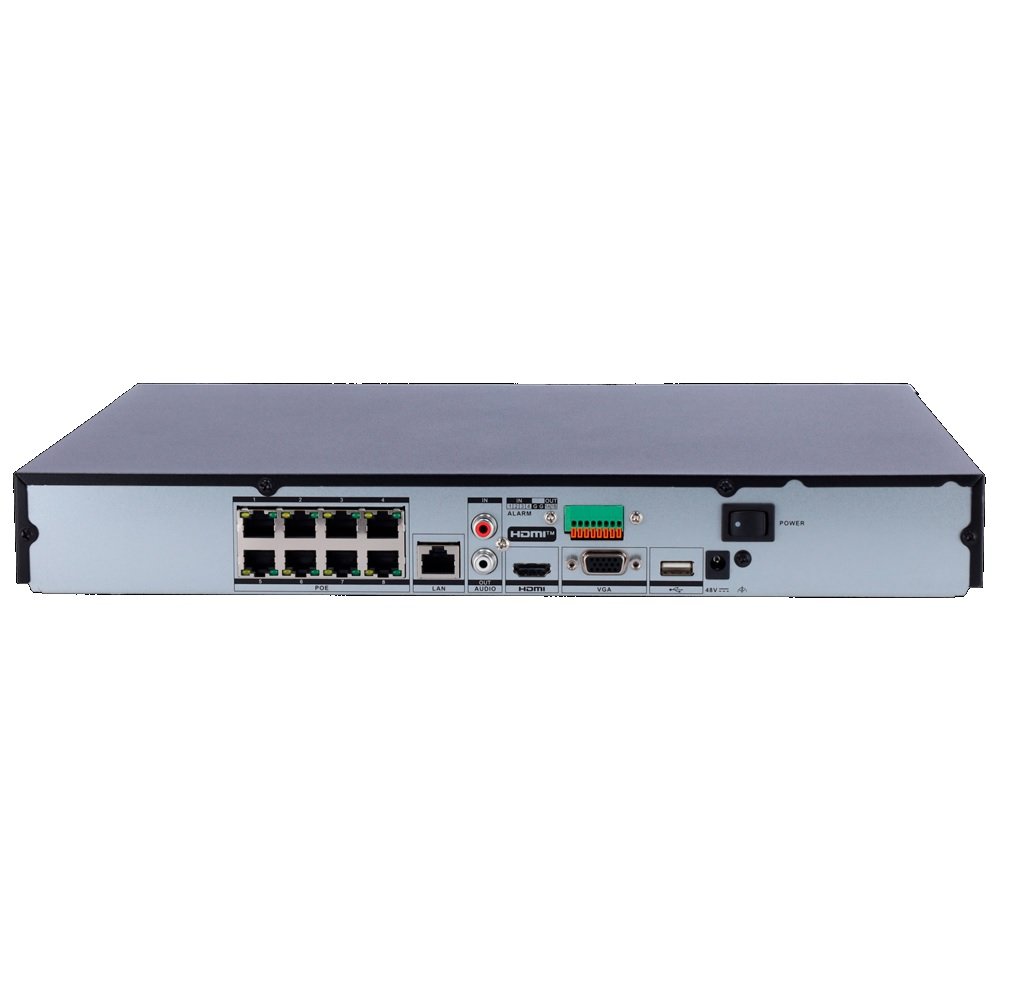

- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- Â 8-ch synchronous playback
Network & Ethernet Access
- 8 independent PoE network interfaces
1 self-adaptive 10/100/1000 Mbps Ethernet interface
Hik-Connect for easy network management
Specifications
| Category | Parameter | Specification |
|---|---|---|
| AI by Device | Facial Recognition | Facial recognition, perimeter protection, motion detection 2.0 |
| Extended Analytics | Facial recognition, perimeter protection, throwing objects from building, motion | |
| AI by Camera | Facial Detection & Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 libraries, 20,000 face pictures total (≤ 4 MB per picture, total ≤ 1 GB) | |
| Performance | By Device | 1-ch, 8 MP face picture comparison; 4-ch Motion Detection 2.0 |
| By Camera | All channels, 4 MP (up to 8 MP in enhanced SVC mode) for human/vehicle recognition | |
| Perimeter Protection | By Device | All channels |
| By Camera | 2-ch, 4 MP (HD network camera) human/vehicle recognition to reduce false alarms | |
| Video & Audio | IP Video Input | 8 channels |
| Incoming Bandwidth | 80 Mbps | |
| Outgoing Bandwidth | 160 Mbps | |
| HDMI Output | 1-ch: 4K/30 Hz, 2K/60 Hz, 1080p/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz | |
| VGA Output | 1-ch: 1920×1080/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz | |
| Video Output Mode | HDMI/VGA independent output | |
| CVBS Output | N/A | |
| Audio Output | 1-ch RCA (2.0 Vp-p, 1 KΩ) | |
| Two-Way Audio | 1-ch RCA (Linear, 1 KΩ) | |
| Decoding | Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous Playback | 8-ch | |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, AAC | |
| Network | Remote Connection | 128 |
| API | ONVIF (Profile S/G), SDK, ISAPI | |
| Compatible Browser | IE11, Chrome V57+, Firefox V52+, Safari V12+, Edge V89+ | |
| Protocol | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPâ„¢, HTTP, HTTPS | |
| Network Interface | 1 RJ-45 10/100/1000 Mbps (PoE) | |
| Auxiliary Interface | 2 × SATA (up to 10 TB per HDD), USB 2.0 front/rear, Alarm In/Out 4/1 | |
| Power | Supply | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD, PoE off) | |
| Environment | Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% | |
| Physical | Dimensions (W × D × H) | 385 × 315 × 52 mm (15.2″×12.4″×2.0″) |
| Weight | ≤ 3 kg (without HDD) | |
| Certification | Obtained | CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE |
