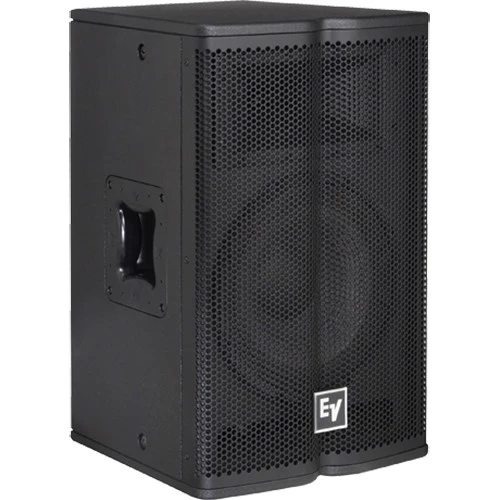

The Tour X Series 12″ Two-Way Full-Range Passive Loudspeaker from Electro-Voice is optimized for portable and fixed installation applications such as clubs, professional studios, and concerts. It features a high-sensitivity 12″ SMX2120 woofer and a 1.25″ 1.25″ DH3/2010A titanium high-frequency compression driver. The speaker has a 500W continuous (2,000W peak) power handling capability to provide a strong, distortion-free performance. Constant-directivity waveguide provides a 90 x 50° coverage pattern. The high-frequency compression driver is protected by an advanced fourth-order crossover.
The steel grille protects the driver elements and provides a sleek look. Integrated multi-grip handles provide convenient transportation. The enclosure features six 3/8″ threaded points for eyebolt suspension. A pole mount socket lets you mount the unit on a standard speaker pole.
Features
Specifications
| Active or Passive | Passive |
| Frequency Response | 60 Hz to 20 kHz at -3 dB 45 Hz to 20 kHz at -10 dB |
| Frequency | Recording Hi-Pass: 45 Hz |
| Power Capacity | Continuous: 500 W Peak: 2,000 W |
| Maximum Sound Pressure Level (SPL) | 130 dB |
| Nominal Sensitivity | 97 dB, 1 W/1 m |
| Coverage | 90° x 50° (H x V), nominal -6 dB |
| Impedance | Nominal (Passive): 8 Ohms Minimum: 5.4 Ohms |
| Crossover | 1,750 Hz |
| Low Frequency Driver | 12″ (30 cm) SMX2120 |
| High Frequency Driver | 1.25″ (3.18 cm) DH3/2010A |
| Enclosure Material | Plywood and MDF with EVCoat |
| Grille | 16 ga steel, powder-coated, with rotatable logo |
| Input Connections | 2 x parallel Neutrik NL4 |
| Suspension Attachment | Six 3/8″ threaded inserts (2 on each side and 2 on the rear side of the enclosure) |
| Dimensions | 24.25 x 15.04 x 14.96″ (616 x 382 x 380 mm) |
| Weight | 44.5 lb (20.2 kg) |
| Package Weight | 53 lb |
| Box Dimensions (LxWxH) | 25.5 x 17 x 17″ |
