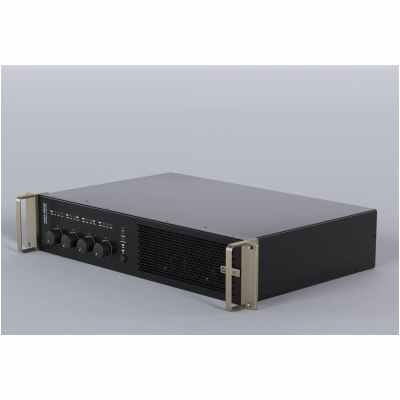

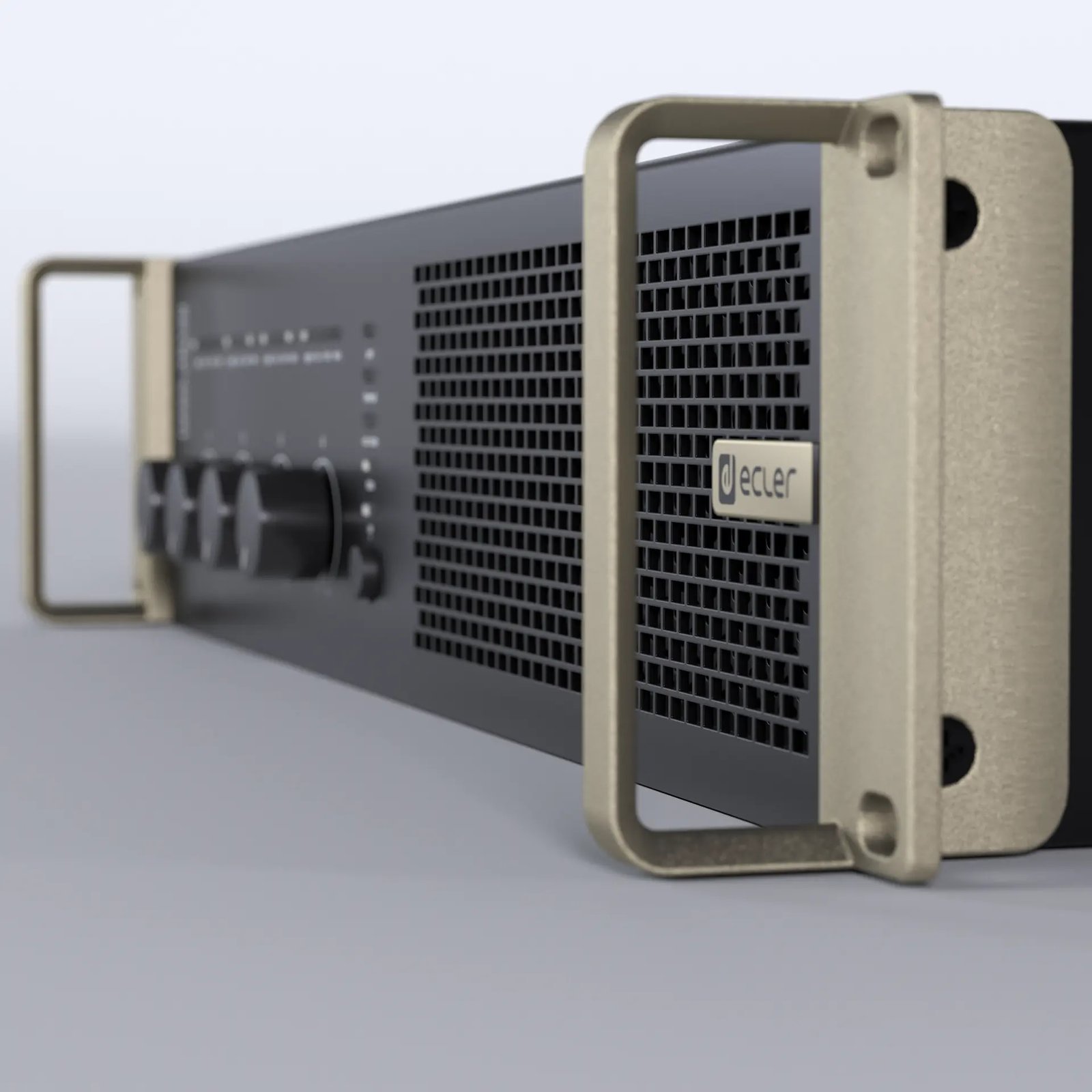

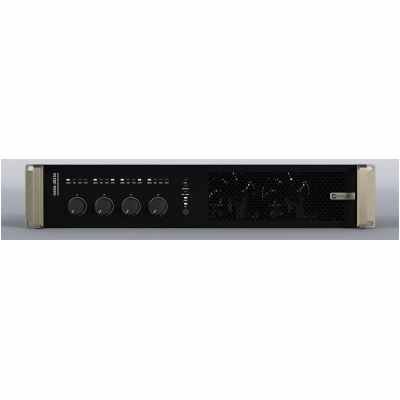

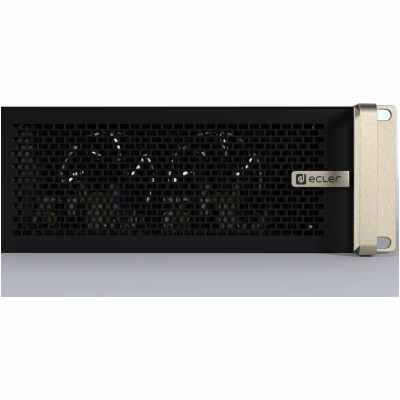

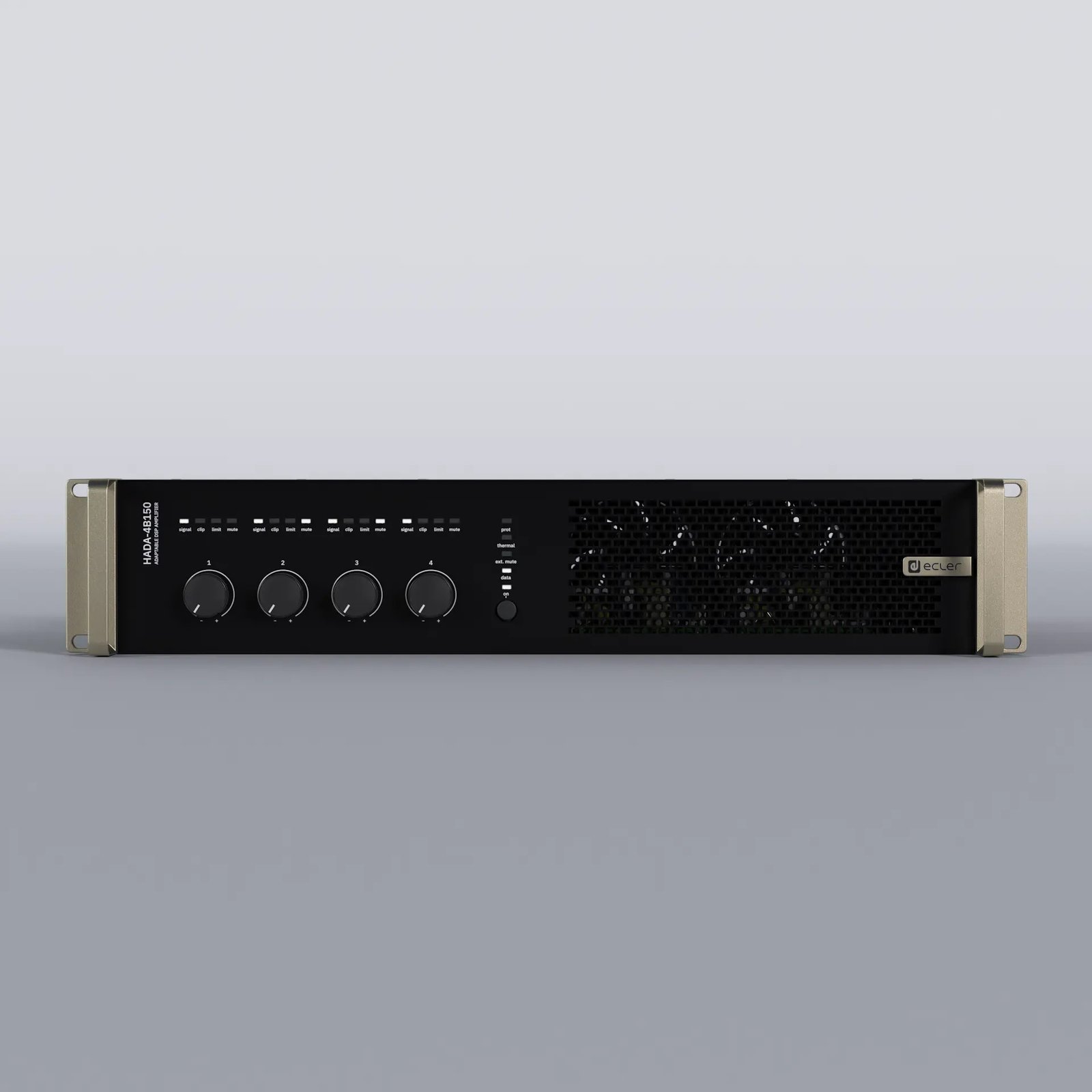

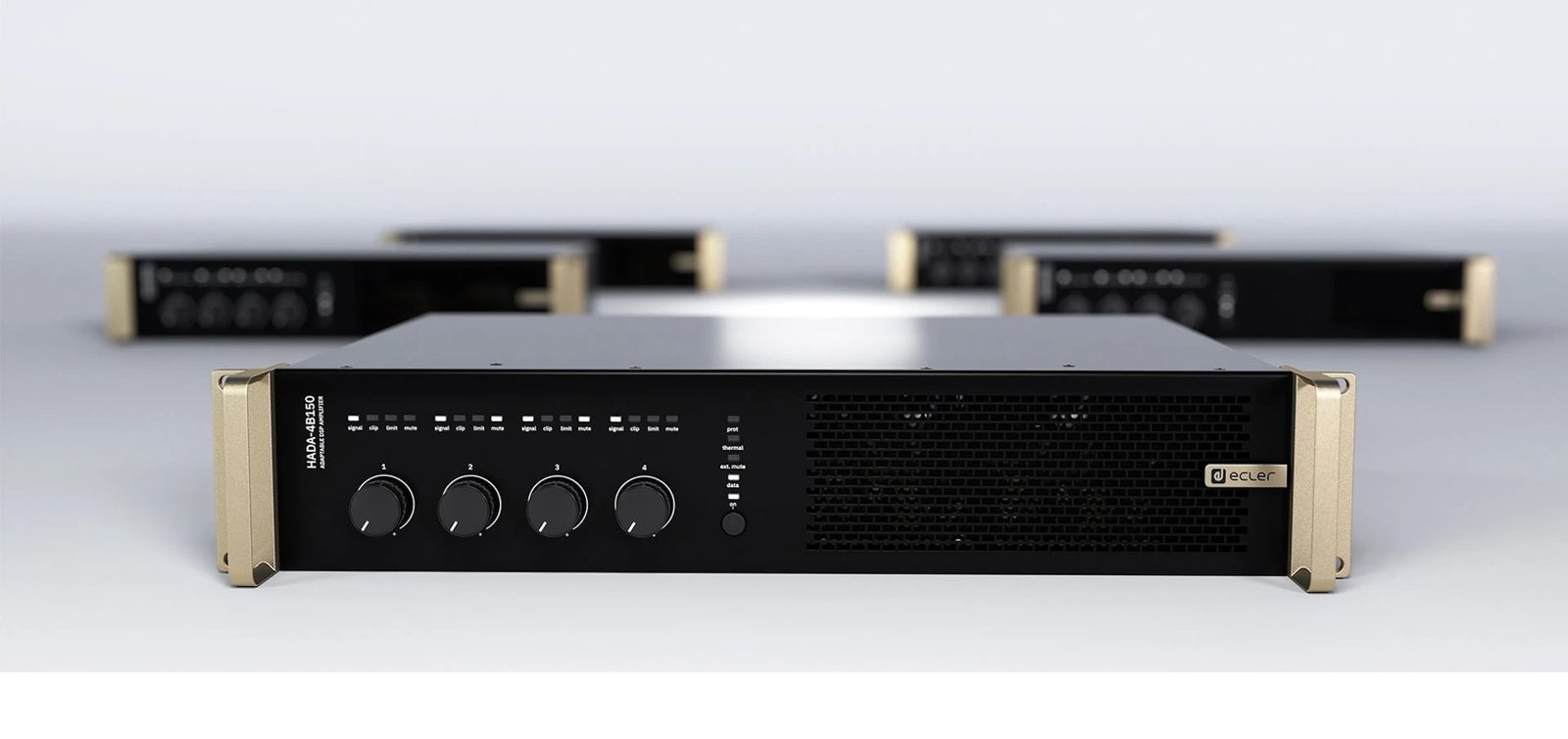

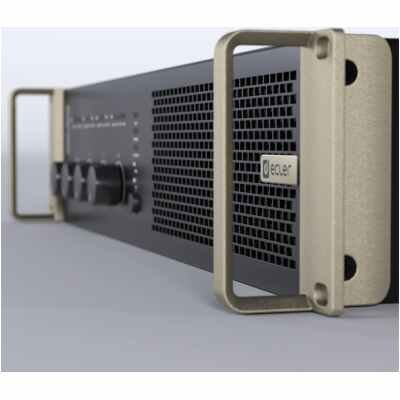

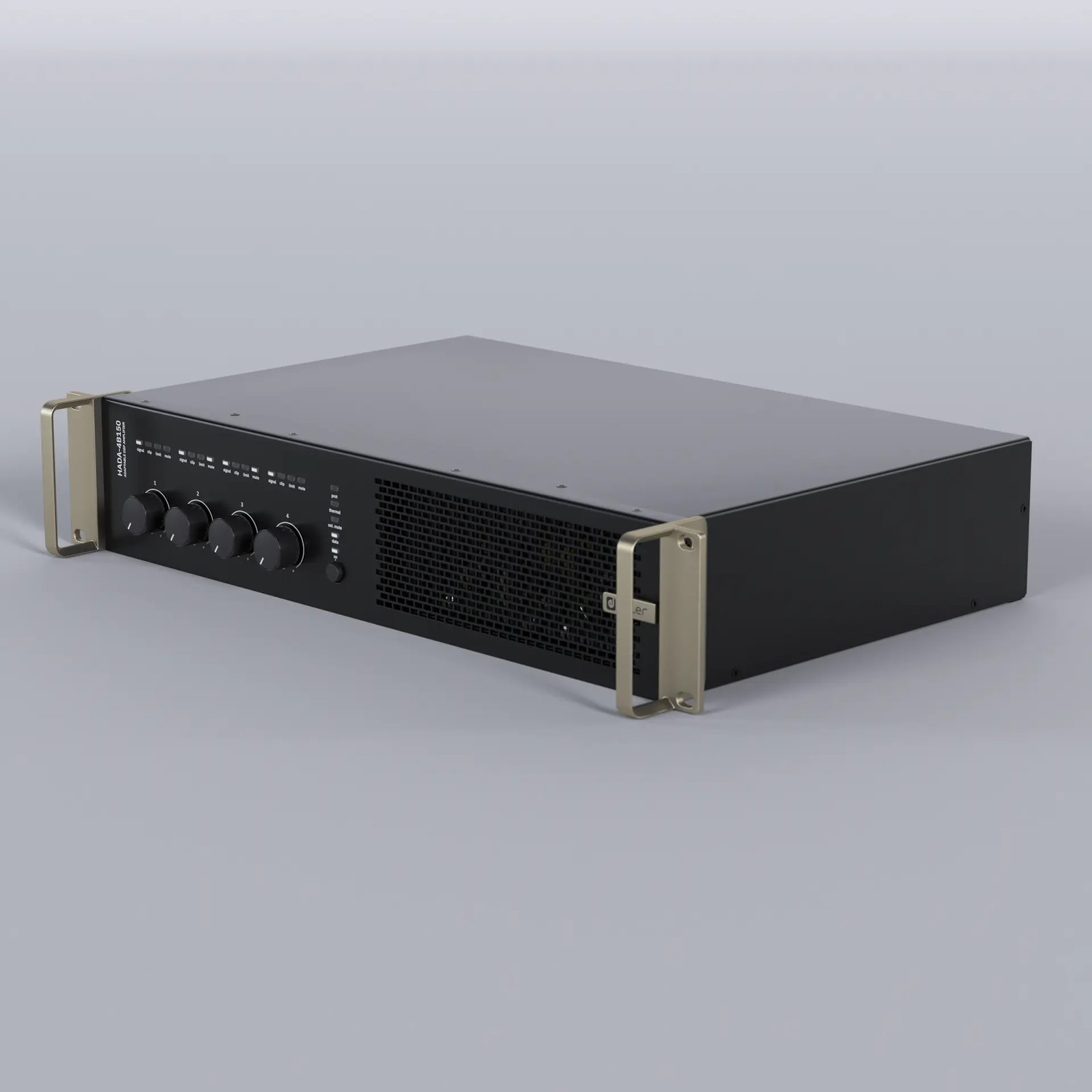

Ecler HADA-4B150 DSP Amplifier 4x125W, LoZ/HiZ Compatible, Networkable Audio Amp with DSP Control

Ecler HADA-4B150 is a 4x125W digital amplifier that supports low and high impedance loads. The internal DSP, through the DSP Manager software, allows tailoring the input and output signal through parametric EQs, multi-band compressors, limiters, and delays and each configuration can be saved as a preset. In addition to the software option, input levels can be controlled via the front panel potentiometers, via remote controls using the rear panel GPI, or via a TCP/IP from third party control systems. All HADA series amplifiers include efficient thermal protection, DC protection, over current protection, and HF protection for total reliability in any kind of installation.

FEATURES

• 4 x 125W outputs @ 4ohms.
• 2 x 250W @ HiZ (100/70V) in bridge mode.
• 4 analogue inputs on Euroblock connectors.
• 4 GPI for remote volume control.
• 1 External Mute.
• Internal matrix mixer and signal processing.
• HADA DSP Manager software for device configuration and control.
• Third party control via TCP/IP

APPLICATIONS

Education   Corporate   Leisure   Sports & Wellness   Hospitality

SPECIFICATIONS

• Amplifier Class: Class D
• Output Power:
  • 125W per channel at 4Ω (all channels driven at 1% THD)
  • 250W in bridge mode at 8Ω
  • 250W at 70V and 100V in bridge mode
• Input Channels: 4 analog input channels
• Input Type: Balanced, 3-pin Euroblock connectors (3.5mm pitch)
• Output Channels: 4 amplified outputs
• Output Type: 2-pin Euroblock connectors
• Output Configuration: Selectable Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω per channel or pair via software (HADA DSP Manager)
• Voltage Gain: 27 to 37 dBV
• Input Sensitivity: -12 to +12 dBV
• Input Impedance: 21kΩ (balanced)
• Maximum Input Level: +22 dBV
• Frequency Response: 20Hz – 20kHz (-3dB, 1W any load)
• Total Harmonic Distortion + Noise (THD+N): <0.01% (typical)
• Crosstalk:


  60 dB at 1kHz

• Sampling Rate: 96 kHz
• Audio Resolution: 24-bit
• Dynamic Range: 113 dB
• Latency: 500 µs (analog IN to analog OUT)

Electrical & Power

• Power Supply: Universal SMPS with Power Factor Correction (PFC)
• AC Mains Requirement: 100–240V @ 50–60Hz (±10%)
• Power Consumption:
  • 277W at 1/4 power (all channels driven at 4Ω)
  • 145W at 1/8 power (all channels driven at 4Ω)
  • 14.5W in idle mode
  • 8.5W in standby mode

Control & Connectivity

• Local Control: Front panel potentiometers for input level adjustment
• Remote Control:
  • 4 General Purpose Inputs (GPI) for remote volume control
  • 1 external mute switch
  • Ethernet (RJ45) for remote control via TCP/IP
• Software: HADA DSP Manager for device configuration and control

Protection Features

• Thermal protection
• DC protection
• Overcurrent protection
• Radio Frequency (RF) protection

Physical & Environmental

• Rack Mountable: 19-inch, 2U height
• Dimensions (WxHxD): 482.6 x 88 x 281.5 mm
• Weight: 4.7 kg
• Operating Temperature: 0°C to 40°C (power may be reduced above 40°C)
• Operating Humidity: 5% to 80% relative humidity, non-condensing
• Storage Temperature: -10°C to 50°C
• Storage Humidity: 5% to 85% relative humidity, non-condensing
