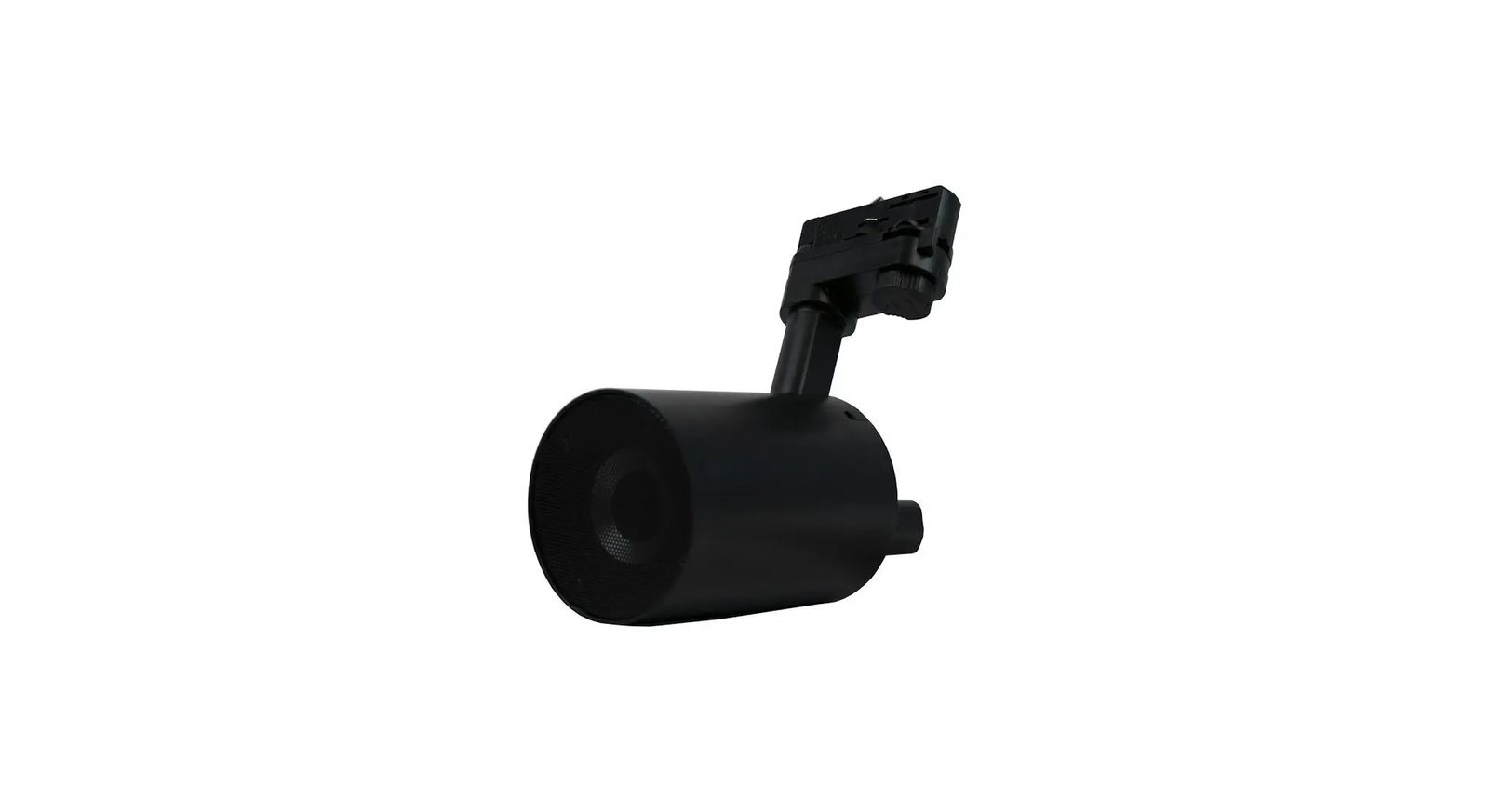

WiSpeak TUBE is a self-powered 3″ lamp style loudspeaker with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails.
FEATURES
- Lamp style self-powered WiSpeak receiver, including 3” driver
- Lighting rail mount included
- Surface mount accessory available, optional (ref. TUBE SMA)
- Universal, internal power supply, taking mains AC from the lighting rail bracket (100-240VAC 50-60Hz)
- 1 x WiSpeak wireless audio signal received, from the transmitter it is paired to
- 1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal). It can be used for linking the unit to another WiSpeak transmitter, to extend the network, or to external audio devices, such as amplifiers, mixers or subwoofer units
- Back panel UNPAIR control and LED indicators
APPLICATIONS – Retail Education Corporate Sports & Wellness Hospitality
SPECIFICATIONS
WiS (RF WIRELESS DIGITAL AUDIO)
Frequency band
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support
Up to 24 non-overlapping RF channels
DFS support
Coverage range
Up to 12m from a TX to any paired RX, direct
line of sight
line of sight
Audio channels
WiSpeak CH1 / CH2
Audio transmission
24bit uncompressed, 48kHz SR
Digital Audio Sample size
24 bits
Digital Audio Sampling rate
48kHz
Digital Audio Frequency Response
20Hz – 20kHz (-0.1dB)
Digital Audio converters
DAC Resolution: 24 bit
DAC Dynaimic range: 100dB
DAC Dynaimic range: 100dB
Latency
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us
Pairing time
Up to 120s
Reconnection time
Up to 120s
SYSTEM
Effective Freq. Range
105 – 20kHz (-10dB)
Coverage angle
180×180 (HxV)
Sensitivity
83 dB (1W/1m)
Maximum SPL
96 dB continuous / 102 dB peak
TRANSDUCERS
Ways
1-way
Driver
3” driver
Nominal impedance
4?
POWERED
Power
18 W RMS / 72 W Peak
Audio inputs
CH1 / CH2: Digital, Mono, RF Wireless Audio
Audio outputs
Internal Loudspeaker: Analog, Mono, Self powered
AUX OUT: Analog, Mono, Balanced, Euroblock
AUX OUT: Analog, Mono, Balanced, Euroblock
THD + Noise
<0.15% @1kHz Full power
Signal Noise Ratio
>95dB at RX AUX OUT
Input sensitivity
0dBV / 10k?
ELECTRICAL
Power supply
Universal, internal power supply
AC mains requirement
100-240VAC @ 50-60Hz
AC mains connector
From lighting rail bracket
Power consumption
15W (rated)
MONITORING AND CONTROL
Volume control
via WiSpeak grip app.
Other controls
SOLO: via WiSpeak grip app
ID TEST SIGNAL: via WiSpeak grip app
PAIR / UNPAIR: via WiSpeak grip app and
Panel button
ID TEST SIGNAL: via WiSpeak grip app
PAIR / UNPAIR: via WiSpeak grip app and
Panel button
LED Indicators
WiS and STR LEDs
Programing and control
WiSpeak grip app
PHYSICAL
Connection type
Ceiling rail AC connection
Installation options
Ceiling light rails, or suface using TUBE SMA
Certifications
FCC, EMC
Mounting system
Lighting rail mount compatible
Pan and tilt wall-mount
Swivel (pan and tilt)
Rail fixing system
4 wire 3 circuit track system compatible
Compatible rail systems
Global Trac Pro or compatibles
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Included accessories
Lighting rail mount
Optional accessories
Surface mount accessory (TUBE SMA)
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
96 x 130 mm / 3.8 x 5.1 in. (∅xD)
Weight
0.8 kg / 1.76 lb
Pieces per box
1 unit
Shipping dimensions
195 x 185 x 245 mm / 7.68 x 7.28 x 9.65 in. (WxHxD)
Shipping weight
1.12 kg / 2.47 lb
