The Ecler AURA-8L150 is a professional-grade, high-efficiency multichannel amplifier designed for demanding commercial and installation audio environments. Delivering 8 channels of 150W RMS @ 4Ω using advanced Class D technology, it combines exceptional sound performance, energy efficiency, and compact fanless design—ideal for large-scale distributed audio systems.

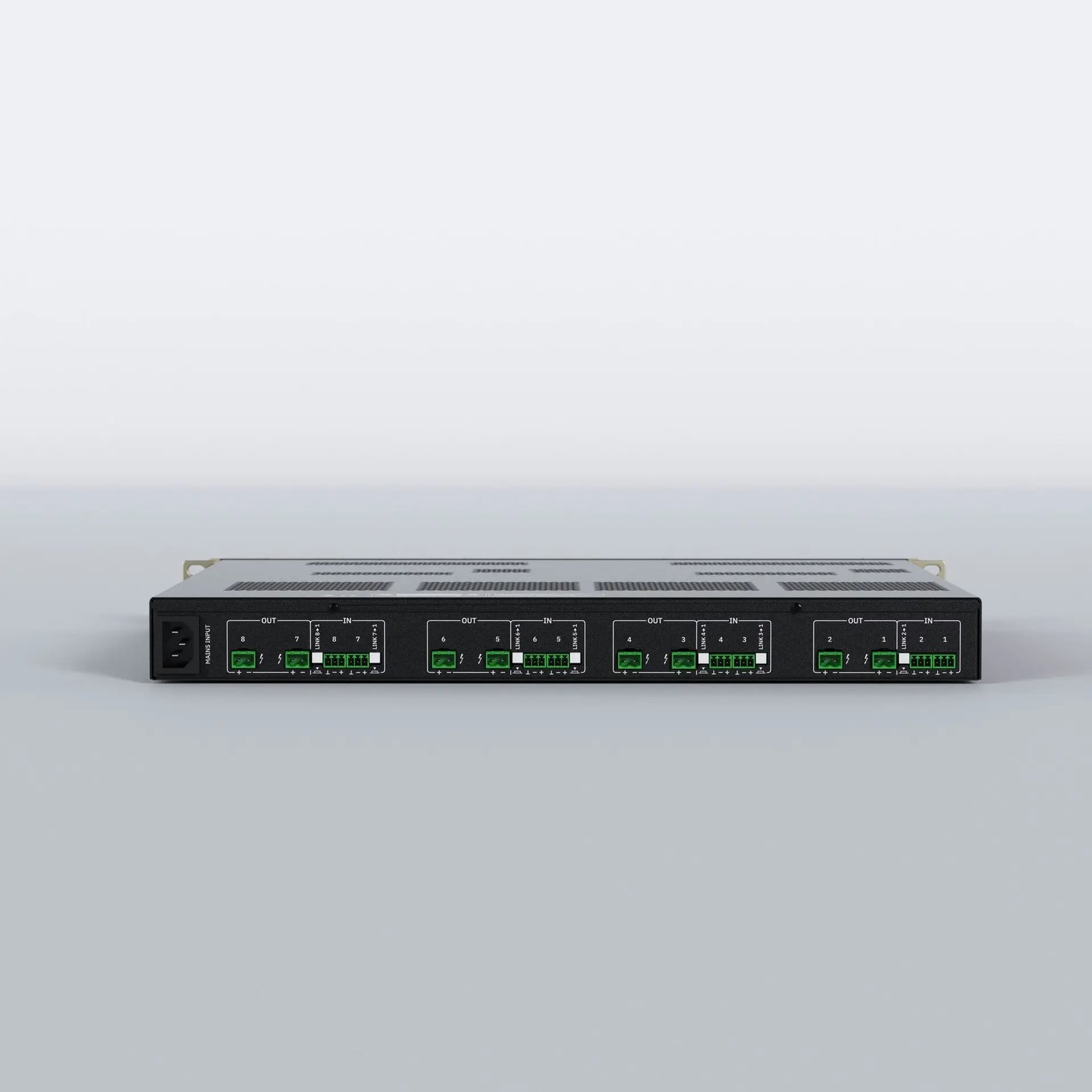

Built for flexibility and reliability, the AURA-8L150 features both balanced analogue inputs and Euroblock output connectors, with input link selectors to streamline integration in complex setups. The amplifier’s universal power supply with power factor correction (PFC) ensures stable operation across a wide range of voltages (100–240V), while keeping energy consumption optimized—especially when paired with its Auto Standby mode, which reduces power use during inactivity.
Engineered with precision, the AURA-8L150 boasts a frequency response of 15 Hz – 30 kHz, ultra-low THD (<0.01%), and a high signal-to-noise ratio (100 dBA), ensuring clean and accurate sound across all channels. Multiple layers of protection—including short-circuit, thermal, HF, clip limiting, and DC protection—safeguard your system under all conditions.
Its fanless convection cooling system allows for silent operation, making it perfect for installations where noise must be minimized, such as conference rooms, museums, retail spaces, and hospitality venues.

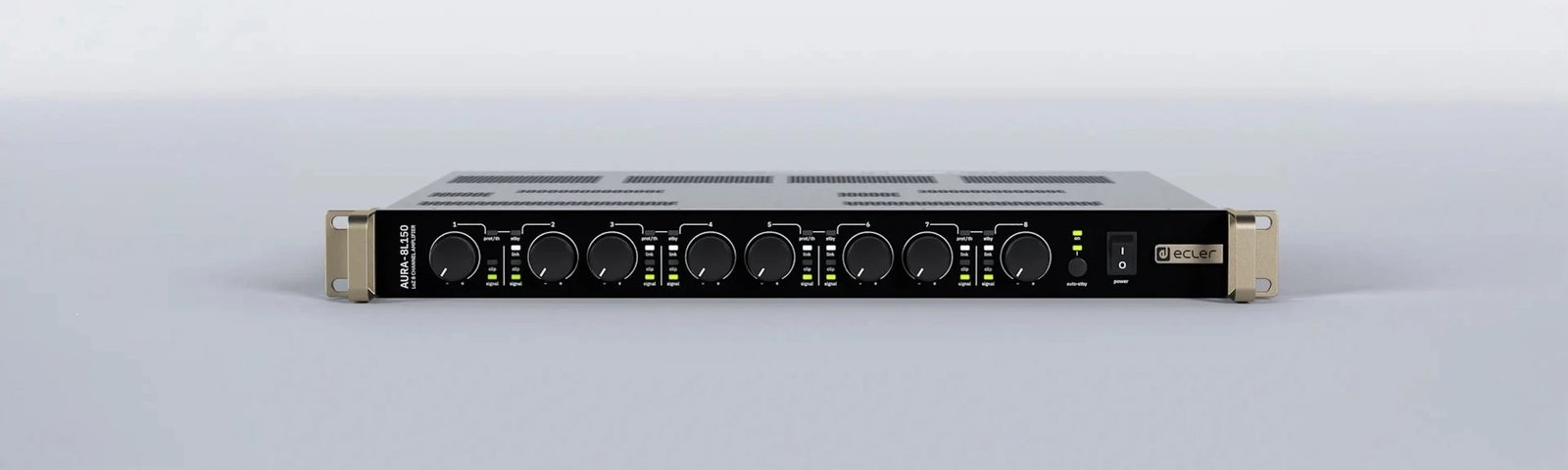

With an ultra-slim 1U rack-mountable chassis and intuitive front-panel controls for attenuation, status LEDs, and standby switching, the Ecler AURA-8L150 is built for ease of use and long-term performance.
FEATURES
- 8 analogue audio inputs and 8 x150 WRMS @ 4 Ω powered audio outputs.
- Euroblock input and output connectors.
- Link to input 1 available.

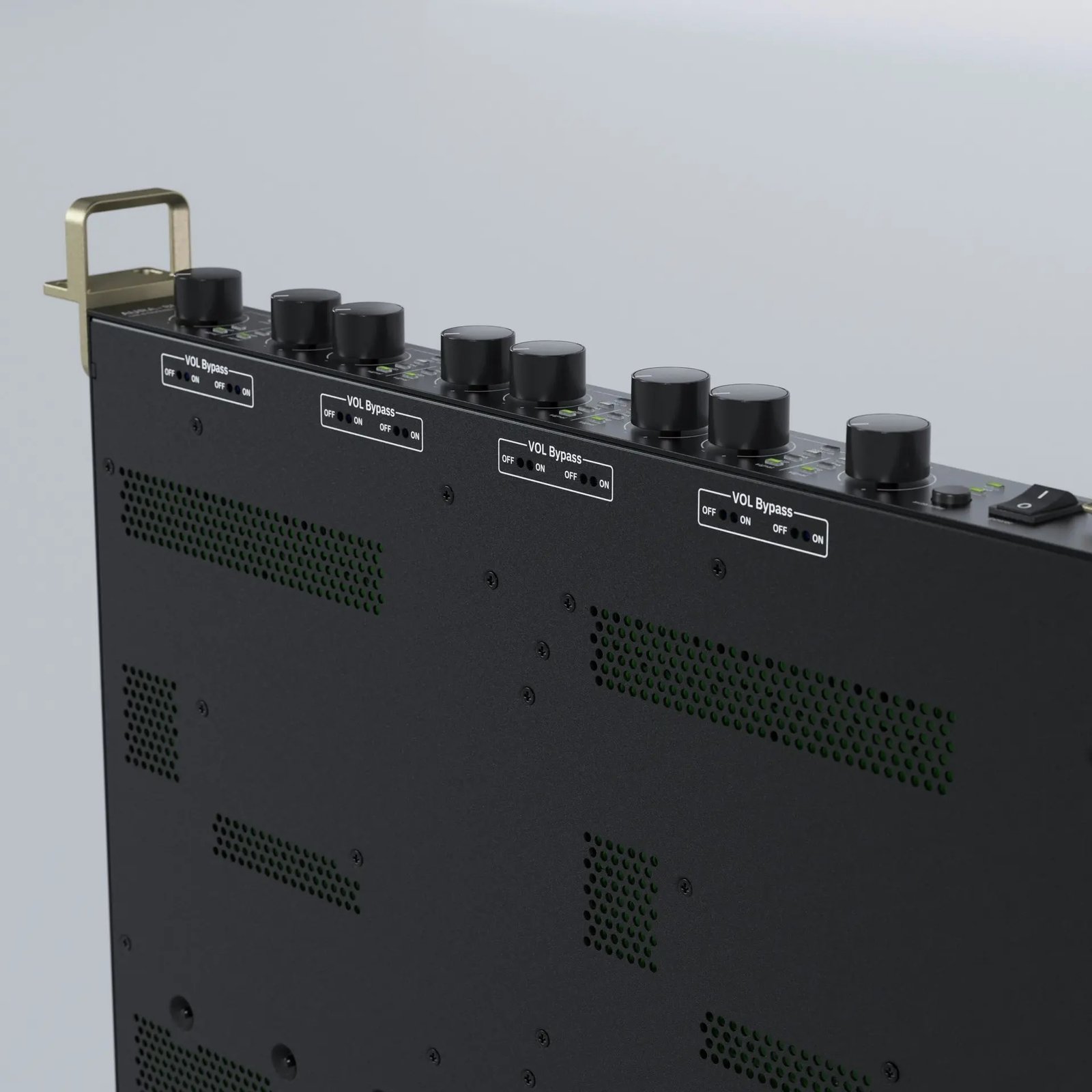

- Volume control knobs on front panel, that can be blocked via switches accessible from the bottom cover.
- High efficiency, auto stand-by function and convection cooling (fanless, 100% silent).
- Thermal protection.
- Overload protection.
- Anti-clip system.
APPLICATIONS
SPECIFICATIONS
| Category | Specification |
|---|---|
| Channels | |
| Output Channels | 8 |
| Output Connection Type | 2-pin Euroblock (Pitch: 5 mm) |
| Input Channels | 8 |
| Input Connection Type | 3-pin Euroblock (Balanced, Pitch: 3.5 mm) |
| Input Configuration | Input link to CH1 selector per input |
| Output Power (All Channels Driven @ 1% THD) | |
| Max Output @ 8Ω | 75 W |
| Max Output @ 4Ω | 150 W |
| Signal | |
| Voltage Gain | 27.8 dB |
| Input Sensitivity | 0 dBV / 2.21 dBu / 1 Vrms |
| Input Impedance | >500 kΩ (Balanced) |
| Max Input Level | +12 dBV / 14.21 dBu |
| Frequency Response | 15 Hz – 30 kHz (-3 dB, 1W @ 4Ω) |
| THD + Noise | < 0.01% (1W to full power @ 4Ω) |
| SNR | 100 dBA (20 Hz – 20 kHz) |
| Crosstalk | >80 dB (@ 1 kHz) |
| CMRR | >55 dB Typ (20 Hz – 20 kHz) |
| Damping Factor | >150 (DF @ 8Ω, 20 Hz – 400 Hz) |
| Electrical | |
| Power Supply | Universal regulated SMPS with PFC |
| AC Mains Requirement | 100–240 V ~ 50/60 Hz (±10%) |
| Power Factor Correction | >0.92 (Output > ¼ Max Output Power) |
| AC Mains Connector | IEC C14 inlet (10A max) |
| Power & Heat (230VAC) | |
| ¼ Power @ 4Ω | 391.8 W / 424.9 VA / 1.853 Arms / 79.29 kcal/h / 314.68 BTU/h |
| ? Power @ 4Ω | 217.7 W / 246.3 VA / 1.073 Arms / 58.08 kcal/h / 230.51 BTU/h |
| Idle | 34.6 W / 66.9 VA / 0.291 Arms / 29.76 kcal/h / 118.09 BTU/h |
| Standby/Sleep | 24.0 W / 54.5 VA / 0.237 Arms / 20.64 kcal/h / 81.91 BTU/h |
| Power & Heat (120VAC) | |
| ¼ Power @ 4Ω | 400.8 W / 408.5 VA / 3.592 Arms / 86.96 kcal/h / 345.12 BTU/h |
| ? Power @ 4Ω | 221.9 W / 227.6 VA / 1.992 Arms / 61.70 kcal/h / 244.85 BTU/h |
| Idle | 34.7 W / 41.47 VA / 0.361 Arms / 29.84 kcal/h / 118.43 BTU/h |
| Standby/Sleep | 24.36 W / 31.9 VA / 0.278 Arms / 20.95 kcal/h / 83.14 BTU/h |
| Technologies | |
| Amplification Type | Class D |
| Energy Saving | Auto Standby (selectable by channel pair) |
| Efficiency | 76% (¼ Power @ 4Ω, 230VAC) |
| Cooling | Convection (fanless) |
| Protections | DC, HF, Short-Circuit, Clip Limiter, Thermal Protection |
| Local Control | |
| Attenuators | Front panel knobs per channel (VOL/BYPASS switchable at bottom) |
| Run/Sleep Mode | Auto Standby (per unit with -50dB/-40dB trigger, 60 sec timer) |
| Power ON/OFF | Front panel switch with green LED |
| Monitoring | |
| Signal Present | Green LED per channel (trigger @ -40 dBV) |
| Clipping | Red LED per channel |
| Protect | Red PROT LED (by channel pairs) |
| Standby | Green LED (per unit), Orange LED (by pairs) |
| Thermal | Orange TH LED (by pairs, combined with PROT) |
| Power On | Green ON LED (per unit) |
| Link | White LINK LED per channel |
| Physical | |
| Operating Temp | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | 5–85% RH (non-condensing) |
| Storage Temp | -10°C to 50°C (14°F to 122°F) |
| Storage Humidity | 5–85% RH (non-condensing) |
| Included Accessories | Rear rack support |
| Dimensions (WxHxD) | 482.6 x 44 x 414 mm / 19 x 1.73 x 16.29 in. |
| Weight | 6.3 kg / 13.9 lb |
| Shipping Dimensions (WxHxD) | 590 x 75 x 585 mm / 23.23 x 2.95 x 23.03 in. |
| Shipping Weight | 8.35 kg / 18.41 lb |
