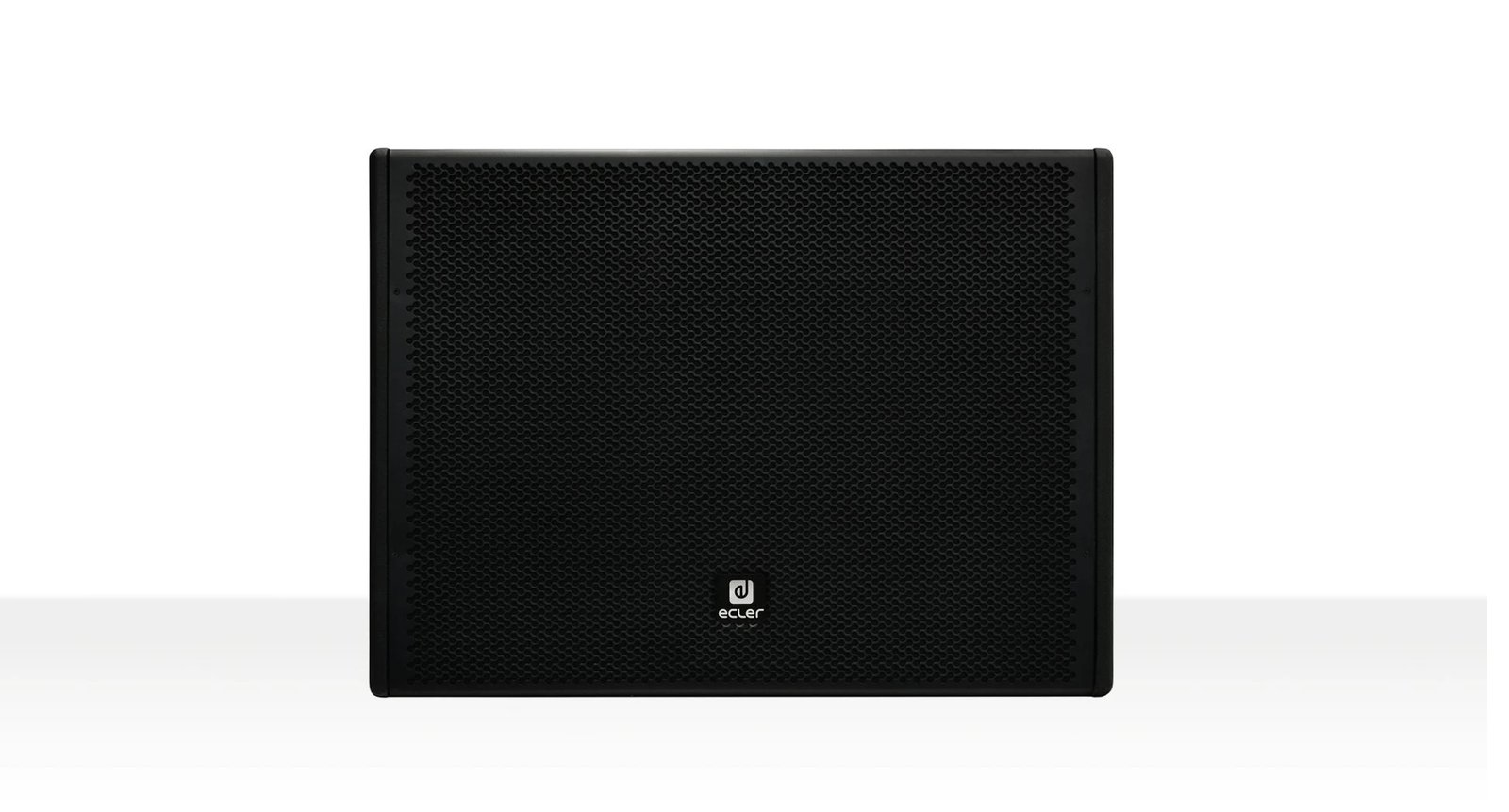

The Ecler ARQISSB10i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 10″ LF driver (150 WRMS @ 8? ) and internal LPF with 2 frequency settings. 12 x M8 rigging points and wall bracket included. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior’s design matching is a must.
FEATURES
- Subwoofer, 1-way architectural loudspeaker
- 150 WRMS @ 8?
- 1 x 10″ low frequency woofer
- Euroblock connector and spring loaded input terminals
- Wall bracket included
- 12 x M8 cabinet flying points
- Available in white (RAL9003) and black (RAL 9005) colour
- EASE files available
APPLICATIONS
Retail Education Corporate Leisure Sports & Wellness Hospitality
SPECIFICATIONS
- Type: 1-way passive subwoofer
- Power Handling: 150 W RMS / 600 W peak
- Frequency Response: 54 Hz – 4 kHz (-10 dB)
- Sensitivity: 92 dB (1W/1m)
- Maximum SPL: 114 dB continuous / 120 dB peak
- Nominal Impedance: 8 Ω
- Driver: 1 x 10″ low-frequency woofer
- Low-Pass Filter: Internal LPF with selectable cut-off frequencies: OFF / 120 Hz / 150 Hz
- Connectors: Euroblock connector and spring-loaded input terminals
- Mounting Options:
- Wall mount hardware included
- 12 x M8 flying points for suspended installations
- Environmental Rating: IP31
- Finish: White (RAL 9003)
- Dimensions: 600 x 442 x 228 mm
- Weight: 16.5 kg
