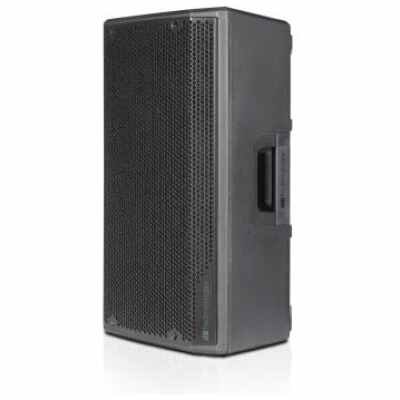

The OPERA 10 from dBTechnologies redefines what’s possible in an affordable active speaker, offering exceptional power, pristine sound, and a sleek, user-friendly design. Tailored for musicians, DJs, and sound professionals, this 2-way active speaker is ideal for both live performances and high-fidelity playback.
Driven by a powerful 600 W Class-D amplifier and supported by 1200 W peak power, the OPERA 10 delivers a maximum SPL of 128 dB, offering robust sound pressure and clarity across the frequency spectrum. With its 10” woofer and 1” compression driver, the system produces tight lows and crisp highs with accurate transient response, supported by a precision-designed asymmetrical horn.
The horn’s unique geometry ensures an optimized sound throw, with horizontal dispersion of 100° (85° up / 120° down) and vertical dispersion of 85° (+25°/-60°)—providing consistent coverage in any venue. This makes the OPERA 10 exceptionally adaptable, whether used on a stand, as a floor monitor, or in an installed setting.
Advanced 56-bit DSP processing includes linear phase FIR filters for phase-coherent sound, while an 8-position rotary preset selector allows for quick adaptation to different environments or program materials. Inputs include dual combo jacks for mic, line, or instrument sources, and an XLR output allows flexible linking or mixing options.
Housed in a rugged yet lightweight polypropylene enclosure, the OPERA 10 is easy to transport and rig, featuring handles, M10 rigging points, and a 36mm pole mount. At just 12.3 kg, it offers powerful performance in a highly portable package—ideal for mobile performers, fixed installs, or rental use.
Features:
-
Max SPL: 128 dB
-
600 W RMS Class D Amplifier (1200 W Peak)
-
10” Woofer and 1” Compression Driver
-
Asymmetrical Horn with Wide Dispersion
-
56-bit DSP with FIR Filters
-
8 Factory Presets via Rotary Encoder
-
Dual Combo Inputs for Mic/Line/Instrument
-
Rugged Lightweight Polypropylene Cabinet
-
Versatile Use: Stand Mount, Wedge, or Rigging
Specifications:
| Category | Details |
|---|---|
| Speaker Type | 2-Way Active Speaker |
| Frequency Response | 58 – 20,000 Hz (-10 dB), 70 – 19,600 Hz (-3 dB) |
| Max SPL | 128 dB |
| HF Driver | 1″ Exit, 1.4” voice coil Compression Driver |
| LF Driver | 10″, 2″ voice coil |
| Horizontal Dispersion | 100° (85° up / 120° down) |
| Vertical Dispersion | 85° (+25°/-60°) |
| Horn | Asymmetrical Horn |
| Amplifier Type | Class D with SMPS dual-range supply |
| RMS / Peak Power | 600 W / 1200 W |
| DSP | 56-bit DSP, 24-bit/48kHz AD/DA |
| Advanced Processing | Linear Phase FIR Filters |
| Crossover Frequency | 2000 Hz |
| Limiter | Peak, RMS, Thermal |
| Input | 2x Combo (XLR/Jack 6.3 mm) – MIC/Line/Inst |
| Output | 1x XLR Male (CH1 Link/Mix OUT) |
| Controls | Gain, Rotary Preset Encoder (8 Presets) |
| Housing Material | Polypropylene |
| Grille | Full grille |
| Handles | 1 on Left Side, 1 on Top |
| Rigging Points | 2x M10 Top, 1x M10 Back |
| Pole Mount | D36 mm |
| Monitor Angle | 45° |
| Dimensions (WxHxD) | 300 x 552 x 301 mm |
| Weight | 12.3 kg (27.12 lbs) |
