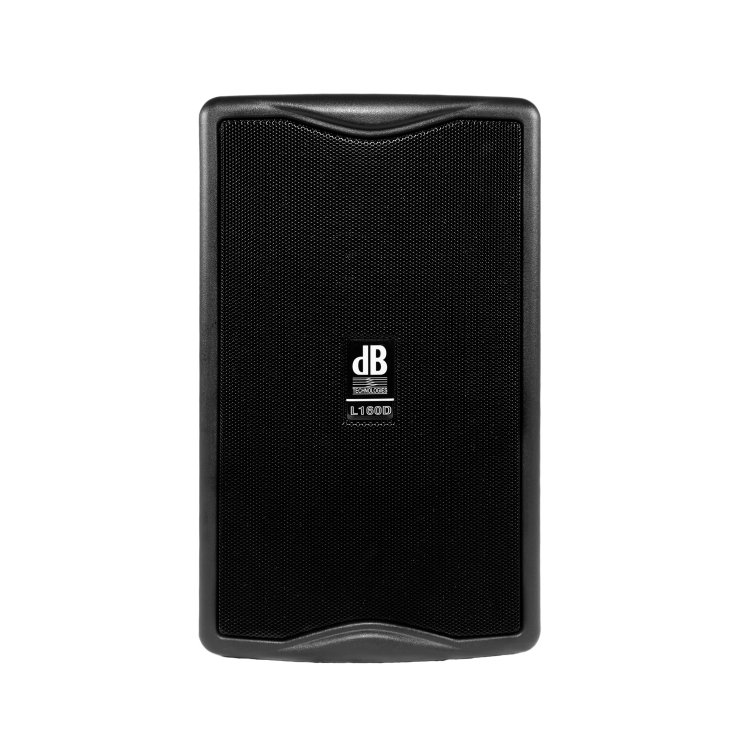

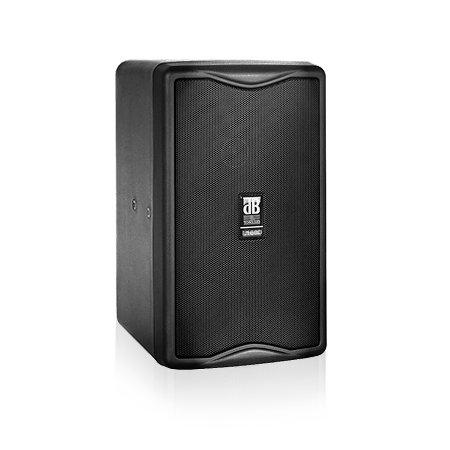

The DB Technologies L 160 D is a high-performance 2×5″ active PA speaker engineered to deliver impressive sound output and clarity in a remarkably compact and lightweight form. Designed for multimedia applications, portable setups, and fixed installations, this speaker packs professional features into a user-friendly enclosure that weighs just 5.2 kg.
Equipped with two 5-inch phase-corrected woofers and a coaxial 1-inch dome tweeter, the L 160 D produces detailed, transparent audio with high sound pressure levels, reaching up to 116 dB SPL. The integrated 160 W Class D digipro amplifier ensures efficient power handling with natural convection cooling for silent operation.
A built-in DSP running at 24-bit/48 kHz offers eight system presets and advanced processing such as dual active peak, RMS, and thermal limiting for consistent and safe performance. The unit’s coverage pattern of 85° x 75° allows for effective sound distribution in small to medium-sized spaces.

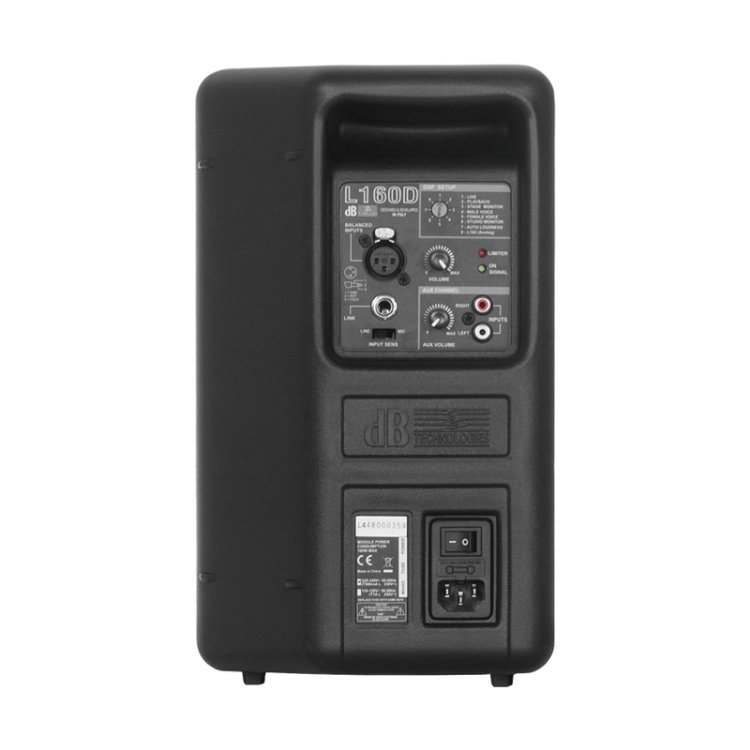

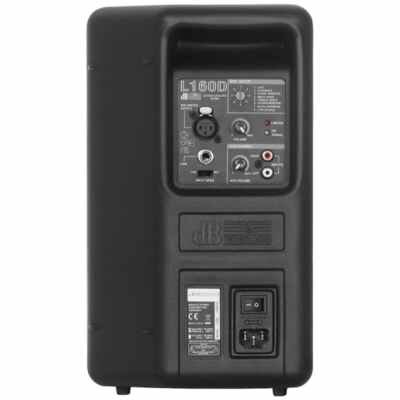

Connectivity is highly versatile with inputs including XLR line/mic, 6.3 mm jack, and RCA AUX with dedicated volume control. It also provides a 6.3 mm jack output, making it suitable for daisy-chaining or expansion with additional speakers.
The multifunctional polypropylene housing includes fixing points for wall mounting and a standard pole mount flange, offering installation flexibility. Its angled cabinet design also allows it to function as a floor monitor. Whether used in conference rooms, educational institutions, or small live venues, the L 160 D offers reliable performance with minimal setup effort.
Combining portability, professional audio quality, and flexible connectivity, the DB Technologies L 160 D is an excellent solution for users looking for compact and powerful sound reinforcement.
Features:
-
Compact 2×5″ active PA speaker with coaxial dome tweeter
-
160 W Class D digipro amplifier
-
Max SPL up to 116 dB
-
DSP with 8 system presets and advanced limiting
-
Multiple input options including XLR, jack, and RCA AUX
-
Wall-mount ready and pole-mountable
-
Lightweight and portable at only 5.2 kg
Specifications:
| Category | Specification |
|---|---|
| Speaker Type | 2-Way Active Speaker |
| Frequency Response | 70 Hz – 20,000 Hz |
| Max SPL | 116 dB |
| HF Driver | 1″ Dome Tweeter, coaxial |
| LF Driver | 2x 5″ |
| Directivity | 85° x 75° |
| Amplifier Type | Class D digipro |
| Power PRG | 160 W |
| Cooling | Convection |
| DSP Controller | 24-bit / 48 kHz |
| System Presets | 8 |
| Limiter | Dual Active Peak, RMS, Thermal |
| Signal Inputs | 1x XLR Line/Mic, 1x 6.3 mm Jack, 1x RCA AUX (w/ vol) |
| Microphone Input | Yes |
| Signal Output | 1x 6.3 mm Jack |
| Power Socket | VDE |
| Voltage Range | 110-120 V / 220-240 V |
| Housing Material | Polypropylene |
| Monitor Angle | 60° |
| Rigging Points | 2x M5 (side), 2x M5 (bottom) |
| Pole Mount | 36 mm flange |
| Width | 200 mm (8 in) |
| Height | 335 mm (13.4 in) |
| Depth | 220 mm (8.8 in) |
| Weight | 5.2 kg (11.46 lbs) |
