Description

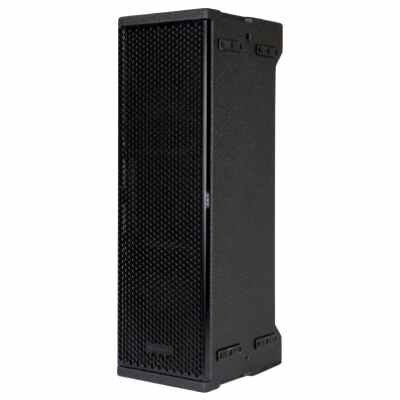

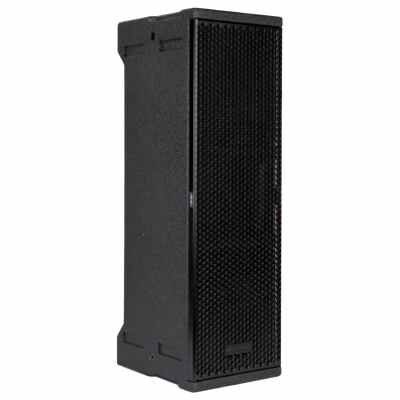

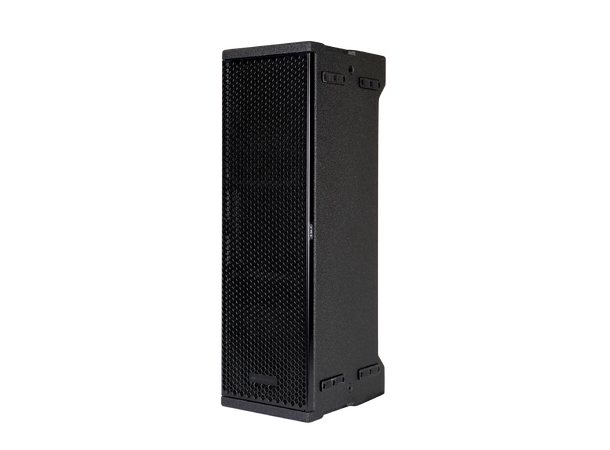

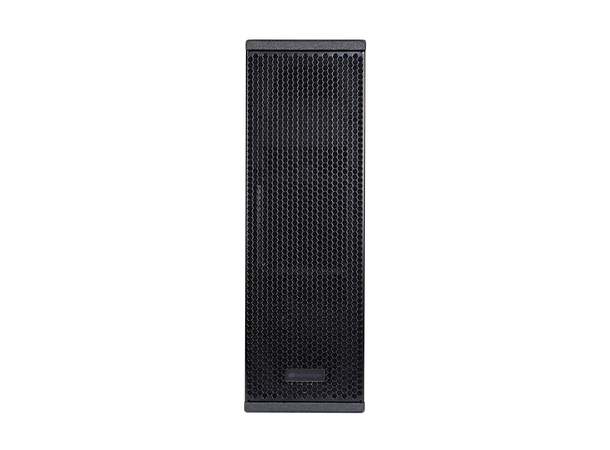

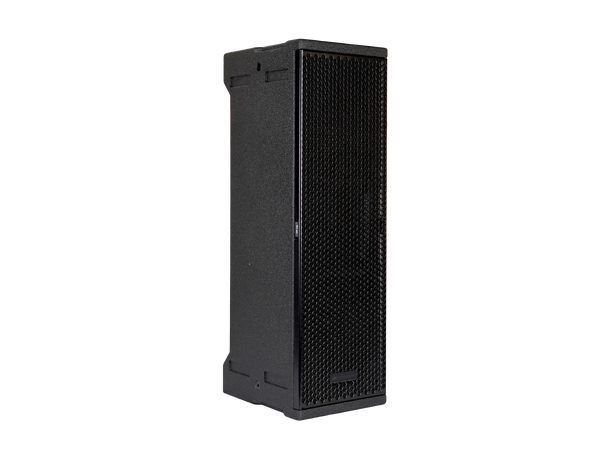

The dBTechnologies ViO X206-100 redefines versatility in professional audio, packing high sound pressure and linear response into an ultra-compact design. Powered by a 900W Class D Digipro G3 amplifier, it reaches a maximum SPL of 131dB while maintaining exceptional clarity across a 66Hz–19.5kHz frequency range. Featuring dual 6.5” neodymium woofers and a 1” compression driver, this 2-way active speaker delivers premium sound quality with high efficiency.

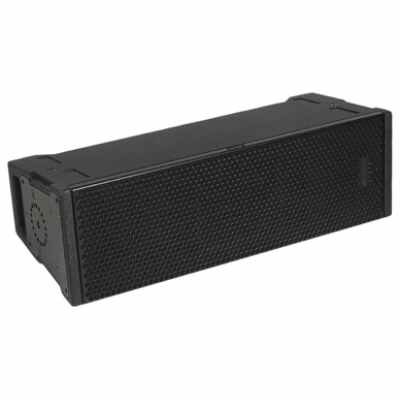

Designed for flexibility, the ViO X206-100 features a 100° x 15° dispersion pattern, transforming it into a compact line-array module suitable for larger sound reinforcement applications. Its FIR linear-phase DSP ensures a flat phase and frequency response in any venue, making it a reliable choice for live performances, corporate events, and installations.

Built for durability, the ViO X206-100 boasts a robust polyurea-coated wooden cabinet and a reinforced grille for road-ready reliability. It also features a fully network-ready RDNet port, allowing real-time remote control and monitoring. Available in two configurations—the standard ViO X206 (90° x 60° rotatable horn) and the ViO X206-100 (100° x 15° waveguide)—this speaker adapts seamlessly to various applications. The removable horn/waveguide system further enhances its adaptability, while a built-in DSP preset button optimizes performance based on the selected configuration.

For sound engineers and live sound professionals seeking a powerful yet compact solution, the ViO X206-100 delivers class-leading performance, state-of-the-art features, and unmatched flexibility.

Features:

  • High-performance 2-way active loudspeaker with 900W Class D Digipro G3 amplification

  • 131dB maximum SPL for powerful, distortion-free sound

  • 2 x 6.5” neodymium woofers and a 1” compression driver for extended 66Hz–19.5kHz bandwidth

  • 100° x 15° dispersion for line-array operation

  • FIR linear-phase filters for precise frequency and phase response

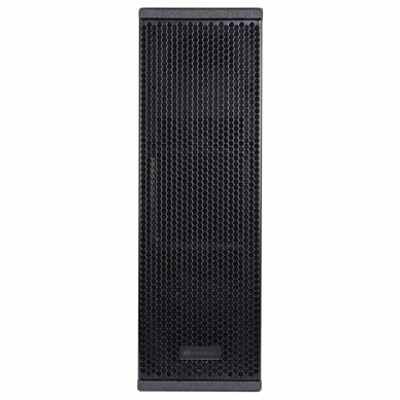

  • Rugged polyurea-coated wood enclosure with a durable grille

  • Fully network-ready with integrated RDNet port for remote control and monitoring

  • Available in two configurations: 90° x 60° (ViO X206) and 100° x 15° (ViO X206-100)

  • Removable horn/waveguide for easy adaptability to different applications

  • DSP preset button for optimized performance in various setups

Specifications:

Specification Details
Powered Yes
Power Configuration 2-Way
LF Driver 2 x 6.5″ neodymium woofers
HF Driver 1″ compression driver
Frequency Response 70Hz – 18kHz
Usable Bandwidth 66Hz – 19.5kHz
Max SPL 131dB
Horizontal Coverage 100°
Vertical Coverage 15°
Amplifier 900W Class D Digipro G3
DSP Processing FIR Linear Phase Filters

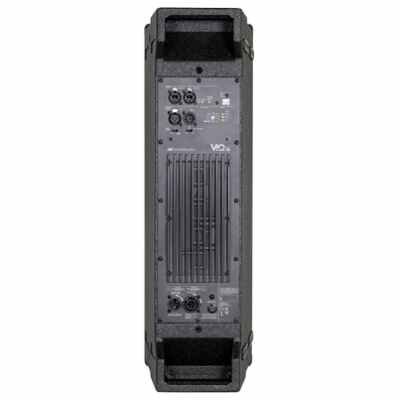

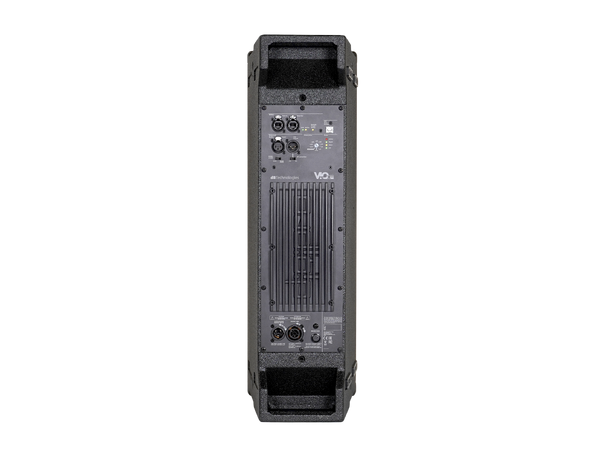

Inputs 1x XLR balanced, 1x RJ45 Link (RDNet), 1x USB (Data Service)
Outputs 1x XLR balanced, 1x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In / 1x PowerCON TRUE1 Out
Housing Wooden cabinet with polyurea coating
Dimensions (H x W x D) 25.6” x 8.3” x 10.6”
Weight 38.14 lbs.
Manufacturer Part Number 1030104010
