DB Technologies DVA MS 12 12″ System Subwoofer

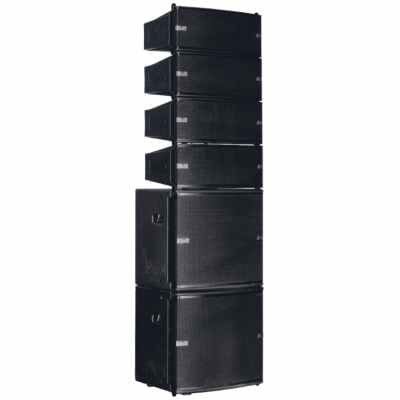

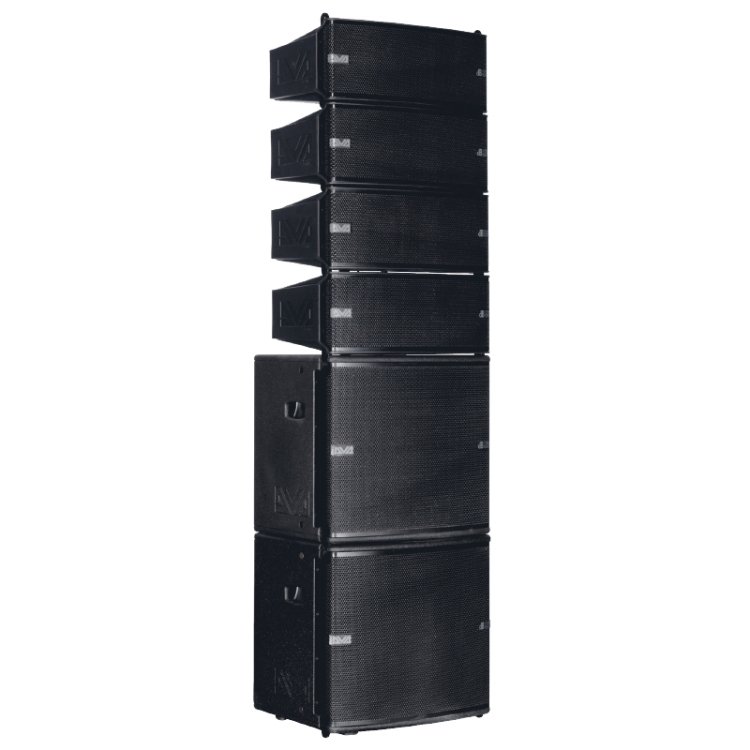

The DB Technologies DVA MS12 is a purpose-built active subwoofer designed to perfectly complement the DVA M2M and M2S line array modules, offering extended low-end support in a compact, powerful design. Equipped with a 12-inch woofer housed in a bass reflex enclosure, this sub delivers a surprisingly high SPL of up to 131 dB while maintaining a compact form factor, making it ideal for flown or ground-stacked configurations in portable or fixed installations.

Designed with user convenience in mind, the MS12 includes smart reversible feet that eliminate the need to remove flying brackets during setup. The rubber feet can be easily detached and reattached upside-down to prevent the brackets from touching the ground, simplifying transitions between flown and ground-mounted use. Additionally, the X-over output allows seamless audio signal routing to the line array modules, significantly reducing cable clutter and streamlining system configuration.

The MS12 features the latest generation of Digipro G3 Class D amplification, delivering 700W RMS power with exceptional efficiency and reliability. Its 56-bit DSP engine allows for precise control over the system, including adjustable crossover frequencies, phase settings, and output modes. A unique addition is the integrated USB B-type port, which enables full telemetry access, allowing users to monitor speaker performance, temperature, and usage data in real time.

Built from robust multiplex plywood with a Polyurea coating, the MS12 is rugged yet stylish, ensuring durability for professional use. With integrated hardware, fast-lock mechanics, and M20 pole mount fittings, the subwoofer is both versatile and easy to deploy. Whether used in live sound reinforcement or permanent installations, the DVA MS12 offers a high-performance low-frequency solution tailored for the DVA MINI series.

Features:

• Compact, flyable 12″ active subwoofer for DVA MINI systems

• 131 dB max SPL with a bass reflex enclosure

• Digipro G3 Class D amplifier with 700W RMS output

• Advanced 56-bit DSP with USB telemetry access

• Adjustable crossover (90–120 Hz), phase, and output modes

• Reversible rubber feet for easy transition between flown and ground modes

• Integrated fast-lock hardware and M20 pole mount

• Durable multiplex plywood construction with Polyurea finish

Specifications:
