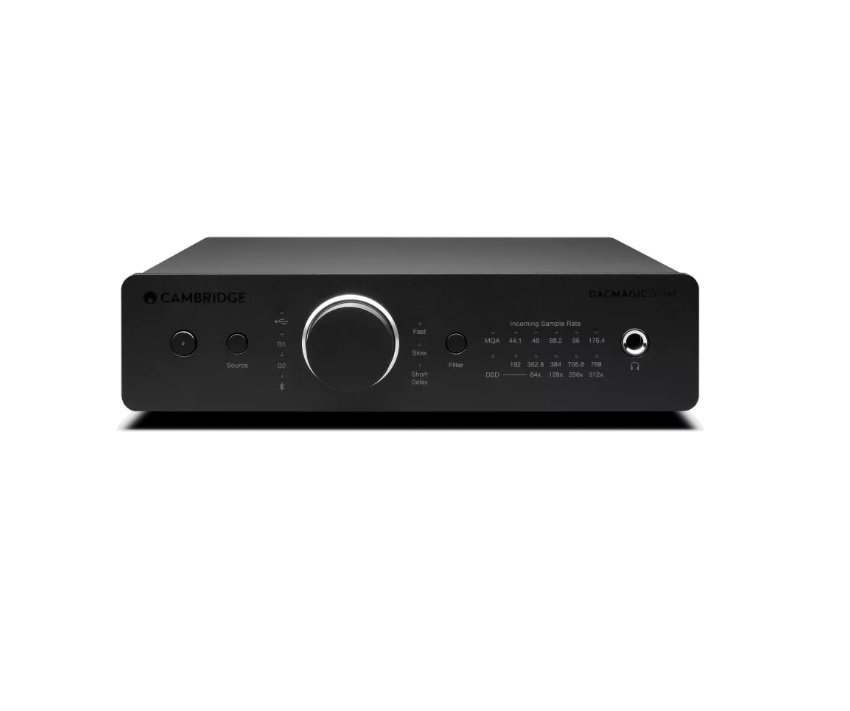

The Cambridge Audio DacMagic 200M is a premium desktop DAC and headphone amplifier engineered to bring out the full potential of your digital music. Designed for discerning listeners, it transforms digital audio from computers, streamers, TVs, CD transports and more into richly detailed, high-resolution sound.
Built around dual ESS Sabre DAC chips, the DacMagic 200M delivers exceptional clarity, dynamic range and ultra-low distortion. Whether you’re streaming high-resolution files, playing back CDs, or connecting via Bluetooth, this compact yet powerful unit ensures every note is reproduced with precision and musicality.
Its integrated high-quality headphone amplifier supports both unbalanced and balanced headphones, making it a versatile solution for private listening setups and desktop audiophile systems alike. With broad file compatibility — including DSD and MQA — the DacMagic 200M is ready for today’s high-resolution streaming platforms.
Features
- Dual ESS Sabre DACs (ES9028Q2M) for exceptional detail and channel separation
- High-resolution audio support up to 32-bit/768kHz PCM and DSD512
- Full MQA decoding for studio-quality streaming playback
- Bluetooth aptX Adaptive for high-quality wireless audio
- Balanced XLR and unbalanced RCA outputs for flexible system integration
- Powerful built-in headphone amplifier with 6.35mm single-ended and 4.4mm balanced outputs
- Three selectable digital filters to tailor sound performance
- USB, optical and coaxial digital inputs for versatile connectivity
- Compact, premium aluminium chassis in Black finish
Specifications
| Category | Specification |
|---|---|
| DAC Architecture | Dual ESS Sabre ES9028Q2M |
| Digital Inputs | 1 x USB Type B, 2 x Optical (Toslink), 1 x Coaxial |
| Bluetooth | Bluetooth 5.0 with aptX Adaptive, aptX, AAC |
| Digital Audio Support (USB) | PCM up to 32-bit/768kHz, DSD up to DSD512 |
| Digital Audio Support (S/PDIF) | PCM up to 24-bit/192kHz |
| MQA Support | Full Decoder |
| Analogue Outputs | Balanced XLR (1 pair), RCA (1 pair) |
| Headphone Outputs | 6.35mm (single-ended), 4.4mm Pentaconn (balanced) |
| Output Voltage (RCA) | 2.1V RMS |
| Output Voltage (XLR) | 4.2V RMS |
| THD (1kHz, 0dBFS) | <0.0006% |
| Signal-to-Noise Ratio | >120dB |
| Frequency Response | 20Hz – 20kHz ±0.1dB |
| Filters | Fast, Slow, Short Delay |
| Dimensions (W x H x D) | 215 x 52 x 191 mm |
| Weight | 1.2 kg |
| Finish | Black |
