The BLU-50 is a half-rack width processor that offers a fixed configuration of four inputs and four outputs, configurable signal processing, logic processing and BLU link. The device can be powered with the included 12VDC power supply but can accept 12-48VDC via a terminal block connector. The BLU-50 can also be powered with PoE+ via the Ethernet port, allowing the device to be powered, configured, controlled and monitored using a single Cat 5e cable.

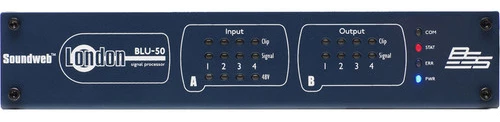

The analog inputs of the BLU-50 provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication.
The BLU-50 features BLU link, a low latency, fault tolerant digital audio bus of 48 channels, which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 10km (6.2 miles) using single mode fiber.
The BLU-50 is configured, controlled and monitored from HiQnet Audio Architect™ or HiQnet London Architect™ and is compatible with other members of the Soundweb London family. Its 48 channel BLU link bus represents channels 1-48 of the larger 256 channel BLU link bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB and BLU-BOB devices. Up to 60 BLU link compatible devices can share channels on a single bus.
As with other Soundweb London devices, 12 Control Inputs, six Logic Outputs and an RS-232 port allow the BLU-50 to be integrated with other compatible devices.
Features
- 4 Analog Inputs (with 48v Phantom Power per Channel)
- 4 Analog Outputs
- Configurable Signal Processing
- Rich Palette of Processing and Logic Objects
- 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus
- Clear Front Panel LED Indication
- Bi-Directional Locate Functionality
- 12 Control Inputs and 6 Logic Outputs for GPIO Integration
- Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
- HiQnet Device
- Configuration, Control and Monitoring from HiQnet London Architect
- 12-48VDC or PoE+ Powering Options (12VDC Power Supply Included)
- Rack Mount, Surface Mount and Desk Mount Installation Options
Specifications
| Indicators | Per Input: Signal Present, CLIP, 48V (Input Only) Other: COM, STAT, ERR, PWR |
| Analog Inputs | Analog Inputs: 4 Electronically Balanced on Phoenix Mini Combicon Removable Screw Connectors Mic/Line Inputs: Nominal Gain 0 dB, Electronically Switchable up to +48 dB, in +6 dB Steps Input Impedance: 3.5 Kilohms Maximum Input Level: +20 dBu with 0 dB Input Gain, +8 dBu with 12 dB Gain CMRR: > 45 dB at 1 kHz Input Noise (E.I.N.): < -128 dBu Typical with 150 Ohms source Phantom Power: 48 V Nominal, Selectable per Input |
| Analog Outputs | Analog Outputs: 4 Electronically Balanced on Phoenix Mini Combicon Removable Screw Connectors Maximum Output Level: +20 dBu Frequency Response: 20 Hz to 20 kHz (+0.5 dB / -1 dB) THD: 0.005% Typical at +4 dBu, 1 kHz, 0 dB Input Gain Dynamic Range: 110 dB A-Weighted, > 107 dB Unweighted Crosstalk: < -100 dB Output Impedance: 120 Ohms D/A Latency: 29/Fs (0.60 ms at 48 kHz) |
| Control Ports | Control Ports: 12 Inputs and 6 Outputs Control Input Voltage: 0 to 4.5 V Control Input Impedance: 4.7 Kilohms to +5 V (2-Wire Mode), >1 Megohm (3-Wire Mode) Logic Output Voltage: 0 or +5 V Unloaded Logic Output Impedance: 440 Ohms Logic Output Current: 10 mA Source, 60 mA Sink |
| WatchDog | Watchdog Output: Phoenix/Combicon Connector for Fail-Safe Control Opto Output Current: 14 mA <maximum Withstanding Voltage: 80 V Maximum (Off) Series Impedance: 220 Ohms (Isolated) |
| Control | Control Network Connectors: RJ45 Ethernet Connector Maximum Cable Length: 300′ / 100 m on Category 5 Cable between Device and Ethernet Switch |
| BLU Link | Connectors: 2 x RJ45 Ethernet Connectors Maximum Cable Length: 300′ / 100 m on Category 5e Cable between Devices Maximum Number of Nodes: 60 Latency: 11/Fs (0.23 ms at 48 kHz) Pass-Through Latency: 4/Fs (0.08 ms at 48 kHz) |
| Power | Power Requirements: 12 to 48 VDC Power Adapter: 100-240 VAC 50/60 Hz, 12 VDC Output Power Consumption: < 55 VA |
| BTU | <188 BTU/Hr |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 1.6 x 8.6 x 7.8″ / 41.3 x 219.2 x 196.9 mm |
| Weight | 2.8 lb / 1.3 kg |
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 12.1 x 11.1 x 7.4″ |
