Description

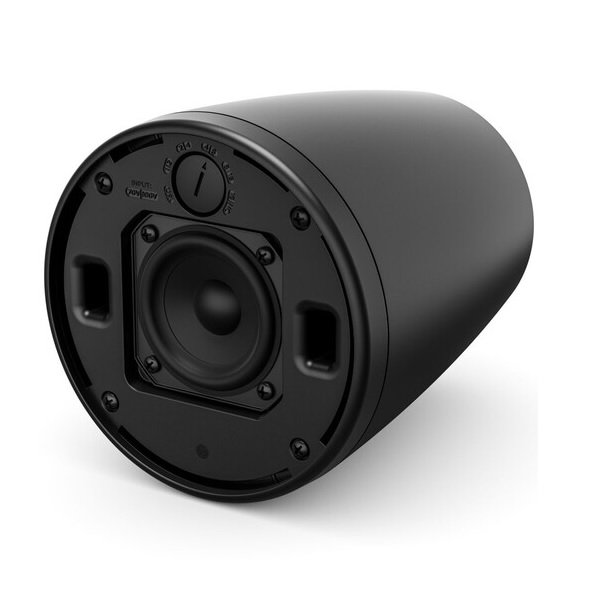

The black Bose Professional FreeSpace FS2P is a pair of passive pendant loudspeakers designed for intelligible speech and background music reproduction in an array of commercial applications. Equipped with a sleek pendant enclosure and a single 2.25″ full-range driver, each FS2P speaker yields a 140° conical coverage pattern and a frequency range from 83 Hz to 19 kHz (-10 dB).

It handles up to 20W continuous (80W peak) and is capable of producing a maximum peak SPL of 106 dB (100 dB continuous). The FS2P utilizes an integrated multi-tap transformer, which can be configured for an array of 70/100V settings via a convenient switch beneath the grille. The FS2P is voiced to ensure consistent tonality throughout the FreeSpace FS family, so it can be installed alongside other loudspeakers in the same series without compromising the system’s sonic signature.

Features

Shared Voicing in FS Family

Maintain consistent tonal quality with shared voicing across all FS models
For Background Music and Voice Reproduction
Full-range 2.25″ transducer offers clear voice reproduction and smooth response for background music with a frequency range from 83 Hz to 19 kHz (-10 dB) and broad 140° conical coverage

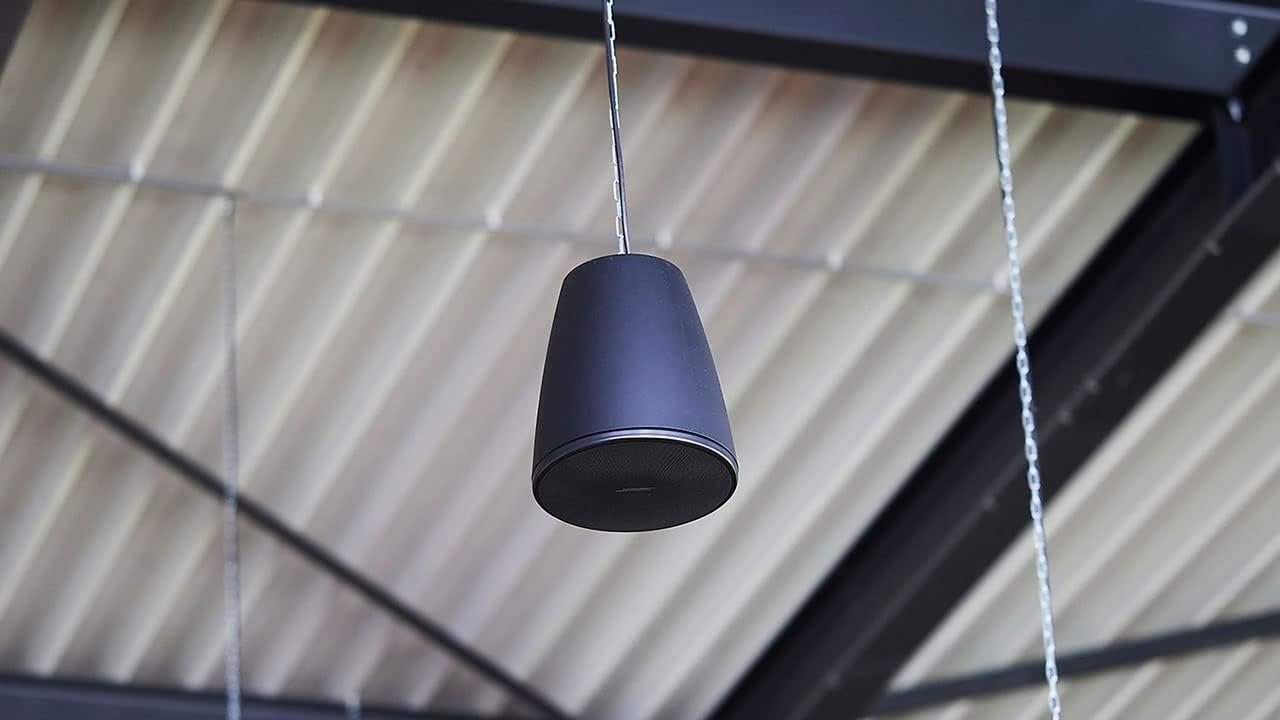

Pendant-Mount Installation

Stylish pendant enclosure with single-point suspension, perfect for open-ceiling applications or any installation requiring the aesthetic and performance capabilities of a pendant design

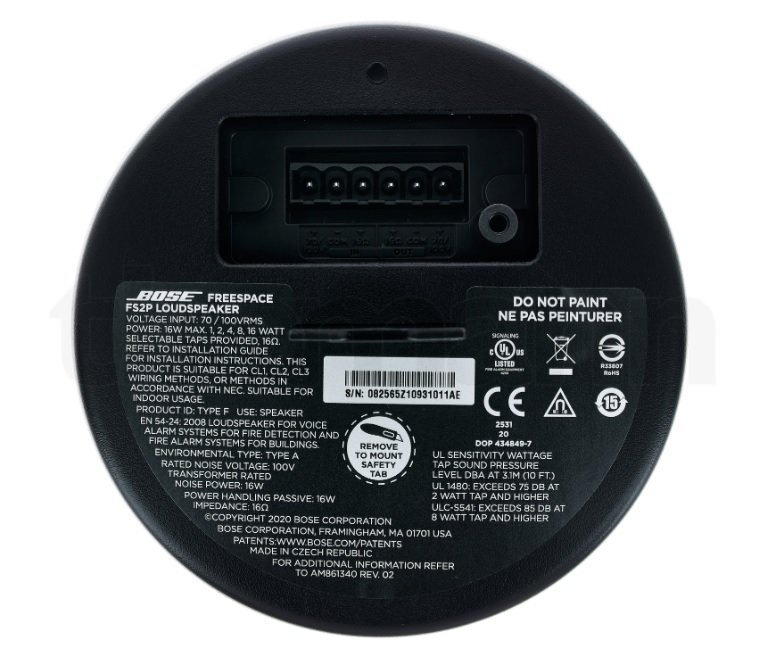

Euroblock Connectivity

Euroblock 6-pin input/thru connector

Removable Logo

Updated enclosures pair sleek aesthetics with practical features, including removable logos

Support Public Safety

EN54-24 for voice alarm systems for fire detection and fire alarm systems for buildings, and UL 1480 UUMW listed for use in fire alarm and signaling systems in life safety applications

Specifications

Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
Full-Range
Power Handling
For 2 Hours:
20 W Program
80 W Peak
Constant Voltage / Transformer Taps
70 V:
1 / 2 / 4 / 8 / 16 W or 16 Ohms Bypass
100 V:
2 / 4 / 8 / 16 W or 16 Ohms Bypass
Impedance
16 Ohms (Transformer Bypassed)
Full-Range Driver
1x 2.25″ / 5.71 cm
Frequency Range
83 Hz to 19 kHz -10 dB
Color
Black
Speaker
Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
Full-Range
Power Handling
For 2 Hours:
20 W Program
80 W Peak
Constant Voltage / Transformer Taps
70 V:
1 / 2 / 4 / 8 / 16 W or 16 Ohms Bypass
100 V:
2 / 4 / 8 / 16 W or 16 Ohms Bypass
Impedance
16 Ohms (Transformer Bypassed)
Transformer Wattage
16 W
Enclosure Type
Sealed
Shielded
No
Drivers
Full-Range Driver
1x 2.25″ / 5.71 cm
Performance
Frequency Range
83 Hz to 19 kHz -10 dB
Frequency Response
95 Hz to 16 kHz -3 dB
Maximum SPL
100 dB (Continuous)
106 dB (Peak)
Sensitivity
87 dB
Coverage Angle
140° (Conical)
Recommended High-Pass Filter
85 Hz, 24 dB/Octave
Connectivity
Inputs/Outputs
1x Block 6-Pin Speaker Input/Thru
Maximum Wire Gauge
14 AWG / 2.5 mm
Physical
Certifications
CSA, UL
Environmental Resistance
No
Operating Conditions
32 to 122°F / 0 to 50°C
Color
Black
Mounting
1x Suspension (Rear)
Construction Material
Perforated Metal Grille, Plastic
Dimensions
7.2 x 5.9″ / 18.3 x 15 cm
Weight
3.3 lb / 1.5 kg (Each Speaker, with Grille)
Packaging Info
Package Weight
9.255 lb
Box Dimensions (LxWxH)
15.1 x 11.3 x 8″
