Description

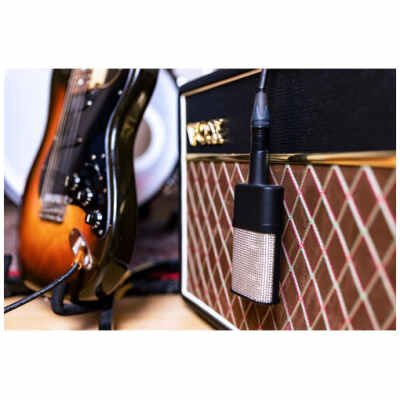

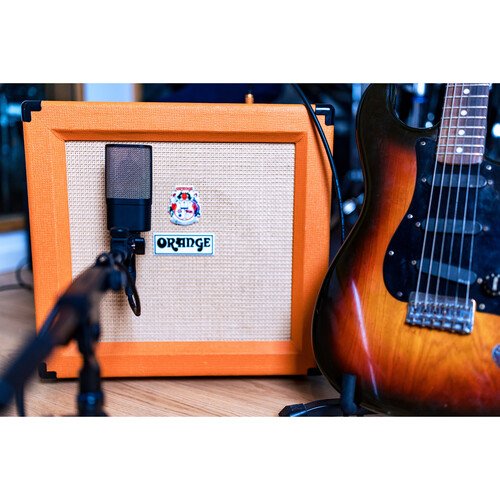

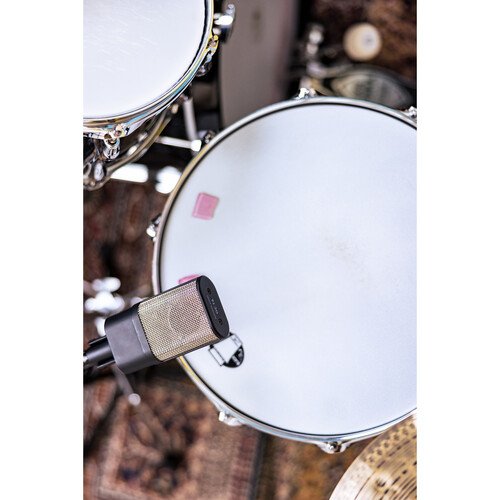

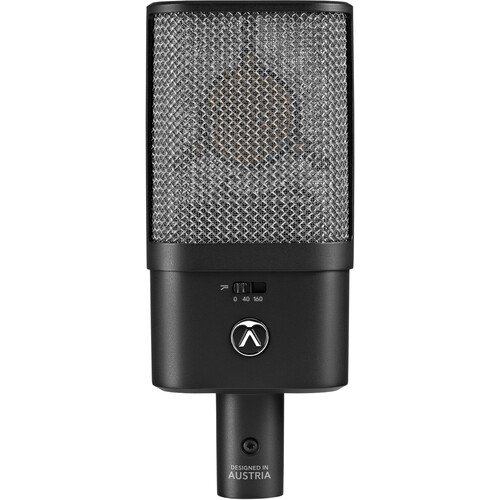

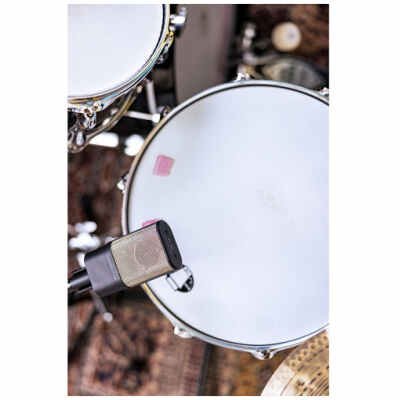

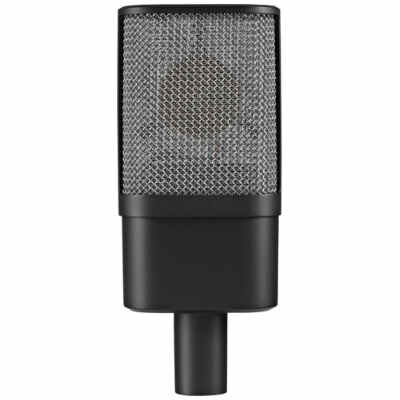

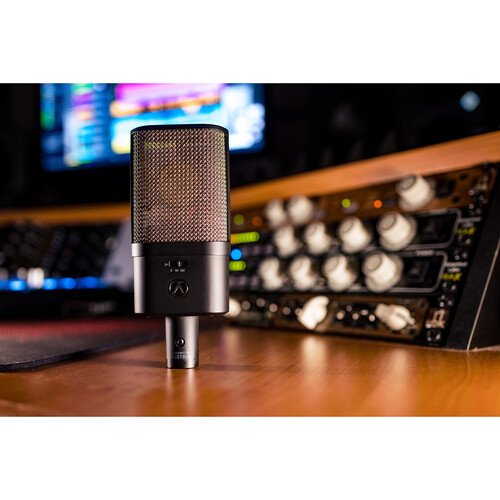

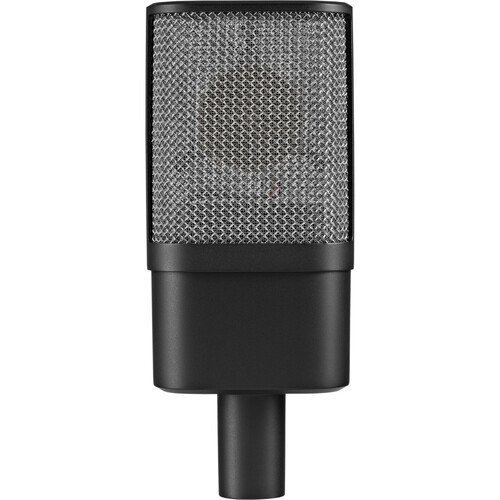

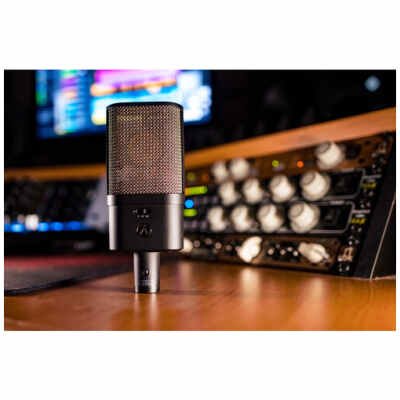

The OC16 from Austrian Audio is designed to provide home, project, and professional studios with a go-to workhorse condenser microphone ready to tackle a wide variety of applications and deliver clear, transparent, and natural recordings, rivaling far more expensive models. Part of Austrian Audio’s Open Condenser series and engineered with transformerless Open Acoustics technology that isolates the capsule from vibrations and provides a built-in diffuser, the mic provides accurate, uncolored audio capture for drums, electric and acoustic guitars, pianos, wind and string instruments, or vocals.

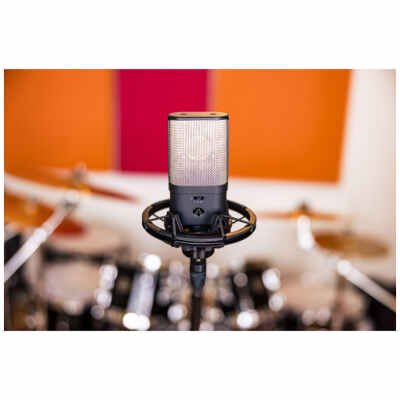

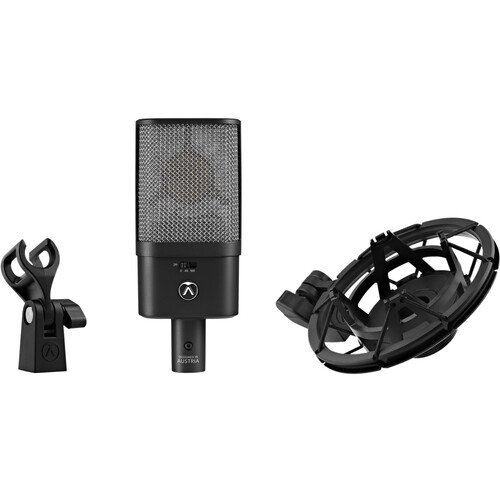

The focused cardioid pickup pattern helps to reduce unwanted background sounds, and the included elastic spider shockmount offers additional protection from handling and vibration noises, making the mic well suited to podcasting, streaming, and voice-over applications. A three-position low-cut switch lets you precisely filter out unwanted bottom frequencies for cleaner, clearer audio. The condenser mic capsule requires 48V phantom power through the XLR connector.



FEATURES

  • Open Acoustics Technology
  • Transparent & Natural Sound
  • Precise Cardioid Polar Pattern
  • For Vocals, Drums, Guitars, Pianos
  • For Wind & String Instruments
  • Transformerless Design
  • Handles up to 148 dB SPL
  • Specially Tuned Diffuser/Absorber
  • Suspension Mount to Reduce Vibrations
  • Low-Cut Filter: Off, 40 Hz, 160 Hz



SPECIFICATIONS

Key Specs
Polar Pattern
Cardioid
Element Type
Condenser
Controls
Low Cut/HPF
Frequency Response
20 Hz to 20 kHz
Maximum SPL
148 dB
Analog Output
1x XLR 3-Pin Male
Power Sources
Phantom Power



Microphone
Polar Pattern
Cardioid
Element Type
Condenser
Sound Field
Mono
Orientation
Side Address
Controls
Low Cut/HPF
Pad
No
Filter & EQ
Low-Cut Filter: 40 Hz / 160 Hz
Circuitry
Solid-State



Performance
Frequency Response
20 Hz to 20 kHz
Maximum SPL
148 dB
Equivalent Noise Level
14 dB SPL



Connectivity
Analog Output
1x XLR 3-Pin Male



Power
Power Sources
Phantom Power
Operating Voltage
48 V



Physical
Color
Black
Dimensions
H: 6.2 x W: 1.3 x L: 2.6″ / H: 157 x W: 34 x L: 66 mm
Weight
11.8 oz / 335 g



Packaging Info
Package Weight
2.41 lb
Box Dimensions (LxWxH)
12.1 x 9.6 x 3.7″
