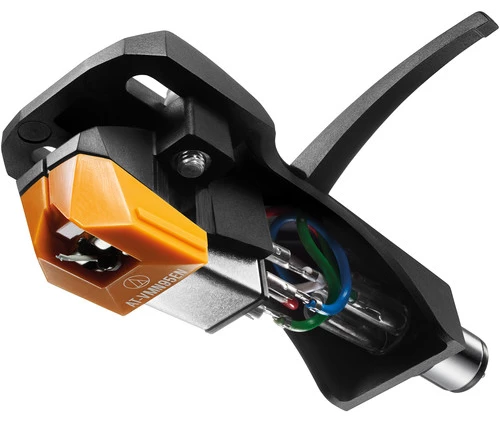

The Audio-Technica Consumer AT-VM95EN Dual Moving Magnet Cartridge offers high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2″ mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws—no nuts required
- Compatible with any AT-VMN95 replacement stylus
Specifications
| Frequency Response | 20 Hz to 23 kHz |
| Channel Separation | 22 (dB at 1 kHz) |
| Tracking Force | 1.8 to 2.2 g (2.0 g Standard) |
| Recommended Load Impedance | 47 kOhms |
| Output | 3.5 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 2.0 dB (1 kHz) |
| Stylus Type | 0.3 x 0.7 mm Elliptical |
| Stylus Cantilever | Aluminum Pipe |
| Mount | 0.5″ / 1.27 cm |
| Replacement Stylus | AT-VMN95EN |
| Impedance | Coil Impedance: 3.3 kOhms (1 kHz) |
| DC Resistance | 485 Ohms |
| Load Capacitance | 100 to 200 pF |
| Coil Inductance (Le) | 550 mH (1 kHz) |
| Vertical Tracking Angle | 23° |
| Dimensions | 0.7 x 0.7 x 1.1″ / 17.2 x 18.9 x 28.3 mm |
| Weight | 0.2 oz / 6.1 g |
Packaging Info
| Package Weight | 0.09 lb |
| Box Dimensions (LxWxH) | 3.9 x 2.8 x 1.2″ |
