This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- Low Distortion & High Channel Separation
- Shibata Stylus
- Frequency Response: 20 Hz to 25 kHz
- Low-Resonance Housing
- Interchangeable with Any AT-VMN95 Styli
- Includes Threaded Inserts for Mounting
- Includes Mounting Hardware + Screwdriver
Specifications
| Frequency Response | 20 – 25,000 Hz |
|---|---|
| Channel Separation | 23 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |

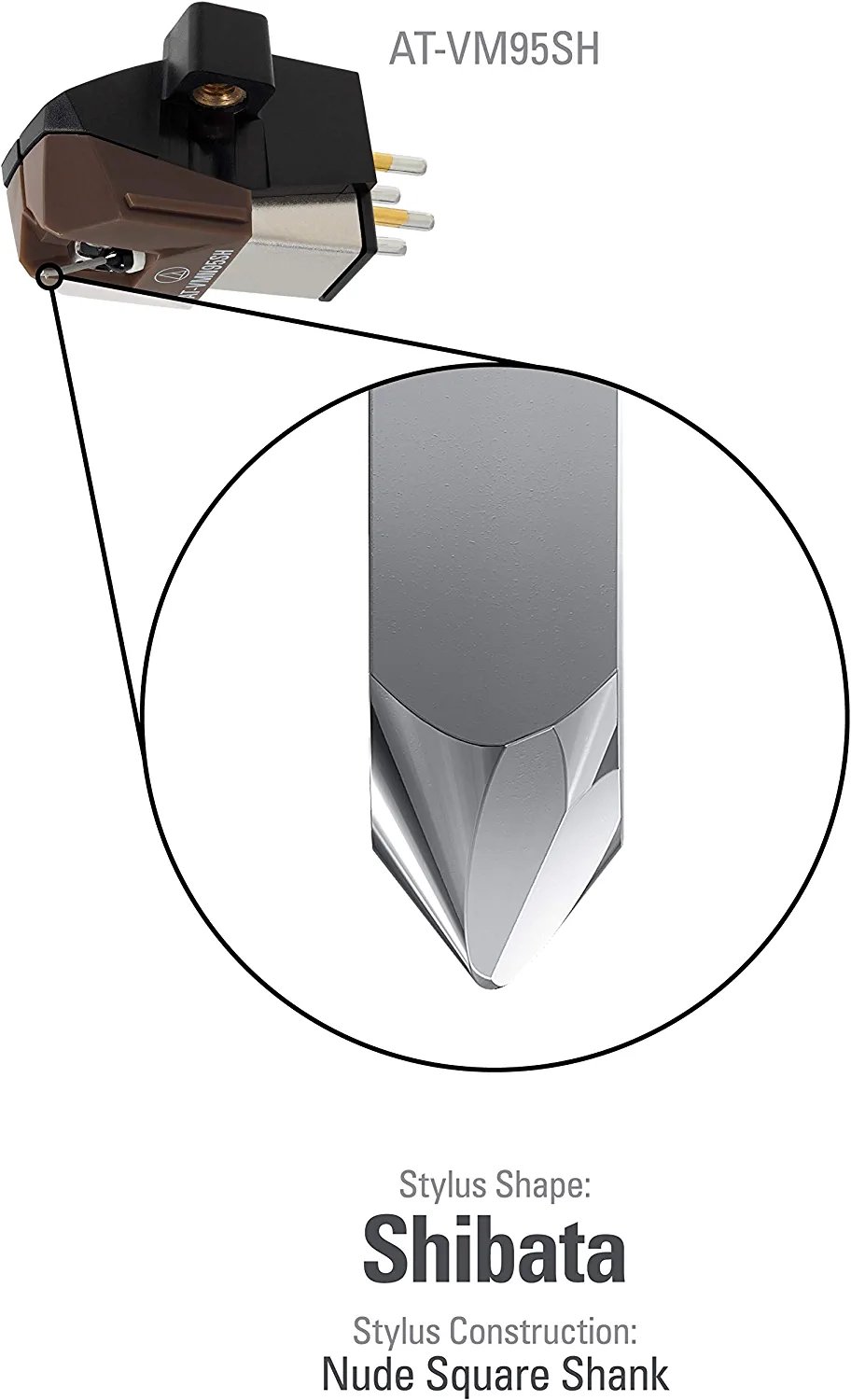

| Stylus Shape | Shibata |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |

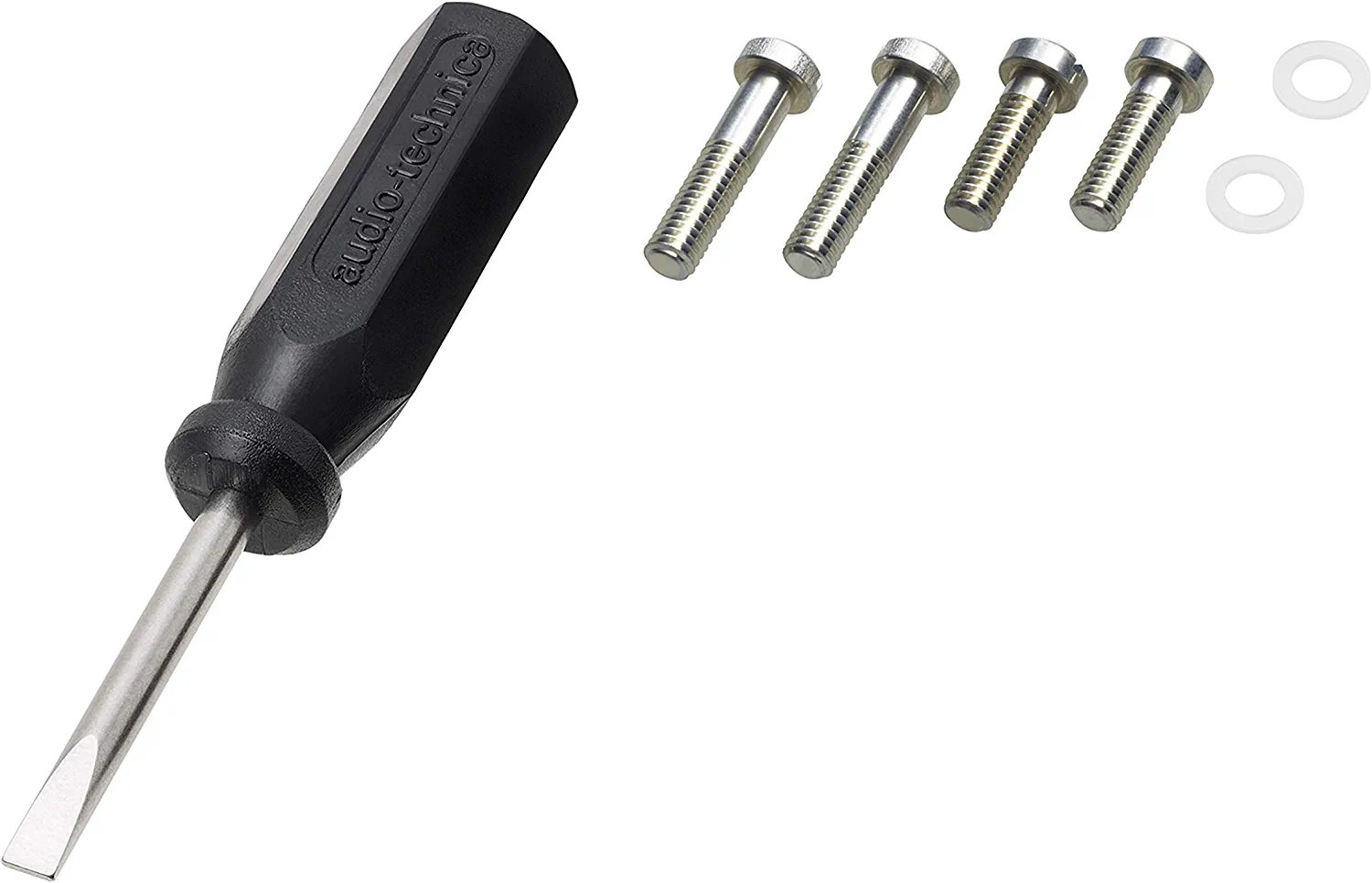

| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model | AT-VM95SH |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95SH |
| Stylus Size | 2.7 x 0.26mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
