Description

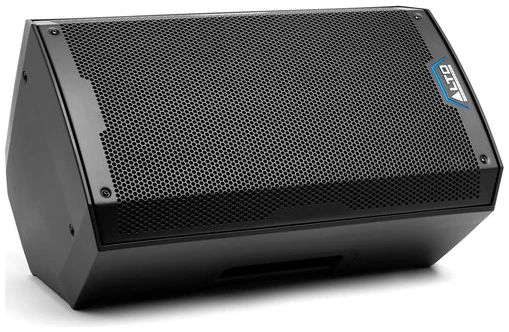

Compact, lightweight, and designed for reliability, the TS410 2000W Active Loudspeaker from Alto Professional is a versatile 2-way loudspeaker that delivers potent, room-filling sound for nearly any application. Bluetooth compatibility allows you to stream your audio wirelessly or connect a second loudspeaker for a completely cable-free stereo setup.

The TS410 features two combo XLR-1/4″ balanced inputs with an XLR output for your final mix or for linking directly to a second loudspeaker. An onboard mixer makes dialing in the perfect performance a cinch, but further options are provided by the free Alto App to remotely adjust any settings, including custom 5-band EQ presets and three DSP speaker modes, with instant recall ability. The loudspeaker even comes with flexible mounting options for meeting any application demands, whether they require freestanding placement, wedge monitor use, pole socket mounting, or even flown rigging.



FEATURES

  • 2000W Max Class-D Amplifiers
  • 10″ Woofer, 1.4″ Compression Driver
  • Three DSP Speaker Modes
  • Bluetooth Audio Streaming & Speaker Link
  • Two Combo XLR-1/4″ Balanced Inputs
  • XLR Mix or Speaker Link Output
  • 57 Hz to 20 kHz Frequency Response
  • 90 x 60° Dispersion
  • USB Charging Port for Smart Devices
  • Pole Socket & Flying Suspension Points



SPECIFICATIONS

Key Specs
Configuration
Active 2-Way
Enclosure Type
Loudspeaker
Total Power Capacity
2000 W Peak
HF Driver
1 x 1″ / 2.5 cm Ceramic Compression Driver
MF Driver
No
LF Driver
1x 10″ / 25.4 cm Woofer
Frequency Range
48 Hz to 20 kHz -10 dB
Wireless Connectivity
Bluetooth
Color
Black



Enclosure Type
Loudspeaker
Total Power Capacity
2000 W Peak
Amplifier Power Rating
LF:
1 x 1300 W Peak (at 2 Ohms)
HF:
1 x 700 W Peak (at 4 Ohms)
Amplifier Class
HF/LF:
Class-D
System Impedance
1x 6 Ohms (Bi-Amp)



Drivers
HF Driver
1 x 1″ / 2.5 cm Ceramic Compression Driver
HF Voice Coil
1.4″ / 3.6 cm
MF Driver
No
LF Driver
1x 10″ / 25.4 cm Woofer
LF Voice Coil
2″ / 5.1 cm



Performance
Frequency Range
48 Hz to 20 kHz -10 dB
Frequency Response
57 Hz to 20 kHz ±3 dB
Maximum SPL
130 dB (Peak)
127 dB (Continuous)
Coverage Angle
90° H x 60° V
Gain Range
Line Input:
to +10 dB
Mic Input:
to +50 dB
I/O Impedance
1/4″ Line Input:
10 Kilohms (Balanced)
20 Kilohms (Unbalanced)
XLR Mic Input:
1.2 Kilohms (Balanced)
Protections
Signal Limiter, Thermal, Transducer Overdrive



Connectivity
Audio I/O
2x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Link/Mix Output
Network I/O
No
USB I/O
1x USB-A 2.0 (Device Charging)
Wireless Connectivity
Bluetooth
Mobile App Compatible
No



Signal Processing
Crossover
2 kHz
EQ
1x 5-Band Graphic
Parametric EQ
Yes
Semi-Parametric EQ
No
Filters
1x High-Pass
Dynamic Processing
Peak Limiter
Alignment Delay
No
Phase Adjustment
No
Digital Signal Processing
Voicing Modes (Adjustable via Optional Software)



Power
AC Input Power
100 to 120 VAC, 50 / 60 Hz (T 10 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V)
AC Power I/O
1x IEC Input
Power Consumption
900 W



Physical
Color
Black
Mounting
1 x 1.4″ / 36 mm Pole Socket (Bottom)
2 x M10 Fly Point (Top)
Handles
1x Each Side
Environmental Resistance
No
Construction Material
Metal Grille, Plastic
Operating Conditions
14 to 113°F / -10 to 45°C
Dimensions
21.1 x 12.5 x 12.6″ / 53.6 x 31.8 x 32 cm
Weight
26 lb / 11.8 kg



Packaging Info
Package Weight
34.235 lb
Box Dimensions (LxWxH)
24.6 x 18.2 x 17.5″
