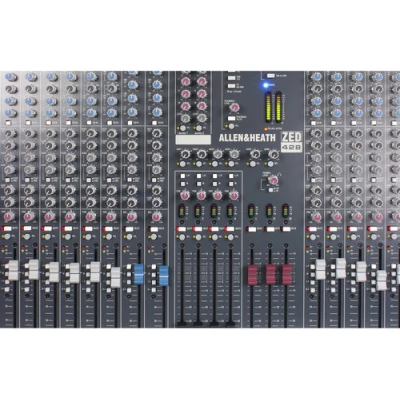

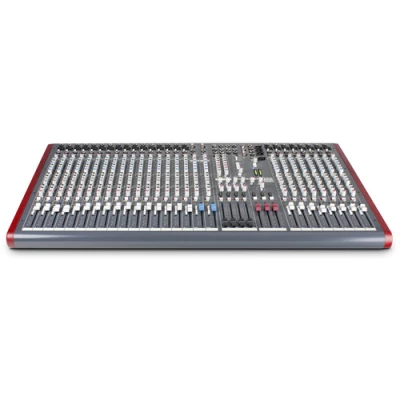

Allen & Heath ZED-428 4 Bus, 24 Mono Input, 2 Dual Stereo, 6 Aux with USB

Allen & Heath ZED-428 4 Bus, 24 Mono Input, 2 Dual Stereo, 6 Aux with USB

Name: Allen &amp; Heath ZED-428 4 Bus, 24 Mono Input, 2 Dual Stereo, 6 Aux with USB
SKU: ZED2842
Price: 7919.05 AED
Availability: InStock

Brand :

Sku: ZED2842

AED 7,919.05 Exc VAT

Available in stock

Features

ZED-2842 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application or professional PA hire stock. ZED-428 has configurable USB audio in/out, making it easy to capture stereo recordings, plus 24 mic/line inputs, 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

Compare Wishlist

EAN: N/A Category: DJ Mixers

Description

ZED-428 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application or professional PA hire stock. ZED-428 has configurable USB audio in/out, making it easy to capture stereo recordings, plus 24 mic/line inputs, 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

Features

- 24 mono channels

- 2 dual stereo inputs with 4-band EQ

- Neutrik mic XLR

- Neutrik 1/4 inch jacks

- Channel insert

- Super wide gain ‘DuoPre’ mic line input

- 4-band EQ with 2 swept mids and in/out switch

- Illuminated mute

- Sound image pan

- Illuminated PFL & peak warning indicator

- ALPS 100mm faders

- 6 auxiliary sends (2 pre, 2 post, 2 pre/post)

- 4 sub groups fed from each channel

- All inputs with level control

- 12 bar meters

- L, R and M main mix outputs

- 2 matrix sections available; can send output to USB

- Individual channel 48V phantom power

- Direct output on every mono channel

- Peak and signal indication on every channel

- Configurable USB stereo audio in/out

- Master level controls on all outputs

- Easy to use layout – all connections and controls on top surface

Specifications

Mixer

Number of Analog Input Channels	28
Number of Mic Preamps	24
Analog Output Channels	1 x Stereo Master Output 1 x Mono Master Output 4 x Mono Bus/Subgroup Output 6 x Mono Aux Send Output 2 x Mono Matrix Output 1 x Stereo Tape/Record Output 1 x Stereo Headphone Output
Faders & Level Adjustment	3.9″ / 100 mm Channel Fader
Meters	Main Meter: 2 x 12-Segment LED Bus Meter: 4-Segment LED Channel Meter: 2-Segment LED

Signal Processing

Gain/Trim Range	Mic Input: -6 dB to +63 dB Line Input: -10 dB to +26 dB Stereo Input: -∞ to +10 dB Fader: -∞ to +10 dB Return: -∞ to +10 dB Aux: -∞ to +10 dB Matrix: -∞ to +6 dB
EQ Parameters	Mono Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Notch/Peak) Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak) Lo-Mid: ±15 dB at 250 Hz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Mono Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Semi-Parametric) Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak) Lo-Mid: ±15 dB at 250 Hz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving)
Filters	High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute	Mute, PFL per Input Channel Mute, Solo-in-Place/AFL per Bus Mute per Master
Built-In Effects	None

Digital Audio

Sample Rates	32 / 44.1 / 48 kHz
Bit Depth	16-Bit

Performance

Headroom	Analog: +21 dB USB I/O: +14 dB
Frequency Response	Mic Input to Main Output: 20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain) Line Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (Unity Gain) Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
Max Input Level	Mic Input: +17 dBu Line Input: +30 dBu (Mono) Insert Return: +21 dBu
Output Level	XLR Main Output: +4 dBu (Nominal) +27 dBu at Max Gain Group Output: +4 dBu (Nominal) +27 dBu at Max Gain Aux Output: -2 dBu (Nominal) +21 dBu at Max Gain Matrix Output: -2 dBu (Nominal) +21 dBu at Max Gain Insert Send: -2 dBu (Nominal) +21 dBu at Max Gain Tape/Record Output: 0 dBu (Nominal) +21 dBu at Max Gain Direct Output: 0 dBu (Nominal) +21 dBu at Max Gain
EIN	-127 dBu at Max Gain (150-Ohm Input)
Noise Floor	Main Output: -89 dB (24 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz) -85 dBu (24 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
THD+N	Mic Input to Main Output: 0.004% at Unity Gain (+10 dBu, 1 kHz) Mic Input to Main Output: 0.014% at +30 dB Gain (1 kHz) Line Input to Main Output: 0.005% at Unity Gain (0 dBu, 1 kHz) Stereo Line Input to Main Output: 0.003% at Unity Gain (+10 dBu, 1 kHz)

Connectivity

Analog Inputs	1 x Stereo RCA Coaxial 2-Track Input 1 x XLR 3-Pin Balanced Talkback Input 2 x Stereo RCA Coaxial Unbalanced Aux/Line Input 24 x 1/4″ TRS Unbalanced Channel Insert 4 x 1/4″ TRS Unbalanced Subgroup Insert 2 x 1/4″ TRS Unbalanced Stereo Main Insert 1 x 1/4″ TRS Unbalanced Main Insert 24 x XLR 3-Pin Balanced Mic Input 24 x 1/4″ TRS Balanced/Unbalanced Line Input 4 x 1/4″ TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
Analog Outputs	1 x 1/4″ TRS Headphone Output 1 x 1/8″ / 3.5 mm TRS Headphone Output 1 x Stereo RCA Coaxial Unbalanced 2-Track Output 24 x 1/4″ TRS Balanced Direct Output 3 x XLR 3-Pin Balanced Main Output 4 x 1/4″ TRS Balanced Subgroup Output 2 x 1/4″ TRS Balanced Matrix Output 6 x 1/4″ TRS Balanced Mono Aux Send
Phantom Power	+48 V (Selectable on Individual Inputs)
USB	1 x USB-B 1.1()
USB I/O Capacity	2 x Input / 2 x Output
