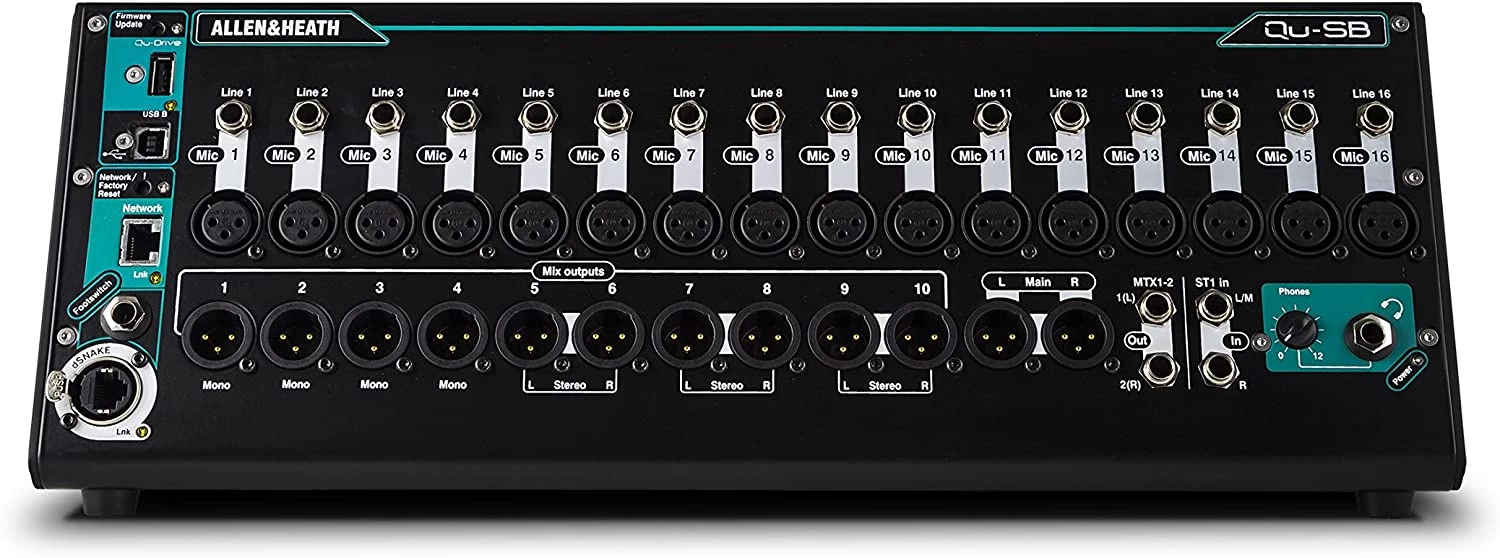

Qu-SB is an ultra-compact digital mixer which frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands and artists. Qu-SB is portable enough to carry under one arm and comes loaded with our highly acclaimed suite of FX emulations and dynamics, making it a smart replacement for an old analogue mixer and a rack full of outboard FX. The companion Qu-Pad app is a slick, intuitive interface for setting up the show and mixing live from your iPad, and there’s also a customisable Qu-Control app that lets you choose just a few essential controls that you really need in front of you for easy access during the show.
Couple these with the Qu-You personal monitoring app for Android / iOS and Qu-SB is a fantastic choice if you’re mixing your own monitors and want to get the same great sound wherever you play.
With all of your settings saved and ready, plus multi-track recording and playback of previous shows for virtual soundchecks, you’ll be all set to play in record time.
On top of the 18 on board inputs and 14 outputs, Qu-SB has you future-proofed with plug n’ play expansion up to 38 inputs / 24 outputs via a family of remote AudioRacks.
Features
-
- 16 local Mono Mic/Line Inputs (TRS + XLR)
-
- Recallable AnaLOGIQTM Preamps
-
- 1 Stereo Input (TRS)
-
- 12 local Mix Outputs (XLR)
-
- 1 Stereo Output (TRS)
-
- Expandable up to 32 input, 24 out using dSNAKE AudioRack
-
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
-
- 4 Stereo Groups (switchable to Mix mode)
-
- 4 FX Engines
-
- 4 dedicated FX Sends / Returns
-
- 4 Mute Groups
-
- 4 DCA Groups
-
- 32×32 USB Audio Interface
-
- Qu-Drive Multitrack Recording / Playback direct to USB device
-
- dSNAKETM Remote Audio Port
-
- Qu-Pad fully-featured iPad App
-
- Qu-You iPhone / Android personal monitoring app
-
- Qu-Control customisable iOS app for simple wireless control
-
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
-
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
-
- Automatic Mic Mixer
-
- Channel Ducker on all Inputs
-
- ProFactory Mic Presets
-
- RackFX Library
-
- Built-in Signal Generator
-
- RTA with Peak Band indication
-
- DAW MIDI Control
-
- Compatible with ME Personal Mixing System
-
- 19” Rack Mountable with optional rack ears
Specifications
| Number of Analog Input Channels | 16 |
| Mix Routing | 4 x Stereo FX Return |
| Groups | 4 x Mute Group 4 x DCA Group |
| Meter Range | -48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output) |
| Meter Calibration | 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output) |
| Gain/Trim Range | Line: ±24 dB (Stereo Channels) Mic/Line: -5 dB to +60 dB (in 1 dB Steps) |
| Input Polarity | Normal/Reverse |
| Gate Parameters | Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec |
| Compressor Parameters | Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 300 μs to 300 ms Release: 100 ms to 2 sec Knee: Soft / Hard |
| EQ | FX Returns: 4-Band Parametric |
| EQ Parameters | 1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) |
| Graphic EQ | 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz |
| Filters | High-Pass: 20 Hz to 20 kHz, 12 dB/Octave |
| Channel Output/Source Monitoring | AFL, PFL, Post-Preamp, Post-EQ, Post-FX |
| Built-In Effects | Reverb Delay Reverb (Gated) ADT Chorus Phaser Flanger |
| Real Time Analyzer | 31-Band 1/3 Octave, 20 Hz to 20 kHz |
| Audio Delay | Adjustable Up to 170 ms |
| Sample Rates | 48 kHz Stereo Record: 48 kHz Stereo Playback: 44.1 / 48 kHz Multitrack Record: 48 kHz Multitrack Playback: 48 kHz |
| Bit Depth | AD/DA Conversion: 24-Bit Delta Sigma Stereo Record: 24-Bit Stereo Playback: 16 / 24-Bit Multitrack Record: 24-Bit Multitrack Playback: 24-Bit |
| Latency | 1.2 ms (Mic Input to XLR Output) 0.7 ms (Mic Input to AES Output) |
| dBFS Reference Level | +18 dBu = 0 dBFS |
| Headroom | +18 dB |
| Frequency Response | 20 Hz to 20 kHz +0/-0.5 dB |
| Max Input Level | Mic Input: +19 dBu Line Input: +29 dBu Aux Input: +22 dBu (+4 dBu) +18 dBu (0 dBu) |
| Output Level | Aux Output: +22 dBu (Max) +4 dBu (Nominal) Line Output: +22 dBu (Max) +4 dBu (Nominal) |
| Analog Dynamic Range | 112 dB |
| I/O Impedance | Aux Input: > 7 Kilohms Aux Output: < 75 Ohms XLR Line Output: < 75 Ohms XLR Mic/Line Input: > 5 Kilohms 1/4″ Mic/Line Input: > 10 Kilohms |
| Noise Floor | -90 dBu (with Inputs Muted) |
| THD+N | Mic/Line Input: 0.0005% at Unity Gain 0.001% at +30 dB Gain |
| Signal Generator | Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix) |
| Analog Inputs | 1 x XLR Talkback Input 16 x XLR Balanced Mic Input 16 x 1/4″ TRS Balanced Line Input 2 x 1/4″ TRS Balanced Aux Input (1 Stereo Pair, Half-Normalled) |
| Analog Outputs | 10 x XLR Balanced Mix Output 2 x XLR Balanced Main Output 2 x 1/4″ TRS Balanced Output (1 Stereo Pair) |
| Digital I/O | 1 x RJ45 (Network) 1 x etherCON dSNAKE (I/O) |
| USB | 1 x USB-A (External Memory) 1 x USB-B 2.0 (Audio Streaming) |
| Max Multitrack Recording | 18 Tracks |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 150 W (Maximum) |
| Rackmount Size | 4 RU |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Dimensions | 17.1 x 6.9 x 6.3″ / 435.5 x 174.5 x 161 mm (Desk-Mounted) 19 x 5.3 x 7″ / 483 x 135.4 x 177 mm (Rack-Mounted) |
| Weight | 12.7 lb / 5.8 kg |
| Package Weight | 13.6 lb |
| Box Dimensions (LxWxH) | 21.6 x 10.3 x 10.2″ |
