Description

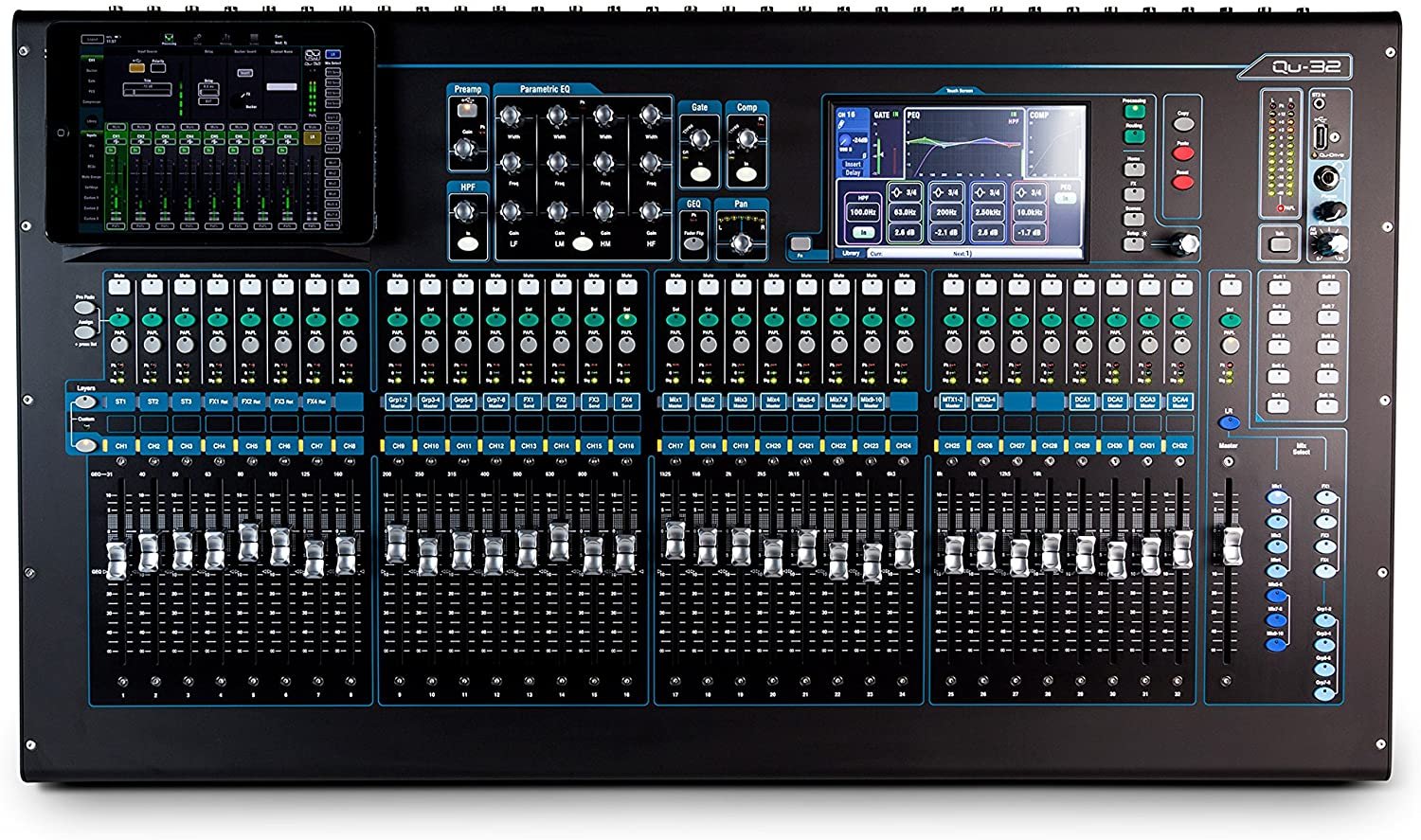

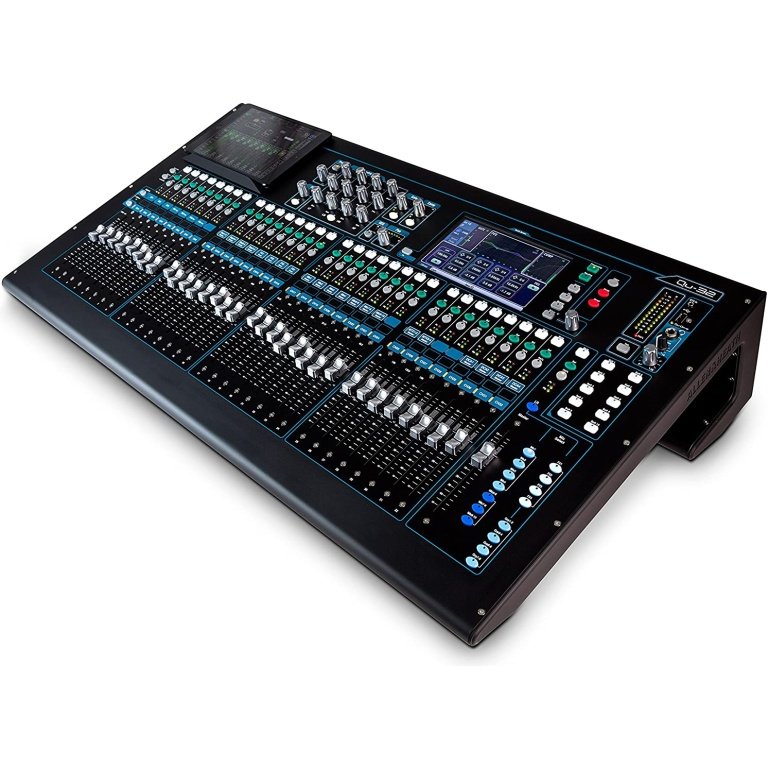

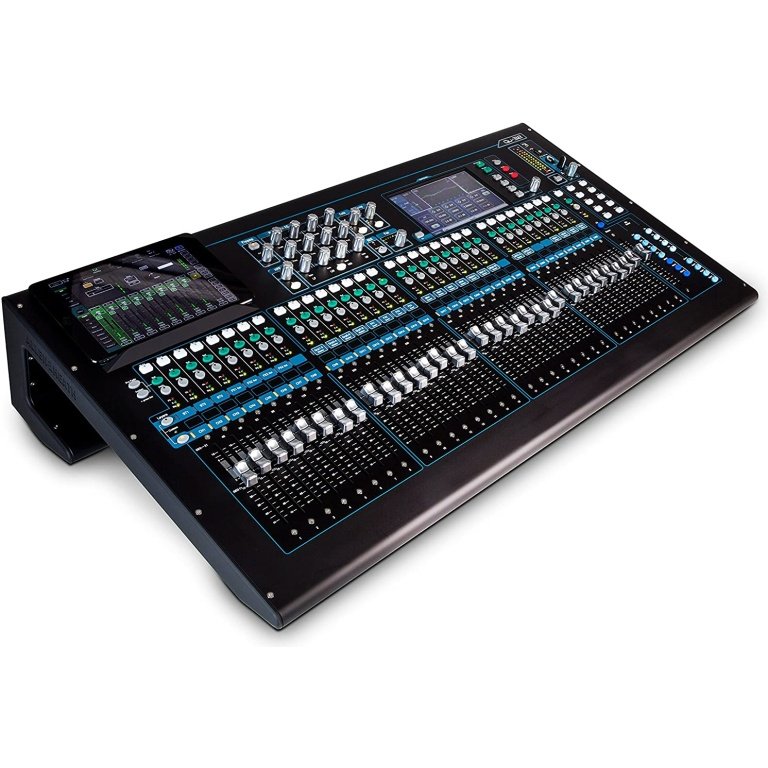

Qu-32 features thirty-two AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, and are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles. Having massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat. The 800×480, True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-32’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip – a set of single function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan. The screen overview also follows the control being turned.



Features

    • 32 Mono Mic/Line Inputs (TRS + XLR)
    • Recallable AnaLOGIQTM Preamps
    • 3 Stereo Inputs (TRS)
    • 24 Mix Outputs (XLR)
    • 4 Stereo Groups (switchable to Mix mode)
    • Up to 11 Monitor Mixes (4 mono + 7 stereo)
    • 2 Stereo Matrix Outs
    • 4 FX Engines
    • 4 dedicated FX Sends / Returns
    • 4 Mute Groups
    • 4 DCA Groups
    • AES Digital Out
    • 32×32 USB Audio Interface
    • dSNAKETM Remote Audio Port
    • 33 Motor Faders
    • 7” Touchscreen
    • 10 Soft Keys
    • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
    • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
    • Automatic Mic Mixer
    • Channel Ducker on all inputs
    • ProFactory Mic Presets
    • RackFX Library
    • Built-in Signal Generator
    • RTA with Peak Band indication
    • Spectrogram to aid feedback elimination and room acoustics
    • Automatic Mic Mixer
    • Qu-Drive Direct Multitrack Recording / Playback on USB drives
    • DAW MIDI Control
    • Qu-Pad iPad App
    • Qu-You iPhone / Android personal monitoring app
    • Qu-Control customisable iOS app for simple wireless control
    • Compatible with ME Personal Mixing System
    • High contrast metallic finish controls, matching premium GLD Chrome series



Specifications

Mixer
Number of Analog Input Channels 32
Number of Mic Preamps 32
Number of Analog Output Channels 24
Max I/O Capacity 32 x Input / 24 x Output
Mix Routing 4 x Stereo FX Return
Groups 4 x Mute Group
4 x DCA Group
Presets Yes
Display 7″ Touchscreen
Display Resolution/Color Main Display:
800 x 480
Faders & Level Adjustment 33 x 3.9″ / 100 mm Motorized Fader
Meter Range -48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range Line:
±24 dB (Stereo Channels)
Line/Mic:
-10 dB to +60 dB (in 1 dB Steps)
Input Polarity Normal/Reverse
Dynamic Processing Compressor, Gate
Gate Parameters Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters Threshold: -46 to 18 dBu
Ratio: 1:1 to ∞:1
Attack: 300 μs to 300 ms
Release: 100 ms to 2 sec
Knee: Soft / Hard
EQ FX Returns:
4-Band Parametric
EQ Parameters 1 x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2 x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1 x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters High-Pass: 20 Hz to 20 kHz, 12 dB/Octave
Solo/Mute Solo, Mute per Input Channel, Master
Channel Output/Source Monitoring AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects Reverb
Delay
Reverb (Gated)
ADT
Chorus
Phaser
Flanger
Real Time Analyzer 31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay Adjustable Up to 170 ms
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 48 kHz
AES3 Output:
48 kHz
Stereo Record:
48 kHz
Stereo Playback:
44.1 / 48 kHz
Multitrack Record:
48 kHz
Multitrack Playback:
48 kHz
Bit Depth AD/DA Conversion:
24-Bit Delta Sigma
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Record:
24-Bit
Multitrack Playback:
24-Bit
Latency 1.2 ms (Mic Input to XLR Output)
0.7 ms (Mic Input to AES Output)
Performance
dBFS Reference Level +18 dBu = 0 dBFS
Headroom +18 dB
Frequency Response 20 Hz to 20 kHz +0/-0.5 dB
Max Input Level Aux Input:
+22 dBu
Mic Input:
+19 dBu
Line Input:
+29 dBu
Output Level Line Output:
+22 dBu (2901653168)
+4 dBu (2901653169)
Stereo Output:
+22 dBu (2901653168)
+4 dBu (2901653169)
Analog Dynamic Range 112 dB
I/O Impedance 1/4″ Stereo Output:
< 75 Ohms
AES3 Output:
110 Ohms
Aux Input:
> 7 Kilohms
XLR Line Output:
< 75 Ohms
XLR Line/Mic Input:
> 5 Kilohms
1/4″ Line/Mic Input:
> 10 Kilohms
Noise Floor -90 dBu (with Inputs Muted)
THD+N Mic/Line Input:
0.0005% at Unity Gain
0.001% at +30 dB Gain
Signal Generator Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)
Connectivity
Analog Inputs 1 x XLR Talkback Input
32 x XLR Balanced Mic Input
32 x 1/4″ TRS Balanced Line Input
4 x 1/4″ TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)
1 x 1/8″ / 3.5 mm Unbalanced Aux Input
Analog Outputs 10 x XLR Balanced Mix Output
2 x XLR Balanced Main Output
4 x XLR Balanced Subgroup Output
4 x XLR Balanced Matrix Output
4 x 1/4″ TRS Balanced Aux Output (2 Stereo Pairs)
Phantom Power +48 V
Digital I/O 1 x RJ45 (Network)
1 x XLR AES3 Output
1 x etherCON dSNAKE (I/O)
MIDI I/O None
USB 1 x USB-A (External Memory)
1 x USB-B 2.0 (Audio Streaming)
Expansion Ports None
Wireless Wi-Fi
*Built-In
Mobile App Compatible Yes: Android & iOS
App Name: Qu Pad & Qu You
Functionality: Remote Control
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Recording
Max Multitrack Recording 18 Tracks
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC Input
Power Consumption 150 W (Maximum)
Physical
Rack Mountable No
Operating Temperature 32 to 95°F / 0 to 35°C
Dimensions 33.5 x 19.7 x 7.4″ / 850 x 500 x 186 mm
Weight 44 lb / 20 kg
Packaging Info
Package Weight 48.45 lb
Box Dimensions (LxWxH) 39 x 26 x 13″
