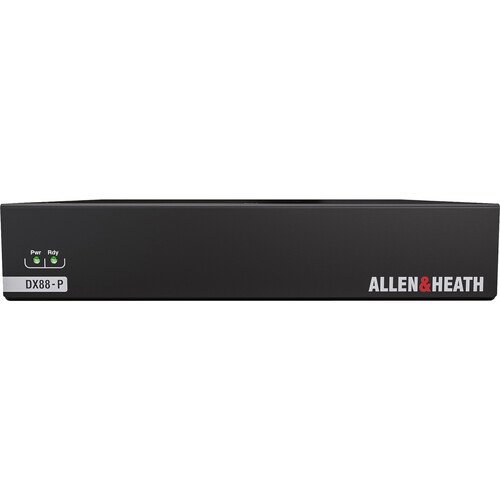

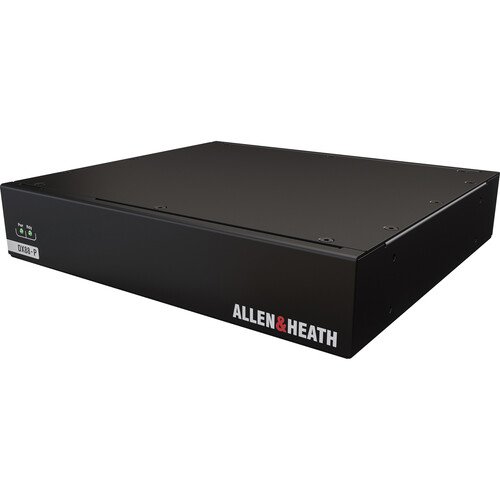

Allen & Heath DX88-P is a compact 96kHz DX expander offering 8 mic/line inputs and 8 line outputs via Phoenix / Euroblock connectors. Designed for fixed installations, it supports recallable gain (+5 to +60dB), phantom power, and -20dB pad per input. The unit connects via Cat5e to dLive, SQ, Avantis, or AHM systems and supports cascade mode for daisy-chaining. A second RJ45 port enables downstream expansion. Optional rack kits allow dual-unit mounting or integration with DX Hub / GPIO modules. Ideal for AV switchers, wall plates, and distributed I/O zones.
FEATURES

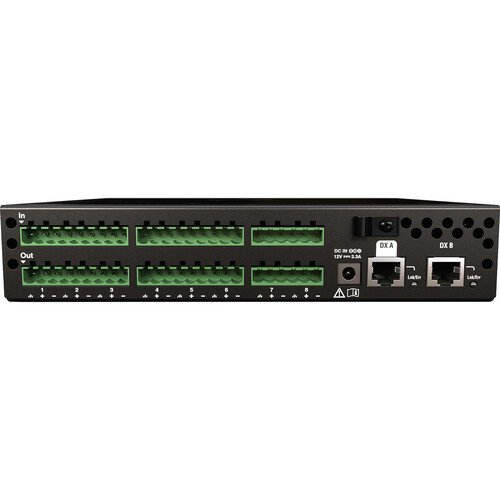

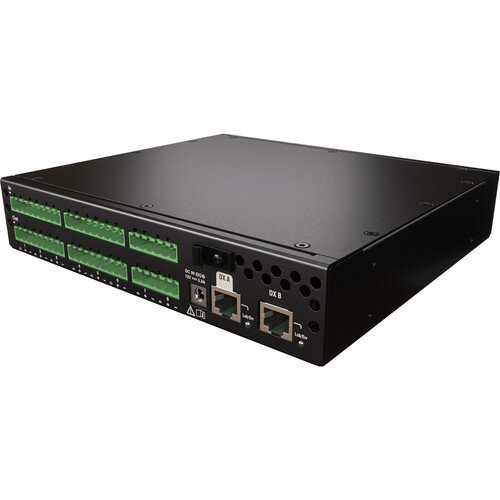

- 8 × Phoenix mic/line inputs with gain, phantom, and pad
- 8 × Phoenix line outputs
- Cascade mode for daisy-chaining DX units
- Dual RJ45 ports (DX A / DX B)
- Plug-and-play setup with automatic firmware updates
- Optional rackmount kit for dual-unit 1U install
- Up to 100m cable length via Cat5e or higher
- Compatible with dLive, SQ, Avantis, AHM systems
SPECIFICATIONS
| Model | DX88-P |
| Brand | Allen & Heath |
| Series | DX |
| Category | Remote I/O Expander |
| Inputs | 8 × Phoenix (Mic/Line) |
| Outputs | 8 × Phoenix (Line) |
| Gain Range | +5 to +60dB |
| Pad | -20dB |
| Phantom Power | +48V |
| Ports | 2 × RJ45 (DX A / DX B) |
| Mounting | Half Rack (Optional 1U Kit) |
| Compatibility | dLive / SQ / Avantis / AHM |
| Warranty | 1 Year Manufacturer Warranty |
| GTIN | 6938122243759 |
