AKG WMS470 D5 Wireless Mic Set SR470 Receiver, HT470/D5 Handheld, 50mW Output, Rack Mount Kit Included

AKG Wireless handheld microphone system, SR470 stationary receiver, HT470/D5 handheld transmitter, D5 microphone element, pilot tone, microphone stand, LR6 AA battery,power supply and rack mount unit included, WMS470 D5 SET BD10-50MW is a wireless radio system with an SR470 receiver and a handheld transmitter with a dynamic D5 capsule (826.300 MHz to 831.900 MHz), incorporates a number of upgrades from previous AKG lines and provides outstanding performance and reliable user experience. The system’s automatic frequency tuning feature instantly finds and displays all available channels, making the system easy for even the most experienced users. The presence of the pilot tone function prevents unwanted power-on noises: the receiver will only open the audio channel after the pilot tone of the transmitter is detected. The AKG WMS470 D5 SET BD M works with 16 channels simultaneously in the same frequency band and with 48 channels using multiple frequency bands. Transmitters are powered by a single alkaline, lithium or Ni-MH removable battery, providing up to 14 hours of lithium battery life.In addition, the AKG WMS470 D5 SET BD M has a built-in dipole antenna for reliable transmission with a power output of 50 mW.

FEATURES

• Half 19” all metal case diversity receiver
• Automatic frequency setup
• Up to 16 pre-programmed frequencies within the same frequency band.
• Pilot Tone prevents unexpected start-up noise
• Infrared link of all frequency and setup data to the transmitter
• Up to 14 hours battery life and battery status information in hours
• Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
• Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas

SPECIFICATIONS

System Overview

• Model: WMS470 D5 SET BD1-50?MW
• Components Included:

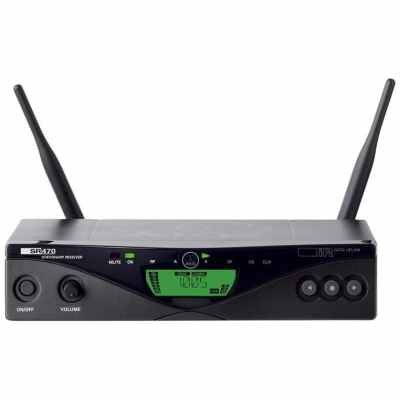

  • SR470 stationary (rack-mount) receiver
  • HT470 handheld transmitter with D5 dynamic capsule
  • Microphone stand adapter
  • LR6 AA battery (alkaline, lithium, or Ni?MH)
  • Power supply (with plug adapters)
  • Rack-mount kit and two BNC UHF antennas
  • Pilot tone system to prevent unwanted switch-on noise

Power & Battery

• Transmitter Battery:
  • AA-size battery (alkaline/lithium/Ni?MH)
  • Up to 14?h battery life with lithium AA
  • 7?h (alkaline), 8?h (rechargeable)
• Transmit Power: 50?mW ERP (country dependent)

Radio & Frequency

• Frequency Range (BD1): 650.1 – 680.0?MHz (unlicensed band)
• Switching Bandwidth: 30.5?MHz
• Up to 16 channels per band, 48 channels across multiple bands
• Modulation: Wideband FM

Audio Performance

• Microphone Capsule: D5 dynamic, supercardioid
• Frequency Response: 35?Hz – 20?kHz
• Signal-to-Noise Ratio (S/N): ~120?dB?A
• Max SPL: up to 144?dB SPL
• THD: ~0.3% (receiver), ~0.7% (transmitter)

Receiver (SR470) Specs

• Diversity Receiver: space/microprocessor controlled
• Audio Outputs: 1?×?XLR (balanced), 1?×?6.3?mm TRS (unbalanced)
• Sensitivity: –100?dBV @ 1?m
• Power Consumption: ~50?mW
• Form Factor: 1U half-rack metal chassis, includes rack mount kit

Physical Dimensions & Weight

• Receiver (SR470): ~202?×?44?×?190?mm; ~0.97?kg
• Transmitter (HT470): ~237?mm × 51?mm; ~240?g (without battery)

Features & Extras

• Automatic Frequency Tuning: Quick preset scan with channel preview
• Pilot Tone: Prevents noise and transmits battery status
• Infrared Sync: Easy transmitter–receiver pairing
• Programmable LED Warnings: Low battery/audio peak indicators
• Compatibility: Works with WMS4500/WMS4000 accessories and HUB4000Q
