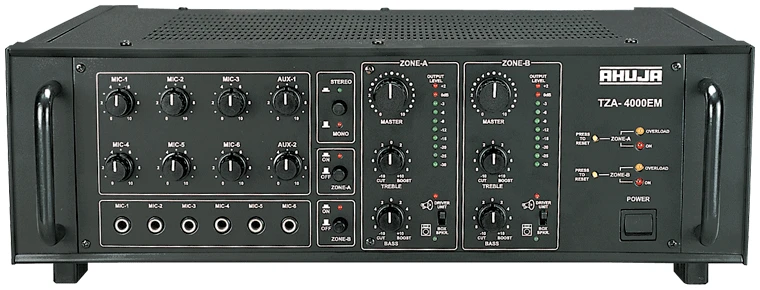

TZA-4000®EM 400 WATTS 2 ZONE PA MIXER AMPLIFIER 6 Mic & 2 Aux Inputs. ‘Stereo’ Music Operation for DJ programmes. Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship. Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording. Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility. Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
FEATURES
- 6 Mic & 2 Aux Inputs: This mixer amplifier features 6 Mic & 2 Aux Inputs for maximum sound flexibility.
- ‘Stereo’ Music Operation for DJ programmes: The ‘Stereo’ Music Operation feature allows for DJ programmes to be played.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively: This mixer amplifier features Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone: The Box Speaker/Driver Unit selector switch allows for each zone to be adjusted for maximum sound quality.
- Resettable circuit breaker for protection against overload and short circuit: The resettable circuit breaker ensures protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails: This mixer amplifier has an instant transfer to DC power (Car Battery) if AC power fails.
SPECIFICATIONS
| Power Output | 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 6 × Mic 0.6mV/4.7k?, 2 × Aux 100mV/470k?, Stereo L/R 200mV/100k?, Line L/R 1V/50k? |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600?, Line 1V/1k? |
| Speaker Outputs | 4?, 8?, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 700VA DC: 9A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 24.2kg |
