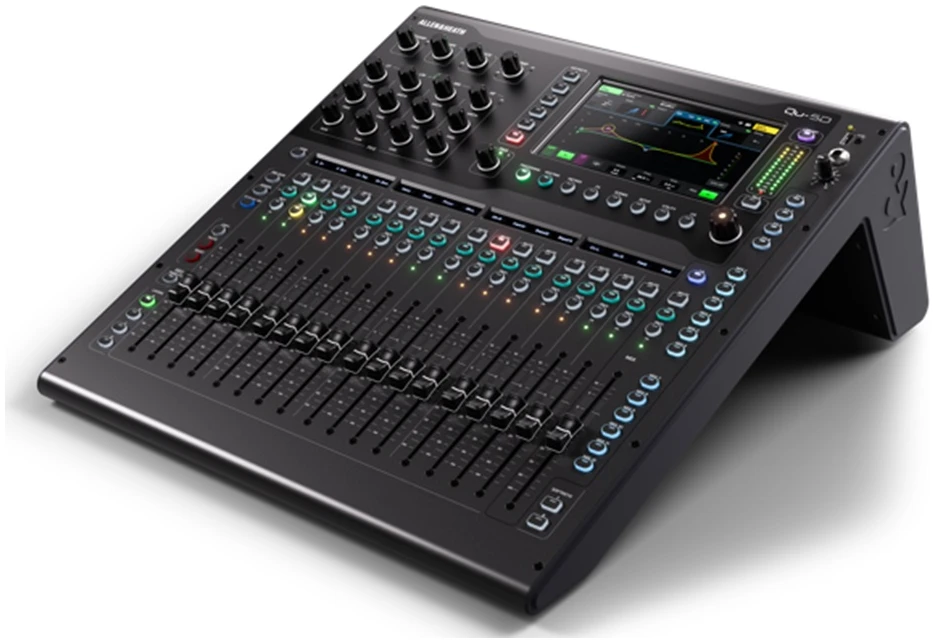

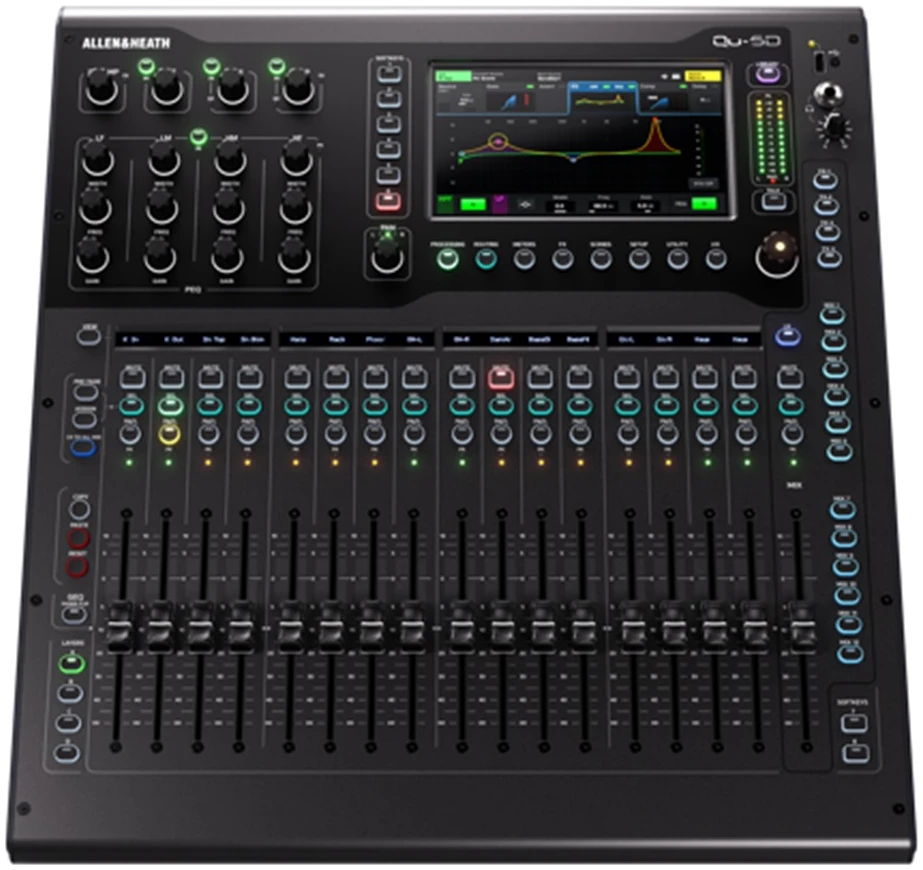

Allen & Heath QU-5D is a compact 38-in / 24-out digital mixer with integrated Dante networking, powered by the 96kHz XCVI core. It features 17 motorized faders, 16 digitally controlled mic preamps, and a 7″ capacitive touchscreen with redesigned UI. The mixer includes six Multi-FX engines, 32×32 USB-C audio interface, 16×16 Dante interface, and SD card multitrack support. With DEEP Processing, Gain Assistant, Feedback Assistant, and AMM, QU-5D is ideal for touring, broadcast, and hybrid AV setups requiring high-resolution audio and Dante integration.
FEATURES
- 38 input channels / 24 output buses
- 17 × 100mm motorized faders
- 16 × XLR/Combo mic/line inputs
- 12 × XLR outputs
- 7″ capacitive touchscreen with redesigned UI
- 6 × Multi-FX engines with dedicated returns
- 32×32 USB-C audio interface
- 16×16 Dante interface (48/96kHz)
- SD card multitrack recording/playback
- SLink port for Everything I/O expanders
- DEEP Processing, Gain Assistant, Feedback Assistant
- Rackmountable (optional kit)
SPECIFICATIONS
| Model | QU-5D |
| Brand | Allen & Heath |
| Series | QU |
| Category | Digital Mixer |
| Inputs | 38 (16 Mic/Line + Digital + USB) |
| Outputs | 24 (12 XLR + Digital + USB) |
| Faders | 17 × Motorized |
| Touchscreen | 7″ Capacitive |
| Dante | 16×16 @ 48/96kHz |
| USB Interface | 32×32 USB-C |
| SD Recording | 32-channel Multitrack |
| FX Engines | 6 |
| Dimensions | 440 × 476 × 211 mm |
| Weight | 10 kg |
| Warranty | 3 Year Manufacturer Warranty |
| GTIN | 6938122243827 |
